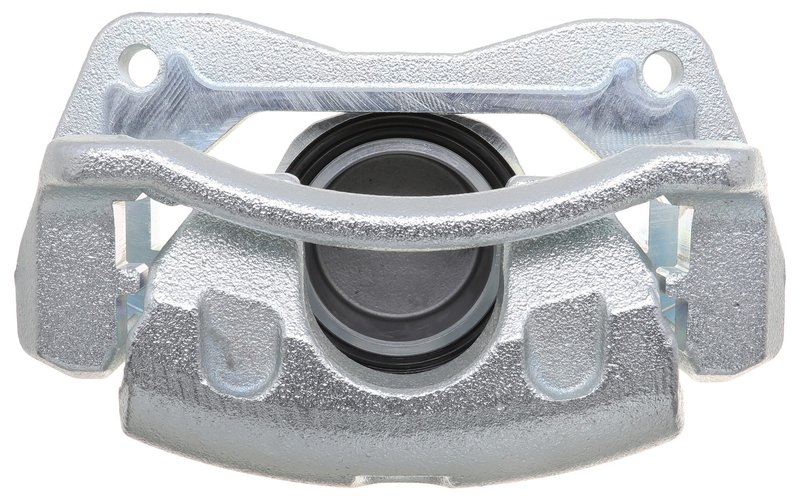

Raybestos FRC13342N Disc Brake Caliper - Front Left
| Brand | Raybestos FRC13342N |
|---|---|
| Position | Front Left |
| Caliper Casting Material | Cast iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Mounting Bracket Included | Yes |
| Bleeder Screw Thread | M10x1.00 |
| Caliper Bracket Mounting Hole Size | 12 |
| Caliper Bracket Mounting Hole Thread Pitch | 1.25 |
| Caliper Bracket Surface Finish | Coated |
| Caliper Configuration | Friction ready |
| Caliper Piston Diameter | 2.500 |
| Caliper Piston Diameter | 63.500 |
| Caliper Piston Diameter A | Na |
| Caliper Piston Diameter B | Na |
| Casting Number 1 | 63.5 l 325 mando |
| Friction Material | Na |
| Manufacturing Type | New |
| Surface Finish | Coated |
| Product line | Raybestos Element 3 |
| Fits | Hyundai · 2 vehicles |
OE direct replacement. Floating disc brake caliper with a mounting bracket included.
Cast iron construction. Coated finish helps resist corrosion and wear.
Friction ready. Built for a 1-piston setup with a 2.500-inch piston diameter.
Cross-references 19B7401 and 581804ZA70 for the same application. See all 2.
Raybestos Element 3 Front Left Caliper
The Raybestos Element 3 FRC13342N is a front left disc brake caliper for 2017-2018 Hyundai Santa Fe Sport applications. Built as a floating caliper with a cast iron body and coated surface finish, it supports consistent brake pad movement and dependable hydraulic operation for the front axle.
Key Features
- Raybestos Element 3 brake hydraulics product line
- Part number FRC13342N
- Fits 2017-2018 Hyundai Santa Fe Sport, front left
- Floating caliper design with one piston
- Cast iron caliper casting material
- 2.500 in. / 63.500 mm piston diameter
- Mounting bracket included
- Friction ready configuration
- Coated caliper and bracket surface finish
- Bleeder screw thread: M10x1.00
Raybestos Element 3 focuses on brake hydraulic replacement parts built for direct-fit service needs. For this application, FRC13342N combines a floating caliper layout with a 63.5 mm piston and a coated finish to support corrosion resistance and stable braking performance on the Hyundai Santa Fe Sport front left position. This part cross-references OE-style numbers 19B7401 and 581804ZA70 for the same application.
What This Caliper Helps Address
- Uneven or weak front brake clamping on the left side
- Sticking or seized caliper movement
- Brake fluid leakage at the caliper assembly
- Brake pad drag caused by worn hydraulic components
- Corrosion on the caliper body or bracket
Installation Notes
Verify the vehicle is a 2017-2018 Hyundai Santa Fe Sport with front left caliper application before ordering. Confirm the bleeder screw thread is M10x1.00 and the bracket mounting hole specifications match the original setup. Inspect brake hoses, pads, rotors, and mounting surfaces during installation to ensure proper caliper operation and even pad contact.
Quality Assurance
Raybestos Element 3 brake hydraulics are built as new replacement components for service applications that require direct-fit geometry and consistent fitment. FRC13342N is manufactured with a coated finish and cast iron construction to support long-term brake system service on the specified Hyundai Santa Fe Sport fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe Sport | Front Left | Raybestos Element 3 |
| 2017 | Hyundai | Santa Fe Sport | Front Left | Raybestos Element 3 |
