Home› Brake > Hardware, Fasteners and Fittings› Raybestos H1111 Drum Brake Shoe Spring Hold Down Pin - Front or Rear
Raybestos H1111 Drum Brake Shoe Spring Hold Down Pin - Front or RearOE Quality 60-Day Returns
Part #: H1111

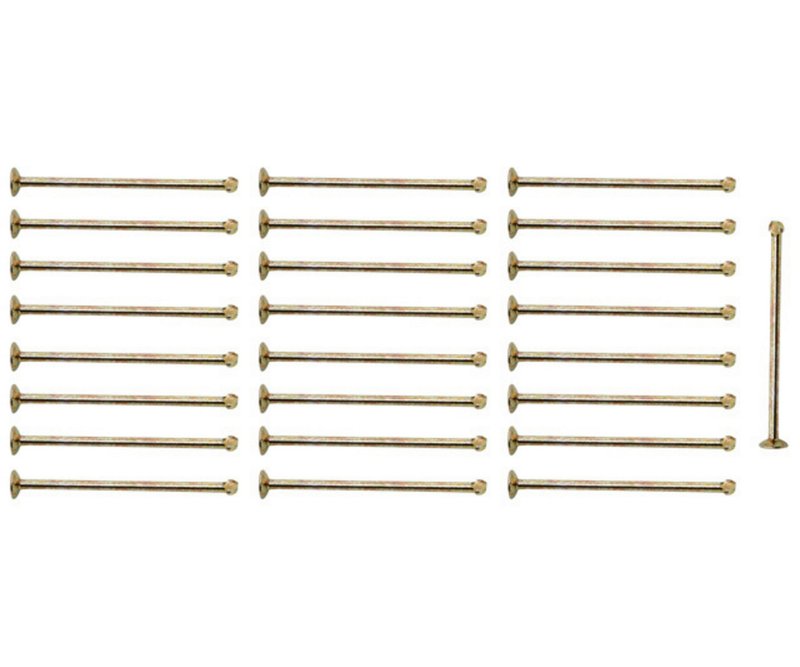

Raybestos H1111 Drum Brake Shoe Spring Hold Down Pin - Front or Rear

R-Line, Rear
⚙️ 21 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$21.49Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦R-Line, Rear
🚗Fitment: Chevrolet, GMC, and Lincoln, C20, C20 Suburban, C30, G30, K20, K20 Suburban, P20, C25, C25 Suburban, C35, G35, K25, K25 Suburban, P25, C20 Pickup, C30 Pickup, G30 Van, K20 Pickup, C25/C2500 Pickup, C25/C2500 Suburban, C35/C3500 Pickup, G35/G3500 Van, K25/K2500 Pickup, K25/K2500 Suburban, P25/P2500 Van, P30 Van, P35/P3500 Van, and Continental
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Drum Brake Shoe Spring Hold Down Pin options

Reliable Drum Brake Shoe Spring Hold Down Pin for Chevrolet and Lincoln

The Raybestos R-Line Drum Brake Shoe Spring Hold Down Pin (Part Number H1111) is designed to provide secure and consistent brake shoe retention for select Chevrolet and Lincoln models. This component ensures proper brake function and safety by maintaining spring tension within the drum brake assembly.

  • Compatible with Chevrolet C20, C20 Suburban, C30, K20, K20 Suburban, P20, and Lincoln Continental, G30 models
  • Part Number H1111 for precise identification and fitment
  • Durable construction to withstand brake system stresses
  • Essential for maintaining proper drum brake shoe spring tension
  • Manufactured by Raybestos under the R-Line product line

About the Raybestos R-Line Product Line

The R-Line by Raybestos represents a focused range of brake hardware components engineered for reliable performance and fitment. This product line emphasizes quality materials and design to meet the demands of drum brake systems in various vehicle applications, including Chevrolet and Lincoln trucks and SUVs. The R-Line Drum Brake Shoe Spring Hold Down Pin is part of this series, ensuring compatibility and durability for your brake hardware needs.

Product Description and Application

The Raybestos R-Line Drum Brake Shoe Spring Hold Down Pin (H1111) is a critical component in the drum brake assembly, responsible for holding the brake shoe springs securely in place. This pin helps maintain the correct spring tension, which is vital for consistent brake shoe retraction and overall brake performance. Designed specifically for Chevrolet C20, C20 Suburban, C30, K20, K20 Suburban, P20, and Lincoln Continental and G30 models, this part ensures a precise fit and reliable operation within these vehicles' braking systems.

Common Issues Addressed by This Part

  • Brake shoe springs slipping or becoming loose
  • Uneven brake shoe wear due to improper spring tension
  • Brake noise caused by loose hardware
  • Reduced braking efficiency from hardware failure
  • Difficulty in brake shoe retraction after pedal release

Installation Notes and Tips

  • Ensure compatibility with your specific Chevrolet or Lincoln model before installation
  • Inspect all brake hardware components for wear and replace as necessary
  • Use proper tools to avoid damaging the hold down pin or brake shoes
  • Follow vehicle manufacturer torque specifications for hardware installation
  • Test brake operation after installation to confirm proper function

Quality Assurance and Warranty

Raybestos manufactures the R-Line Drum Brake Shoe Spring Hold Down Pin (H1111) to meet industry standards for durability and performance. While specific warranty details are not provided, Raybestos products typically undergo rigorous quality control to ensure reliability in automotive brake systems.

This part fits 21 vehicles. Search below:

YearMakeModelPositionNotes
1975ChevroletC20RearFits 13 inch drum brakes.; R-Line
1975ChevroletC20 SuburbanRearFits 13 inch drum brakes.; R-Line
1975ChevroletC30RearR-Line
1975ChevroletG30RearR-Line
1975ChevroletK20RearFits 13 inch drum brakes.; R-Line
1975ChevroletK20 SuburbanRearFits 13 inch drum brakes.; R-Line
1975ChevroletP20RearFits 13 inch drum brakes.; R-Line
1975GMCG35RearR-Line
1974ChevroletC20 SuburbanRearFits 13 inch drum brakes.; R-Line
1974ChevroletK20 SuburbanRearFits 13 inch drum brakes.; R-Line
1974GMCG35/G3500 VanRearFits 13 inch drum brakes.; R-Line
1973ChevroletC20 SuburbanRearFits 13 inch drum brakes.; R-Line
1973ChevroletK20 SuburbanRearFits 13 inch drum brakes.; R-Line
1973GMCG35/G3500 VanRearFits vehicles with 13 IN x 2-1/2 IN brake systems.; R-Line
1972ChevroletK20 SuburbanRearFits 13 inch drum brakes.; R-Line
1972GMCG35/G3500 VanRearFits vehicles with 13 IN x 2-1/2 IN brake systems.; R-Line
1971GMCG35/G3500 VanRearFits vehicles with 13 IN x 2-1/2 IN brake systems.; R-Line
1959LincolnContinentalFrontR-Line
1959LincolnContinentalRearR-Line
1958LincolnContinentalFrontManual Adjusting Brakes.; R-Line
1958LincolnContinentalRearManual Adjusting Brakes.; R-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

11112711118-6211AB13BP1111BP69F35020F35020SH1111H1111-2HX1111LF2069A

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
