Home› Raybestos H1134K Drum Brake Shoe Spring Hold Down Pin - Front or Rear
Raybestos H1134K Drum Brake Shoe Spring Hold Down Pin - Front or RearOE Quality 60-Day Returns
Part #: H1134K

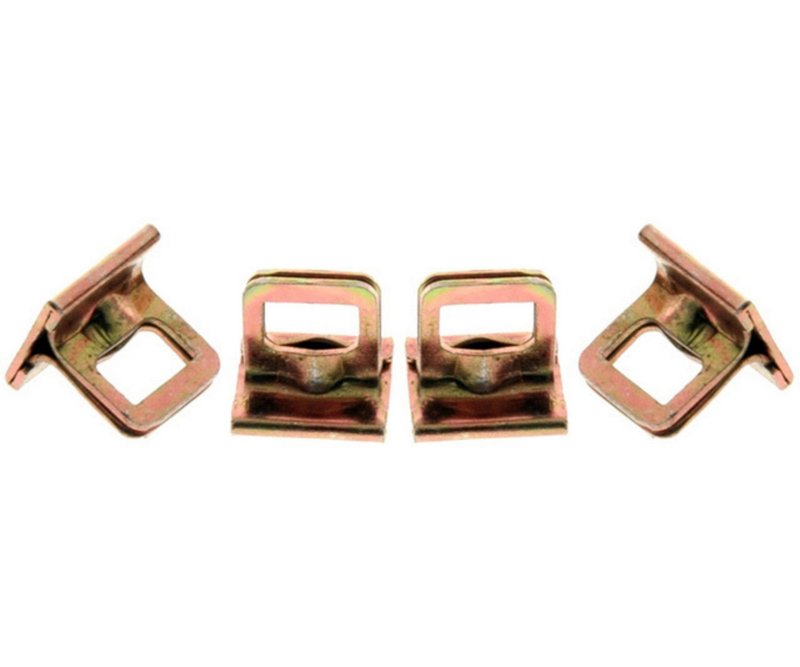

Raybestos H1134K Drum Brake Shoe Spring Hold Down Pin - Front or Rear

R-Line, Front
22 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$27.26Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
R-Line, Front
Fitment: American Motors, Dodge, Plymouth, Ford, and Mercury, Gremlin, Hornet, Javelin, Rambler, Rebel, American, Dart, Barracuda, Valiant, Classic, Falcon Sedan Delivery, Ranchero, Comet, Cyclone, Villager, Lancer, and Falcon
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Drum Brake Shoe Spring Hold Down Pin options

Reliable Drum Brake Shoe Spring Hold Down Pin for Dodge and Mercury

The Raybestos R-Line H1134K is a drum brake shoe spring hold down pin designed specifically for select Dodge and Mercury vehicles. This part ensures secure attachment of brake shoe springs, maintaining proper brake function and safety.

  • Compatible with Dodge Dart, Mercury Lancer, and Mercury Villager models
  • Part number H1134K for precise identification
  • Manufactured by Raybestos under the R-Line product line
  • Durable construction for consistent brake performance
  • Essential component for drum brake hardware assembly

About the Raybestos R-Line Product Line

The R-Line by Raybestos represents a focused range of brake hardware components engineered to meet the demands of professional automotive repair. This product line emphasizes reliable fitment and durability, providing technicians with parts that align with original equipment specifications. The H1134K hold down pin is part of this line, ensuring compatibility and performance for drum brake systems on Dodge and Mercury vehicles.

Detailed Product Description

The H1134K drum brake shoe spring hold down pin is a critical fastener within the brake hardware assembly. It secures the brake shoe springs in place, preventing movement that could lead to uneven brake wear or failure. Designed for use on Dodge Dart, Mercury Lancer, and Mercury Villager models, this pin matches OEM specifications to maintain proper brake system integrity. Its robust construction supports consistent brake shoe positioning, contributing to safe and effective braking performance.

Common Applications and Issues Addressed

  • Prevents brake shoe spring displacement during operation
  • Eliminates brake noise caused by loose hardware
  • Reduces uneven brake shoe wear and premature component failure
  • Maintains proper brake shoe alignment for consistent stopping power
  • Replaces worn or damaged hold down pins in drum brake assemblies

Installation Notes and Tips

When installing the H1134K hold down pin, ensure the brake shoe springs are properly seated before securing the pin. Use appropriate brake hardware tools to avoid damage during installation. Verify compatibility with your specific Dodge Dart, Mercury Lancer, or Mercury Villager model year and brake system configuration. Inspect other brake hardware components for wear and replace as necessary to maintain overall brake system reliability.

Quality Assurance and Warranty

Raybestos manufactures the H1134K hold down pin to meet stringent quality standards, ensuring durability and fitment accuracy. While specific warranty details are not provided, Raybestos products typically adhere to industry quality controls to support professional repair needs.

This part fits 22 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
1968DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1968DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1967DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1967DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1966DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1966DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1965DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1965DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1964DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1964DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1964MercuryVillagerBaseFrontFits models with 9-inch drum brakes.; R-Line
1964MercuryVillagerBaseRearR-Line
1963DodgeDartFrontFits models with 9-inch drum brakes.; R-Line
1963DodgeDartRearFits models with 9-inch drum brakes.; R-Line
1963MercuryVillagerBaseFrontFits models with 9-inch drum brakes.; R-Line
1963MercuryVillagerBaseRearR-Line
1962DodgeLancerFrontR-Line
1962DodgeLancerRearR-Line
1962MercuryVillagerBaseFrontR-Line
1962MercuryVillagerBaseRearR-Line
1961DodgeLancerFrontR-Line
1961DodgeLancerRearR-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

0207267503201954075-038113420726752711343201954400113454718248-6223AB34BP1134BP14C0DD2066AF34820F34820SH1134H1134-2H1134BH1134DPHW1134HW1134-10HX1134

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
