Raybestos H1160 Drum Brake Shoe Hold Down Spring - RearOE Quality 60-Day Returns
Part #: H1160

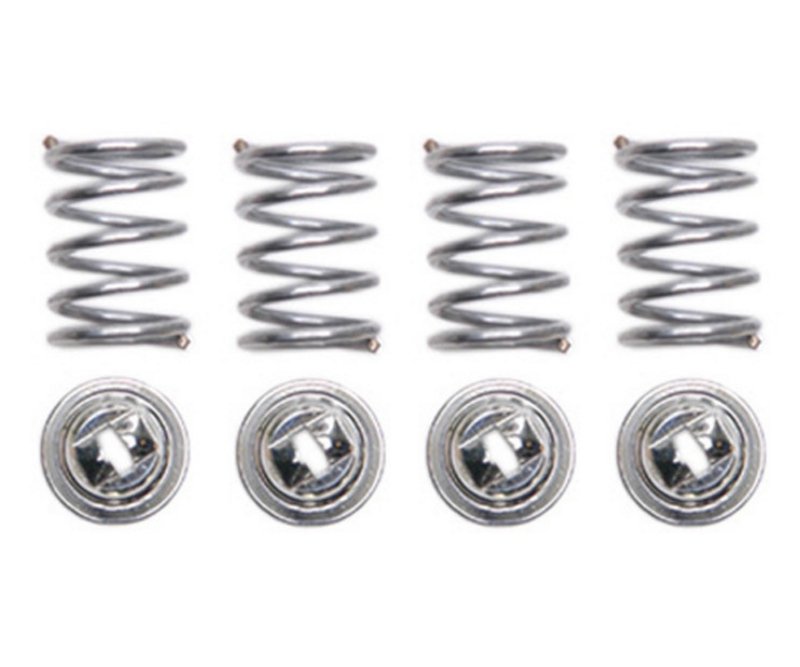

Raybestos H1160 Drum Brake Shoe Hold Down Spring - Rear

R-Line, Rear
⚙️ 196 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$21.55Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦R-Line, Rear
🚗Fitment: Dodge, Jeep, Chrysler, Plymouth, Ford, Mazda, and Mercury, Dakota, Wrangler, Cherokee, Grand Cherokee, Town & Country, Caravan, Grand Caravan, Grand Voyager, Voyager, Ranger, B2300, B3000, B4000, Mustang, Aerostar, Comanche, Wagoneer, Mini Ram, Thunderbird, Cougar, LTD, Capri, Marquis, Fairmont, Zephyr, Granada, Pinto, Bobcat, and Mustang II
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Drum Brake Shoe Hold Down Spring options

Reliable Drum Brake Shoe Hold Down Spring for Select Vehicles

The Raybestos R-Line Drum Brake Shoe Hold Down Spring (Part Number H1160) is designed to provide secure and consistent brake shoe retention for a range of Chrysler, Dodge, Ford, Jeep, Mazda, Mercury, and Plymouth models. This component ensures proper brake function and safety in drum brake systems.

  • Compatible with multiple makes including Chrysler, Dodge, Ford, Jeep, Mazda, Mercury, and Plymouth
  • Fits popular models such as Aerostar, B2300, B3000, B4000, Bobcat, Capri, Caravan, Cherokee, Comanche, Cougar, Dakota, Fairmont, Grand Caravan, Grand Cherokee, Grand Voyager, LTD, Marquis, Mustang, Pinto, Ranger, Thunderbird, Town & Country, Voyager, Wagoneer, Wrangler, and Zephyr
  • Part Number H1160 for precise identification and fitment
  • Part of the Raybestos R-Line, known for quality brake hardware components
  • Designed specifically for drum brake shoe hold down applications

About the Raybestos R-Line Product Line

The R-Line by Raybestos focuses on delivering dependable brake hardware and fasteners engineered to meet or exceed OEM specifications. This product line includes components like hold down springs that maintain proper brake shoe positioning and performance. The R-Line ensures compatibility and durability for a wide range of vehicle makes and models, including those requiring part number H1160.

Product Description and Application

The Raybestos R-Line Drum Brake Shoe Hold Down Spring H1160 is a critical component in drum brake assemblies, responsible for holding the brake shoes firmly against the backing plate. This spring helps maintain correct shoe alignment and prevents unwanted movement during braking, which is essential for consistent brake performance and safety. It is compatible with various vehicles such as the Ford Mustang, Jeep Grand Cherokee, Dodge Caravan, and Mazda B2300, among others.

Common Issues Addressed by This Hold Down Spring

  • Brake shoe misalignment causing uneven wear
  • Excessive brake noise due to loose shoes
  • Reduced braking efficiency from improper shoe retention
  • Premature brake hardware failure
  • Difficulty maintaining brake shoe position during operation

Installation Notes and Tips

  • Ensure the brake drum and backing plate are clean before installation
  • Use appropriate tools to avoid damaging the spring or brake components
  • Verify correct orientation and secure fit of the hold down spring
  • Inspect other brake hardware for wear and replace as necessary
  • Consult vehicle-specific service manuals for torque specifications and procedures

Quality Assurance and Warranty

Raybestos R-Line parts, including the H1160 hold down spring, are manufactured to meet stringent quality standards for durability and performance. While specific warranty details may vary, Raybestos products typically come with a limited warranty against defects in material and workmanship, providing confidence in the reliability of this brake hardware component.

This part fits 196 vehicles. Search below:
