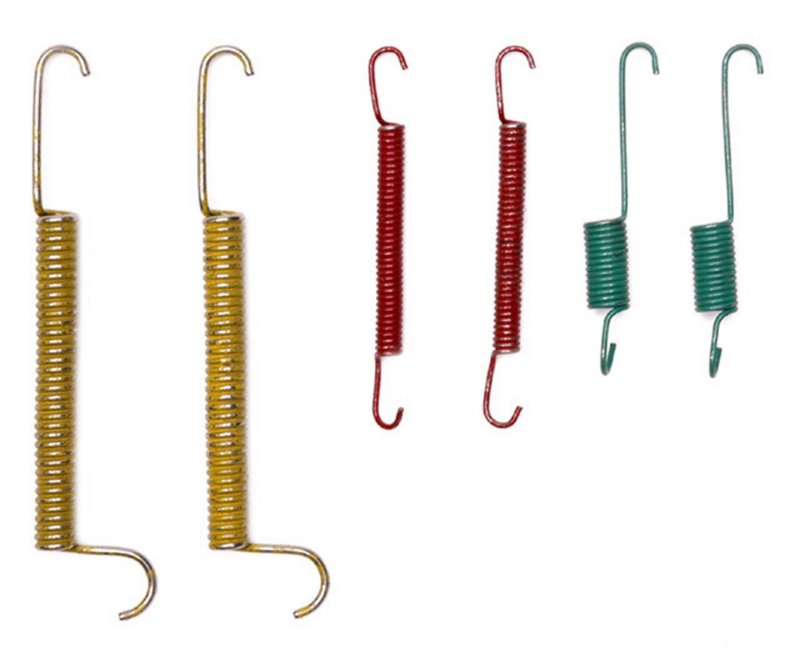

Raybestos H706 Drum Brake Shoe Return Spring Kit - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos H706 Drum Brake Shoe Return Spring Kit - Rear

Brand Raybestos H706
Position Rear
Product line R-Line
Fits Buick, Cadillac, Oldsmobile, and Pontiac · 44 vehicles

Service kit. Includes the components needed for drum brake shoe return spring service.

Brake shoe springs. Restores proper shoe return action in a drum brake system.

Cross-references MOOG Driveline Products 316, NGK 2161 and Raybestos Brakes H706 for the same application. See all 10.

$35.76Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Drum Brake Shoe Return Spring Kits are typically replaced in pairs, axle by axle.
Order total $35.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drum Brake Shoe Return Spring Kit options

Rear Drum Brake Shoe Return Spring Kit

Raybestos R-Line H706 is a rear drum brake shoe return spring kit for service work on select GM full-size cars and chassis applications. It is listed for rear drum brake use on Buick, Cadillac, Oldsmobile, and Pontiac models from 1986-1991, including Buick LeSabre, Cadillac DeVille, and Pontiac Bonneville.

Key Features

  • Raybestos R-Line service kit for rear drum brake shoe return spring replacement
  • Compatible with select 1986-1991 Buick, Cadillac, Oldsmobile, and Pontiac rear drum brake applications
  • Listed for standard duty drum brakes and self-adjuster repair kit service on certain Cadillac models
  • Cross-reference part numbers include 706 and H316 for the same application
  • Part number H706 for easy catalog matching and fitment lookup

Fitment Details

  • Fits 1991 Buick Park Avenue, rear.
  • Fits 1990-1991 Cadillac Commercial Chassis, rear, GM Brake Code J41, JM4.
  • Fits 1990-1991 Cadillac DeVille, rear, w/ 225mm x 45mm brakes.
  • Fits 1990-1991 Cadillac DeVille, rear, standard duty drum brakes for self-adjuster repair kit.
  • Fits 1990-1991 Cadillac Fleetwood, rear, w/ 225mm x 45mm brakes, GM Brake Code J41, JM4.
  • Fits 1991 Cadillac Fleetwood, rear, standard duty drum brakes for self-adjuster repair kit.
  • Fits 1987-1991 Oldsmobile 98, rear.
  • Fits 1987-1991 Pontiac Bonneville, rear.
  • Fits 1986-1990 Buick LeSabre, rear.
  • Fits 1989-1990 Oldsmobile Custom Cruiser, rear, w/ 225mm brakes.
  • Fits 1986-1990 Oldsmobile Delta 88, rear.
  • Fits 1987-1989 Cadillac Commercial Chassis, rear.
  • Fits 1987-1989 Cadillac DeVille, rear.
  • Fits 1987-1989 Cadillac Fleetwood, rear.

What This Kit Helps Address

  • Weak or stretched rear drum brake shoe return springs
  • Uneven brake shoe retraction after pedal release
  • Brake drag caused by worn spring hardware
  • Noisy rear drum brake operation from fatigued components
  • Service needs during drum brake shoe or self-adjuster repair work

Installation Notes

Verify rear drum brake configuration before ordering, especially on Cadillac applications with 225mm x 45mm brakes, GM Brake Codes J41 and JM4, or standard duty drum brakes for self-adjuster repair kit service. Match the vehicle year, make, model, and rear brake setup to the catalog listing before installation. H706 is cataloged for rear use only.

Quality Assurance

Raybestos R-Line is a service-focused product line for brake maintenance parts, and H706 is cataloged for direct application matching across the listed GM vehicles. Confirm fitment by brake code and drum size where noted to ensure correct selection.

Related reading

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody Type# DoorsPositionNotes
1991BuickPark Avenue——RearR-Line
1991CadillacCommercial Chassis——RearGM Brake Code J41,JM4; R-Line
1991CadillacDeVille——Rearw/ 225mm X 45mm Brakes; R-Line
1991CadillacDeVille——RearFits standard duty drum brakes for self-adjuster repair kit.; R-Line
1991CadillacFleetwood——Rearw/ 225mm X 45mm Brakes; GM Brake Code J41,JM4; R-Line
1991CadillacFleetwood——RearFits standard duty drum brakes for self-adjuster repair kit.; R-Line
1991Oldsmobile98——RearR-Line
1991PontiacBonneville——RearR-Line
1990BuickLeSabreSedan4 DoorRearR-Line
1990BuickLeSabreCoupe2 DoorRearR-Line
1990CadillacCommercial Chassis——RearGM Brake Code J41,JM4; R-Line
1990CadillacDeVille——Rearw/ 225mm X 45mm Brakes; R-Line
1990CadillacDeVille——RearFits standard duty drum brakes for self-adjuster repair kit.; R-Line
1990CadillacFleetwood——Rearw/ 225mm X 45mm Brakes; GM Brake Code J41,JM4; R-Line
1990Oldsmobile98——RearR-Line
1990OldsmobileCustom Cruiser——Rearw/ 225mm Brakes; R-Line
1990OldsmobileDelta 88——RearR-Line
1990PontiacBonneville——RearR-Line
1989BuickLeSabreSedan4 DoorRearR-Line
1989BuickLeSabreCoupe2 DoorRearR-Line
1989CadillacCommercial Chassis——RearR-Line
1989CadillacDeVille——RearR-Line
1989CadillacFleetwood——RearR-Line
1989Oldsmobile98——RearR-Line
1989OldsmobileCustom Cruiser——Rearw/ 225mm Brakes; R-Line
1989OldsmobileDelta 88——RearR-Line
1989PontiacBonneville——RearR-Line
1988BuickLeSabreSedan4 DoorRearR-Line
1988BuickLeSabreCoupe2 DoorRearR-Line
1988CadillacCommercial Chassis——RearR-Line
1988CadillacDeVille——RearR-Line
1988CadillacFleetwood——RearR-Line
1988Oldsmobile98——RearR-Line
1988OldsmobileDelta 88——RearR-Line
1988PontiacBonneville——RearR-Line
1987BuickLeSabre——RearR-Line
1987CadillacCommercial Chassis——RearR-Line
1987CadillacDeVille——RearR-Line
1987CadillacFleetwood——RearR-Line
1987Oldsmobile98——RearR-Line
1987OldsmobileDelta 88——RearR-Line
1987PontiacBonneville——RearR-Line
1986BuickLeSabre——RearR-Line
1986OldsmobileDelta 88——RearR-Line
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Driveline Products — 316NGK — 2161Raybestos Brakes — H706706F113821F113821SF113822H316H706DPHW706
