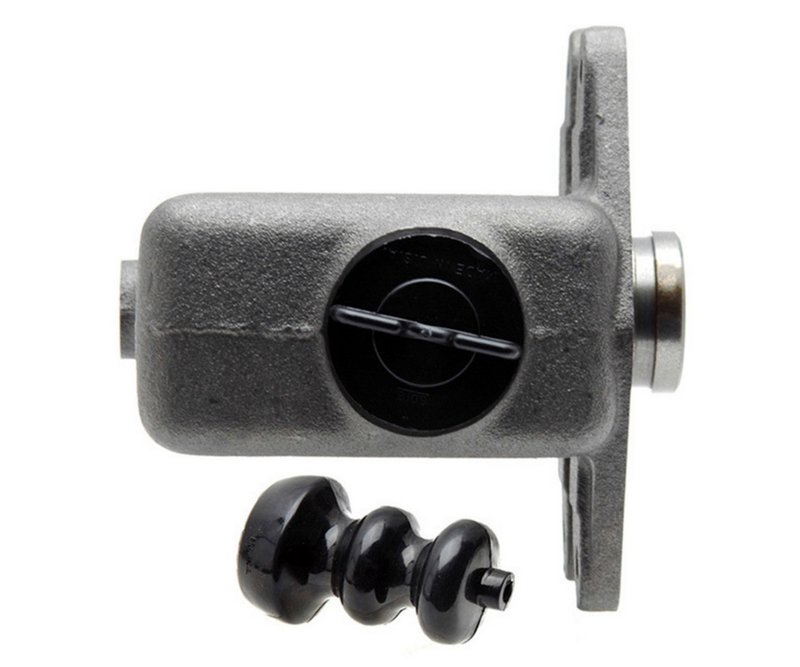

Raybestos MC36176 Brake Master Cylinder

Brake Master Cylinder Overview

This Raybestos brake master cylinder is built for direct hydraulic control in manual brake systems. It uses an iron body, a 1.250-inch bore, and a single port layout for a straightforward replacement on the specified application. Part number MC36176 is part of the Raybestos Element3; New line.

Key Features

• Iron master cylinder construction for durable hydraulic service.
• 1.250-inch bore size for consistent brake fluid displacement.
• Single-port design with 1/2"-20 primary port thread.
• Four mounting holes with 0.343-inch mounting hole diameter.
• Raybestos Element3; New product line.

Detailed Description

MC36176 is a brake master cylinder engineered for manual brake applications that require a four-bolt mounting pattern and a single hydraulic outlet. The iron housing provides a rigid foundation for the internal piston assembly, while the 1.250-inch bore supports the fluid movement needed for brake system operation. This part number, MC36176, is listed for 1963-1966 Ford F-350 with manual brakes, and it matches the fitment details shown for that truck platform. If you are sourcing a brake master cylinder for a 1963-1966 Ford F-350, MC36176 gives you the key dimensions and port configuration needed for a proper replacement.

Common Issues It Can Address

• Brake pedal travel that feels excessive or inconsistent.
• Loss of hydraulic pressure in the brake system.
• Fluid leakage at the master cylinder body or port area.
• Wear-related performance decline in an original master cylinder.

Installation Notes and Tips

Verify the mounting pattern, bore size, and port thread before installation. This application is listed for manual brakes and a four-bolt mounting arrangement, so confirm the existing brake system matches those specifications. Proper bleeding after installation is necessary to restore firm pedal feel and stable hydraulic operation.

Quality Assurance

Raybestos Element3; New identifies this master cylinder as part of a product line focused on replacement brake components with application-specific fitment and construction details. Part number MC36176 is cross-referenced to Dorman - First Stop M36176 for the same application.
