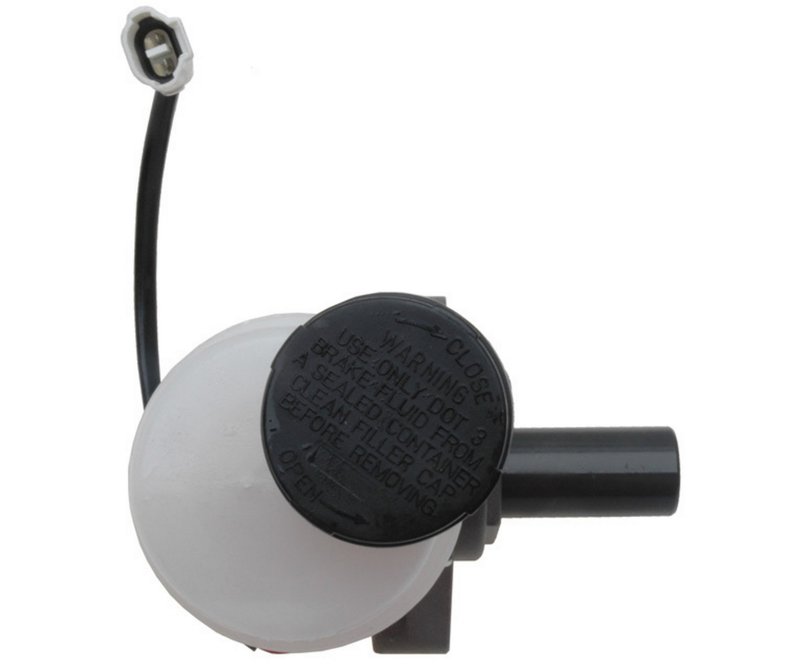

Raybestos MC390070 Brake Master Cylinder
| Brand | Raybestos MC390070 |
|---|---|
| Mounting Hole Quantity | 2 |
| Master Cylinder Material | Aluminum |
| Mounting Hole Diameter | 0.354 |
| Bore Size | 1.000 |
| Primary Port Thread A | M10x1 |
| Secondary Port Thread A | M10x1 |
| Product line | Element3; New |
| Fits | Suzuki · 4 vehicles |
Aluminum construction. Helps keep the brake master cylinder lightweight and corrosion resistant.
1.000 bore size. Supports consistent hydraulic response for dependable braking performance.
Element3 line. Raybestos engineering focused on dependable brake system replacement parts.
Cross-references AMS Automotive S0120, Centric Parts 130.48006 and Dorman - First Stop M630164 for the same application. See all 9.
Raybestos MC390070 Brake Master Cylinder for Suzuki Sidekick
The Raybestos Element3 New MC390070 is a brake master cylinder for 1992-1995 Suzuki Sidekick applications. Built with an aluminum master cylinder body and a 1.000-inch bore, it supports consistent hydraulic pressure for brake system service and replacement work.
Key Features
- Raybestos Element3 New brake master cylinder
- Fits 1992-1995 Suzuki Sidekick
- Aluminum master cylinder material for reduced weight and corrosion resistance
- 1.000-inch bore size
- 2 mounting holes with 0.354-inch mounting hole diameter
- M10x1 primary port thread and M10x1 secondary port thread
Product Details
The Raybestos MC390070 is a brake master cylinder engineered for Suzuki Sidekick brake hydraulic replacement. The aluminum construction and 1.000-inch bore size are key specifications for matching the vehicle’s hydraulic requirements, while the dual M10x1 port threads support proper line connection during brake system repair. This part cross-references Dorman - First Stop M630164 for the same application.
The Element3 New product line focuses on replacement brake components for service work where correct fitment and hydraulic specification matter. For drivers and technicians servicing a Suzuki Sidekick, the MC390070 provides a direct-fit master cylinder option for 1992-1995 model years.
Common Issues This Part Can Address
- Brake pedal travel that increases due to master cylinder wear
- Internal hydraulic leakage in the brake master cylinder
- Loss of consistent brake pressure during braking
- Brake fluid seepage around the master cylinder body or ports
- Restoration of braking performance after hydraulic component failure
Installation Notes and Tips
Verify port thread size, mounting hole spacing, and bore specification before installation. Bench bleeding the master cylinder before final installation helps remove trapped air from the hydraulic circuit. After installation, bleed the brake system thoroughly and inspect all line connections for leaks. Confirm fitment for 1992-1995 Suzuki Sidekick before ordering or service.
Quality Assurance
Raybestos is a recognized brake parts brand with coverage across hydraulic and friction components. The MC390070 is part of the Element3 New line and is built to meet the dimensional and application requirements listed for Suzuki Sidekick brake service.
| Year | Make | Model | Body Type | # Doors | Notes |
|---|---|---|---|---|---|
| 1995 | Suzuki | Sidekick | Sport Utility | 4 Door | Element3; New |
| 1994 | Suzuki | Sidekick | Sport Utility | 4 Door | Element3; New |
| 1993 | Suzuki | Sidekick | Sport Utility | 4 Door | Element3; New |
| 1992 | Suzuki | Sidekick | Sport Utility | 4 Door | Element3; New |
| No rows match your filter. | |||||
