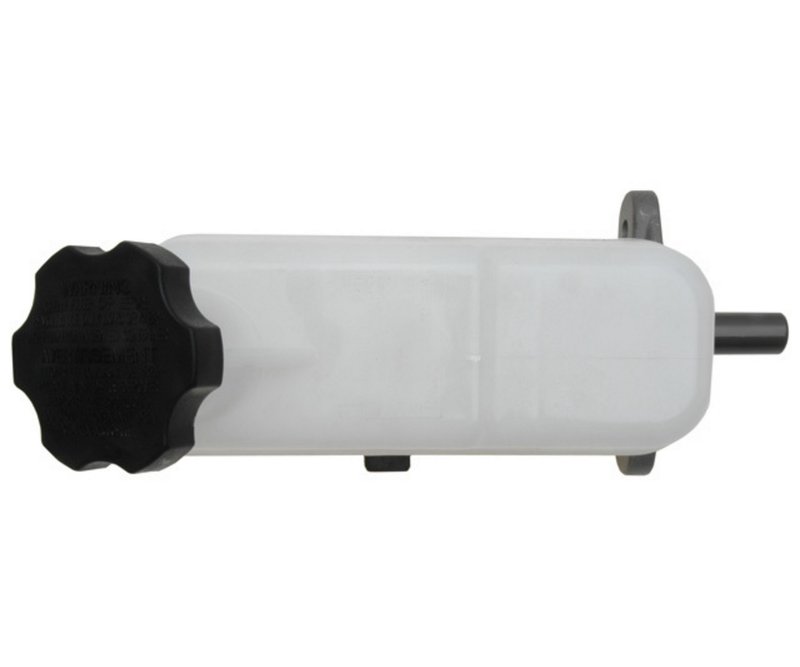

Raybestos MC391119 Brake Master Cylinder
| Brand | Raybestos MC391119 |
|---|---|
| Mounting Hole Quantity | 2 |
| Master Cylinder Material | Aluminum |
| Mounting Hole Diameter | 0.343 |
| Bore Size | 1.060 |
| Primary Port Thread A | M12x1 |
| Secondary Port Thread A | M12x1 |
| Product line | Element3; New |
| Fits | Hyundai and Kia · 12 vehicles |
Element3 line. Raybestos engineering for dependable brake hydraulics.
Aluminum construction. Lightweight master cylinder body helps resist corrosion.
1.060 bore size. Supports consistent hydraulic response and pedal feel.
Cross-references Cardone New 13-3364, Centric Parts 130.50030 and Dorman - First Stop M630490 for the same application. See all 12.
Brake Master Cylinder for Kia Sedona and Hyundai Entourage
Raybestos Element3 New brake master cylinder MC391119 is built for direct replacement on select Kia Sedona and Hyundai Entourage applications. It features an aluminum body, a 1.060-inch bore, and dual M12x1 port threads for a precise hydraulic connection.
Key Features
- Brake master cylinder for hydraulic brake system service
- Aluminum master cylinder material for lightweight corrosion resistance
- 1.060-inch bore size for the specified brake system application
- 2 mounting holes with 0.343-inch mounting hole diameter
- Primary port thread: M12x1
- Secondary port thread: M12x1
- Raybestos Element3 New product line for replacement brake hydraulics
Product Details
Raybestos MC391119 is a brake master cylinder engineered for select Kia Sedona and Hyundai Entourage vehicles. The Element3 New line focuses on replacement brake hydraulics with application-specific fitment and core dimensions that match the original system requirements. This part cross-references Cardone New 13-3364 for the same application.
Compatible With 2014 Kia Sedona, N/A; 2010-2012 Kia Sedona, N/A; 2006 Kia Sedona, N/A; 2007-2009 Kia Sedona, N/A w/ ESP; 2010 Hyundai Entourage, N/A; 2008-2009 Hyundai Entourage, N/A; 2007 Hyundai Entourage, N/A w/ ESP.
Common Issues This Part Can Address
- Brake pedal travel that feels excessive or inconsistent
- Loss of hydraulic pressure in the brake system
- Internal master cylinder wear affecting braking response
- Fluid leakage at the master cylinder body or ports
- Brake performance concerns on select Kia Sedona and Hyundai Entourage models
Installation Notes and Tips
Verify bore size, port thread size, and mounting hole layout before installation. Confirm vehicle fitment by year, make, model, and ESP configuration where listed. After installation, the brake system should be properly bled to remove air from the hydraulic circuit and restore pedal feel.
Quality Assurance
Raybestos Element3 New brake hydraulics are built to meet the dimensional and application requirements of the listed vehicles. MC391119 is specified for direct replacement use on the confirmed Kia Sedona and Hyundai Entourage fitments shown above.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2014 | Kia | Sedona | Element3; New |
| 2012 | Kia | Sedona | Element3; New |
| 2011 | Kia | Sedona | Element3; New |
| 2010 | Hyundai | Entourage | Raybestos Element 3 |
| 2010 | Kia | Sedona | Element3; New |
| 2009 | Hyundai | Entourage | Element3; New |
| 2009 | Kia | Sedona | w/ ESP; Element3; New |
| 2008 | Hyundai | Entourage | Element3; New |
| 2008 | Kia | Sedona | w/ ESP; Element3; New |
| 2007 | Hyundai | Entourage | w/ ESP; Element3; New |
| 2007 | Kia | Sedona | w/ ESP; Element3; New |
| 2006 | Kia | Sedona | Element3; New |
