Raybestos MC391364 Brake Master Cylinder
OE Quality 60-Day Returns
Raybestos
 Raybestos Element 3

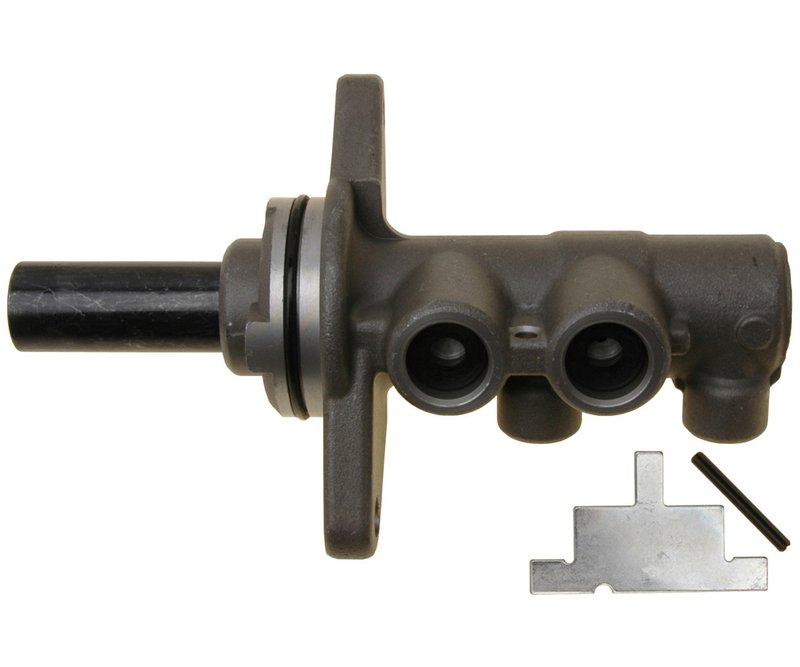

Raybestos MC391364 Brake Master Cylinder

Brand Raybestos MC391364
Mounting Hole Quantity 2
Master Cylinder Material Aluminum
Mounting Hole Diameter 0.354
Bore Size 0.875
Number of Ports 2
Primary Port Thread A M12x1
Secondary Port Thread A M12x1
Product line Raybestos Element 3
Fits Honda · 7 vehicles

Aluminum housing. Lightweight master cylinder construction for brake hydraulic service.

Precision bore size. 0.875 bore supports the specified hydraulic output.

Element3 line. Focused Raybestos brake hydraulics replacement.

Cross-references Centric Parts 130.40080, 13-4439 and 46101TK8A01 for the same application. See all 9.

$130.02Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $130.02
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Master Cylinder options

Brake Master Cylinder Overview

Raybestos MC391364 is a brake master cylinder for select Honda Odyssey applications. It is part of the Element3 line and uses an aluminum body with a 0.875 bore size for hydraulic brake system service.

Key Features

  • Aluminum master cylinder construction for a lightweight, corrosion-resistant housing.
  • 0.875 bore size for the specified hydraulic output.
  • Two mounting holes and two ports for the listed brake system layout.
  • M12x1 primary and secondary port threads for the specified line connection style.
  • Raybestos Element3 line coverage for a focused brake hydraulics replacement.

Fitment Details

Compatible with Honda Odyssey applications. Fits 2011-2014 Honda Odyssey, N/A. Fits 2015-2017 Honda Odyssey, N/A. Raybestos MC391364 is listed for these model years only, so match the part number and port/thread specifications before ordering.

What It Is Used For

  • Restoring brake pedal pressure when the master cylinder is worn internally.
  • Addressing fluid bypass that can cause a soft or sinking pedal.
  • Replacing a leaking hydraulic unit at the brake booster interface.
  • Correcting inconsistent brake response caused by bore or seal wear.

Installation Notes and Tips

Verify the bore size, port count, and M12x1 thread specification against the original unit before installation. Bleed the brake system thoroughly after replacement and confirm all line connections are secure and leak-free. Use the exact part number MC391364 to confirm application match for your Honda Odyssey.

Quality Assurance

Raybestos Element3 is a brake product line focused on replacement fit and hydraulic system service. MC391364 should be matched to the listed application and specifications for proper installation.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2017HondaOdysseyRaybestos Element 3
2016HondaOdysseyRaybestos Element 3
2015HondaOdysseyRaybestos Element 3
2014HondaOdysseyElement3; New
2013HondaOdysseyElement3; New
2012HondaOdysseyElement3; New
2011HondaOdysseyElement3; New
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 130.4008013-443946101TK8A0146101TK8A0246101TK8A0346101TK830546101TK831546101TK8325MC146083
