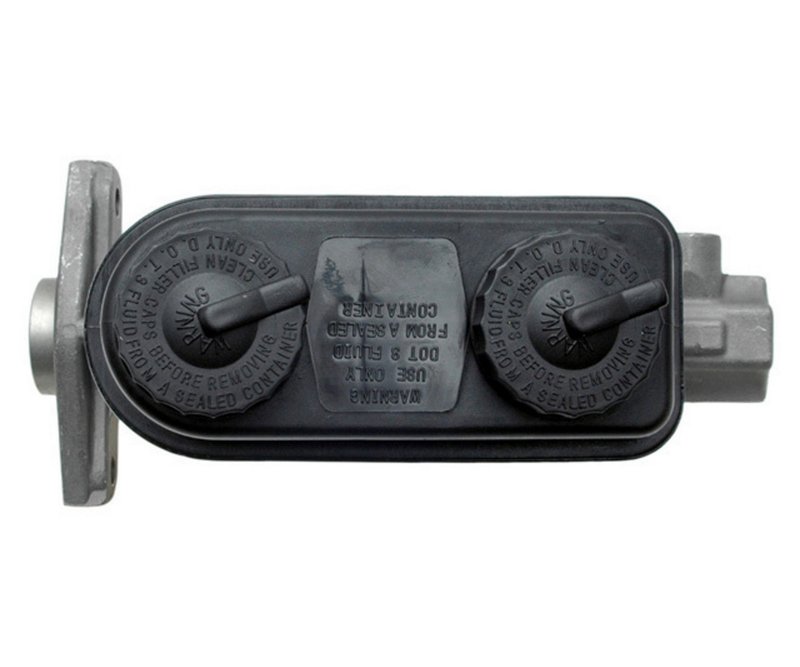

Raybestos MC39476 Brake Master Cylinder
| Brand | Raybestos MC39476 |
|---|---|
| Mounting Hole Quantity | 2 |
| Master Cylinder Material | Aluminum |
| Mounting Hole Diameter | 0.354 |
| Bore Size | 24.000 |
| Number of Ports | 2 |
| Primary Port Thread A | 3/8"-24 |
| Secondary Port Thread A | 3/8"-24 |
| Product line | Element3; New |
| Fits | Chrysler, Dodge, and Plymouth · 106 vehicles |
Aluminum construction. Helps keep the brake master cylinder lightweight and corrosion resistant.
Dual-port design. Provides two fluid connections for a clean hydraulic setup.
Element3 line. Part of Raybestos' premium brake hydraulics family.
Cross-references Baldwin 18002, Centric Parts 130.67009 and Centric Parts 131.67009 for the same application. See all 36.
Raybestos MC39476 Brake Master Cylinder
The Raybestos Element3 MC39476 brake master cylinder is built for Chrysler, Dodge, and Plymouth vehicles that need a direct-fit hydraulic replacement with the correct bore and port layout. With an aluminum body and a 24.000 bore size, it supports consistent brake pedal response across a wide range of 1984-1995 applications.
Use this brake master cylinder when servicing Chrysler Grand Voyager, Dodge Caravan, or Plymouth Voyager brake hydraulics and you need a replacement that matches the original mounting and port configuration.
Key Features
- Raybestos Element3 line brake master cylinder for brake hydraulic service
- Part number MC39476
- Aluminum master cylinder construction
- 24.000 bore size for the listed applications
- 2 mounting holes with 0.354 mounting hole diameter
- 2 ports with 3/8"-24 primary and secondary port threads
- Direct-fit replacement for a broad range of Chrysler, Dodge, and Plymouth vehicles
Detailed Description
The Raybestos MC39476 is a brake master cylinder engineered for vehicles that use a 24mm bore and dual 3/8"-24 ports. Its aluminum construction helps keep the hydraulic assembly lightweight while maintaining the correct fitment details needed for brake system service. This part is listed for applications including 1995 Chrysler Grand Voyager, 1984-1995 Dodge Caravan, and 1984-1995 Plymouth Voyager, along with other Chrysler, Dodge, and Plymouth models from 1984-1995. This part cross-references Dorman - First Stop M39476 and Centric Parts 130.67009 for the same application.
What It Helps Fix
- Soft or inconsistent brake pedal feel caused by a worn master cylinder
- Internal hydraulic leakage that reduces braking performance
- Brake fluid bypass issues that affect pedal pressure
- Loss of braking response from aging master cylinder seals and bores
- Fitment problems when replacing an original 24mm aluminum cylinder
Installation Notes and Tips
Verify the bore size, mounting hole spacing, and port thread size before installation. This master cylinder uses 2 mounting holes and dual 3/8"-24 ports, so line routing and flare nut fitment should be checked against the original unit. Bleed the brake system thoroughly after installation and confirm proper pedal height and hydraulic operation before returning the vehicle to service. Fits 1995 Chrysler Grand Voyager, N/A; Fits 1991-1995 Chrysler LeBaron, N/A; Fits 1994-1995 Chrysler Town & Country, N/A; Fits 1990 Chrysler Town & Country, N/A; Fits 1986 Chrysler Town & Country, N/A; Fits 1995 Chrysler Voyager, N/A; Fits 1984-1995 Dodge Caravan, N/A; Fits 1987-1995 Dodge Grand Caravan, N/A; Fits 1991-1995 Dodge Spirit, N/A; Fits 1991-1995 Plymouth Acclaim, N/A; Fits 1987-1995 Plymouth Grand Voyager, N/A; Fits 1984-1995 Plymouth Voyager, N/A; Fits 1990-1993 Chrysler Daytona, N/A; Fits 1988-1993 Chrysler Dynasty, N/A; Fits 1990-1993 Chrysler Imperial, N/A; Fits 1990-1993 Dodge Daytona, N/A; Fits 1988-1992 Chrysler New Yorker, N/A; Fits 1989-1990 Chrysler LeBaron, N/A; Fits 1989 Chrysler Daytona, N/A; Fits 1989 Dodge Daytona, N/A; Fits 1986 Chrysler LeBaron, N/A; Fits 1986 Dodge Lancer, N/A.
Quality Assurance
Raybestos Element3 brake components are built around application-specific fitment and hydraulic specifications for service replacement use. The MC39476 is cataloged with the listed vehicle coverage and interchange references to help confirm the correct part before installation.
| Year | Make | Model | Submodel | Body Type | # Doors | Notes |
|---|---|---|---|---|---|---|
| 1995 | Chrysler | Grand Voyager | — | — | — | Element3; New |
| 1995 | Chrysler | LeBaron | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1995 | Chrysler | Town & Country | — | — | — | Element3; New |
| 1995 | Chrysler | Voyager | — | — | — | Element3; New |
| 1995 | Dodge | Caravan | — | — | — | Element3; New |
| 1995 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1995 | Dodge | Spirit | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1995 | Plymouth | Acclaim | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1995 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1995 | Plymouth | Voyager | — | — | — | Element3; New |
| 1994 | Chrysler | LeBaron | — | Sedan | 4 Door | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1994 | Chrysler | Town & Country | — | — | — | Element3; New |
| 1994 | Dodge | Caravan | — | — | — | Element3; New |
| 1994 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1994 | Dodge | Spirit | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1994 | Plymouth | Acclaim | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1994 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1994 | Plymouth | Voyager | — | — | — | Element3; New |
| 1993 | Chrysler | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1993 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1993 | Chrysler | Imperial | — | — | — | Element3; New |
| 1993 | Chrysler | LeBaron | — | Sedan | 4 Door | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1993 | Dodge | Caravan | — | — | — | Element3; New |
| 1993 | Dodge | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1993 | Dodge | Dynasty | — | — | — | Element3; New |
| 1993 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1993 | Dodge | Spirit | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1993 | Plymouth | Acclaim | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1993 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1993 | Plymouth | Voyager | — | — | — | Element3; New |
| 1992 | Chrysler | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1992 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1992 | Chrysler | Imperial | — | — | — | Element3; New |
| 1992 | Chrysler | LeBaron | — | Sedan | 4 Door | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1992 | Chrysler | New Yorker | — | — | — | Element3; New |
| 1992 | Dodge | Caravan | — | — | — | Element3; New |
| 1992 | Dodge | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1992 | Dodge | Dynasty | — | — | — | Element3; New |
| 1992 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1992 | Dodge | Spirit | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1992 | Plymouth | Acclaim | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1992 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1992 | Plymouth | Voyager | — | — | — | Element3; New |
| 1991 | Chrysler | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1991 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1991 | Chrysler | Imperial | — | — | — | Element3; New |
| 1991 | Chrysler | LeBaron | — | Coupe | 2 Door | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1991 | Chrysler | New Yorker | — | — | — | Element3; New |
| 1991 | Dodge | Caravan | — | — | — | Element3; New |
| 1991 | Dodge | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1991 | Dodge | Dynasty | — | — | — | Element3; New |
| 1991 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1991 | Dodge | Spirit | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1991 | Plymouth | Acclaim | — | — | — | Compatible with vehicles equipped with 15-inch wheels.; Element3; New |
| 1991 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1991 | Plymouth | Voyager | — | — | — | Element3; New |
| 1990 | Chrysler | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1990 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1990 | Chrysler | Imperial | — | — | — | Element3; New |
| 1990 | Chrysler | LeBaron | — | Coupe | 2 Door | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1990 | Chrysler | New Yorker | — | — | — | Element3; New |
| 1990 | Chrysler | Town & Country | — | — | — | Element3; New |
| 1990 | Dodge | Caravan | — | — | — | Element3; New |
| 1990 | Dodge | Daytona | — | — | — | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1990 | Dodge | Dynasty | — | — | — | Element3; New |
| 1990 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1990 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1990 | Plymouth | Voyager | — | — | — | Element3; New |
| 1989 | Chrysler | Daytona | Shelby | — | — | Element3; New |
| 1989 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1989 | Chrysler | LeBaron | — | Coupe | 2 Door | with 16 IN Wheels; with 15 IN Wheels; Element3; New |
| 1989 | Chrysler | New Yorker | — | — | — | Element3; New |
| 1989 | Dodge | Caravan | — | — | — | Element3; New |
| 1989 | Dodge | Daytona | Shelby | — | — | Element3; New |
| 1989 | Dodge | Dynasty | — | — | — | Element3; New |
| 1989 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1989 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1989 | Plymouth | Voyager | — | — | — | Element3; New |
| 1988 | Chrysler | Dynasty | — | — | — | Element3; New |
| 1988 | Chrysler | New Yorker | — | — | — | Element3; New |
| 1988 | Dodge | Caravan | — | — | — | Element3; New |
| 1988 | Dodge | Dynasty | — | — | — | Element3; New |
| 1988 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1988 | Dodge | Mini Ram | — | — | — | Element3; New |
| 1988 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1988 | Plymouth | Voyager | — | — | — | Element3; New |
| 1987 | Dodge | Caravan | — | — | — | Element3; New |
| 1987 | Dodge | Grand Caravan | — | — | — | Element3; New |
| 1987 | Dodge | Mini Ram | Base | — | — | Element3; New |
| 1987 | Dodge | Mini Ram | Royal | — | — | Element3; New |
| 1987 | Plymouth | Grand Voyager | — | — | — | Element3; New |
| 1987 | Plymouth | Voyager | — | — | — | Element3; New |
| 1986 | Chrysler | LeBaron | — | — | — | Element3; New |
| 1986 | Chrysler | Town & Country | — | — | — | Element3; New |
| 1986 | Dodge | Caravan | — | — | — | Element3; New |
| 1986 | Dodge | Lancer | — | — | — | Bore 24mm; Aluminum Cylinder With Plastic Reservoir; Element3; New |
| 1986 | Dodge | Mini Ram | Base | — | — | Element3; New |
| 1986 | Dodge | Mini Ram | Royal | — | — | Element3; New |
| 1986 | Plymouth | Voyager | — | — | — | Element3; New |
| 1985 | Dodge | Caravan | — | — | — | Element3; New |
| 1985 | Dodge | Mini Ram | Base | — | — | Element3; New |
| 1985 | Dodge | Mini Ram | Royal | — | — | Element3; New |
| 1985 | Plymouth | Voyager | — | — | — | Element3; New |
| 1984 | Dodge | Caravan | — | — | — | Element3; New |
| 1984 | Dodge | Mini Ram | — | — | — | Element3; New |
| 1984 | Plymouth | Voyager | — | — | — | Element3; New |
