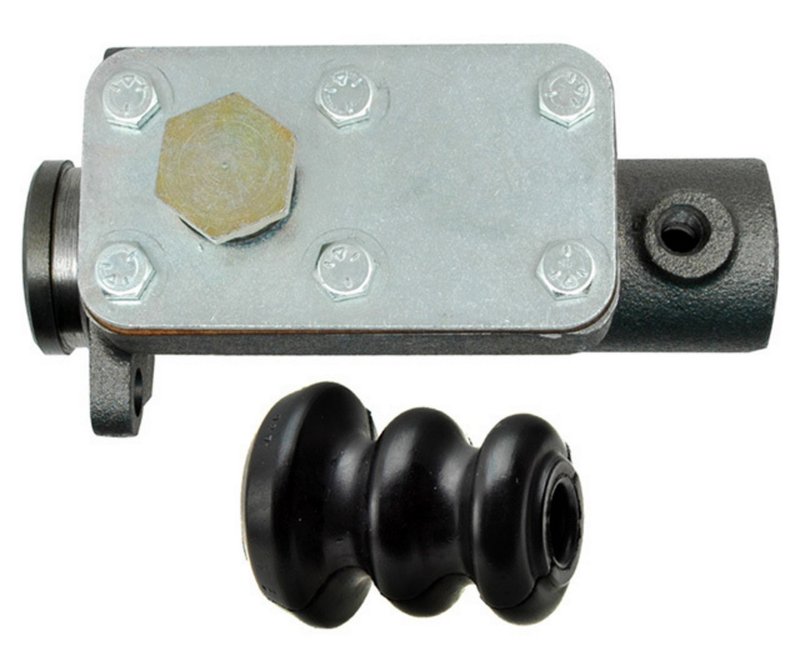

Raybestos MC544 Brake Master Cylinder

Overview of Raybestos Element3; New Brake Master Cylinder MC544

The Raybestos Element3; New Brake Master Cylinder MC544 is engineered for reliable brake hydraulics performance. Designed with precision, this iron master cylinder features a 1.250-inch bore size and is built to meet the demands of various vehicle brake systems.

• Constructed from durable iron material for long-lasting strength
• 1.250-inch bore size optimized for consistent hydraulic pressure
• Three mounting holes with 0.406-inch diameter for secure installation
• Two ports with 1/2"-20 primary port thread for standard brake line connections
• Part number MC544 ensures exact replacement compatibility

Detailed Product Features and Specifications

The MC544 brake master cylinder from Raybestos is part of the Element3; New product line, which focuses on delivering dependable brake hydraulics components. This master cylinder is designed with three mounting holes, each measuring 0.406 inches in diameter, providing a stable and secure fit on compatible vehicles. The iron construction offers durability and resistance to wear, essential for maintaining brake system integrity over time.

The 1.250-inch bore size is calibrated to provide the correct hydraulic pressure needed for effective braking response. Featuring two ports, including a primary port with a 1/2"-20 thread, this master cylinder supports standard brake line fittings, facilitating straightforward installation and maintenance.

Common Applications and Problem Resolution

• Replacement for worn or leaking brake master cylinders
• Restores proper hydraulic pressure in brake systems
• Addresses brake pedal sponginess or failure to build pressure
• Eliminates fluid leaks from the master cylinder assembly
• Improves overall brake system responsiveness and safety

Installation Notes and Tips

When installing the Raybestos MC544 master cylinder, ensure the mounting holes align precisely with the vehicle’s brake booster or firewall. Use the specified 0.406-inch diameter mounting holes for secure attachment. Confirm that brake lines match the 1/2"-20 primary port thread to avoid leaks. Bleed the brake system thoroughly after installation to remove air and restore proper hydraulic function.

Quality Assurance and Warranty Information

Raybestos Element3; New brake master cylinders are manufactured to meet or exceed OEM standards. The iron material and precise bore sizing contribute to consistent performance and durability. While specific warranty details for part number MC544 should be confirmed with the supplier, Raybestos products typically come with a limited warranty covering defects in materials and workmanship.
