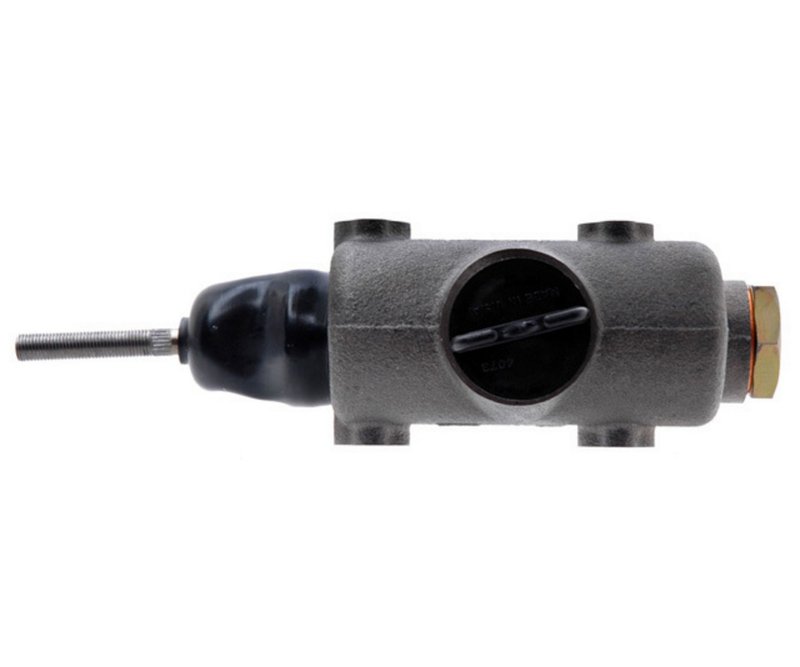

Raybestos MC9219 Brake Master Cylinder

Raybestos MC9219 Brake Master Cylinder

The Raybestos MC9219 is a brake master cylinder built for hydraulic brake system service where consistent pedal response and fluid pressure are critical. This Element3 line master cylinder uses an iron body with a 1.000-inch bore and two ports for a direct-fit replacement in the correct application.

For shoppers searching for a brake master cylinder for Raybestos MC9219, or a replacement master cylinder for brake hydraulics service, this part is built around the core dimensions that matter most: bore size, port thread, and mounting pattern. It is also a relevant search for Honda Civic brake master cylinder replacement when cross-referencing the application.

Key Features

• Raybestos Element3 line brake master cylinder
• Iron master cylinder material for durable hydraulic service
• 1.000-inch bore size
• Two-port design
• Primary port thread A: 7/16"-24
• Mounting hole quantity: 2
• Mounting hole diameter: 0.469
• Part number MC9219 for catalog and interchange lookup

Product Details

The MC9219 is a brake master cylinder designed to convert pedal force into hydraulic pressure for the brake system. Its iron construction supports the demands of daily braking, while the 1.000-inch bore size and two-port layout help match the original hydraulic configuration in the correct vehicle application. Raybestos MC9219 is also cross-referenced under common aftermarket numbers, which helps when verifying a replacement during brake master cylinder service on a Honda Civic or similar application.

The Element3 product line is positioned as a Raybestos brake hydraulics offering for replacement work where fit, port configuration, and bore size must align with the original system. When selecting a master cylinder, matching the mounting hole pattern and primary port thread is essential for proper installation and brake line connection.

This part cross-references Anchor 9219 and Cardone Reman 10-29219 for the same application.

Common Reasons for Replacement

• Low or sinking brake pedal
• Internal hydraulic bypass in the master cylinder
• Brake fluid leakage around the master cylinder body
• Uneven or inconsistent brake pressure
• Brake warning symptoms tied to master cylinder wear

Installation Notes

Verify bore size, port thread, mounting hole diameter, and port count before installation. Bench bleeding the master cylinder before final installation helps remove trapped air from the hydraulic circuit and supports proper pedal feel. Confirm brake line routing and sealing surfaces during replacement, and inspect the rest of the brake hydraulics system for contamination or wear before returning the vehicle to service.

Quality Assurance

Raybestos is a recognized brake parts brand with coverage across brake hydraulics and replacement service components. The MC9219 is cataloged as a brake master cylinder in the Element3 line and is identified by part number MC9219 for accurate ordering and application matching.
