Raybestos PGD1411C Disc Brake Pad Set - Front or Rear

Raybestos Element3 Ceramic Brake Pads

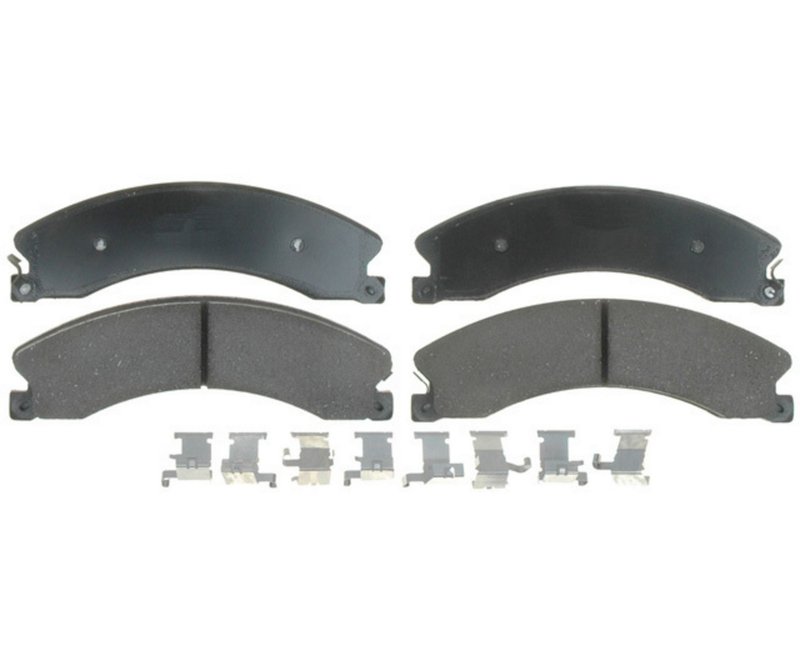

Raybestos PGD1411C is a ceramic disc brake pad set built for front and rear applications on select Chevrolet, GMC, and Nissan trucks and vans. It combines slotted friction material with attached shims to support consistent braking performance and quieter operation in everyday driving and heavy-duty use.

The Element3; Ceramic line focuses on OE-style fit and dependable stopping power for vehicles such as the Chevrolet Silverado 2500 HD, GMC Sierra 3500 HD, and Nissan TITAN XD. If you are replacing worn pads on a front or rear axle, PGD1411C provides a direct-fit solution for many 2009-2023 applications.

Key Features

• Ceramic friction material for stable braking characteristics
• Slotted pad design to help manage heat and surface debris
• Pad shims included and attached for added noise control
• Integrally molded friction material attachment
• Direct-fit disc brake pad set for front and rear applications
• Raybestos Element3; Ceramic product line
• Part number PGD1411C

Product Details

PGD1411C uses ceramic friction material with a slotted surface and staked shim attachment. The pad dimensions measure 2.600 inches in height, 7.950 inches in width, and 0.775 inches in overall thickness for both inner and outer pads. This design supports consistent contact and a clean fit on the listed applications. This part cross-references Bosch BC1411 and PowerStop 16-1411 for the same application.

What This Brake Pad Set Helps Address

• Worn front or rear brake pads on Chevrolet Silverado 2500 HD and Silverado 3500 HD models
• Brake noise from pads that no longer have effective shim support
• Reduced braking consistency caused by worn friction material
• Heat buildup and surface glazing on heavy-duty truck brake systems
• Replacement needs on Nissan NV1500, NV2500, NV3500, and TITAN XD brake systems

Installation Notes and Fitment

Compatible With select front and rear brake applications. Fitment includes 2020-2023 Nissan TITAN XD, front; 2021 Nissan NV1500, front; 2021 Nissan NV2500, front; 2021 Nissan NV3500, front; 2015-2020 Chevrolet Express 3500, rear with dual rear wheels; 2019-2020 GMC Savana 3500, rear with dual rear wheels; 2014-2020 Nissan NV1500, front; 2012-2020 Nissan NV2500, front; 2014-2020 Nissan NV3500, front; 2015-2019 Chevrolet Silverado 2500 HD, front and rear; 2015-2019 Chevrolet Silverado 3500 HD, front and rear; 2016-2019 Chevrolet Suburban 3500 HD, front and rear; 2015-2019 GMC Sierra 2500 HD, front and rear; 2015-2019 GMC Sierra 3500 HD, front and rear; 2016-2019 Nissan TITAN XD, front; 2018 GMC Savana 3500, rear dual rear wheels; 2017 GMC Savana 3500, rear with 14,050 GVW; 2011-2016 Chevrolet Silverado 3500 HD, rear; 2009-2016 GMC Savana 3500, rear with dual rear wheels and OEM ceramic pads; 2015-2016 GMC Sierra 3500 HD, rear; 2011-2013 GMC Sierra 3500 HD, rear; 2015 GMC Sierra 2500 HD, rear mid year; 2015 GMC Sierra 2500 HD, rear excluding mid model year; 2009-2014 Chevrolet Express 3500, rear with dual rear wheels and OEM ceramic pads; 2011-2014 Chevrolet Silverado 2500 HD, front and rear; 2011-2014 Chevrolet Silverado 3500 HD, front; 2011-2014 GMC Sierra 2500 HD, front and rear; 2011-2014 GMC Sierra 3500 HD, front; 2014 GMC Sierra 3500 HD, rear with dual rear wheels to 08/2014; 2014 GMC Sierra 3500 HD, rear not compatible with dual rear wheels; 2012-2013 Nissan NV1500, front; and 2012-2013 Nissan NV3500, front.

Before installation, confirm axle position, dual rear wheel configuration, and any model-year notes such as mid-year or GVW-specific coverage. Inspect rotors, calipers, and hardware condition before installing new pads.

Quality Assurance

Raybestos Element3; Ceramic brake pads are engineered as a direct-fit replacement line for listed applications, with OE-style dimensions and pad shims included for consistent installation and braking feel.
