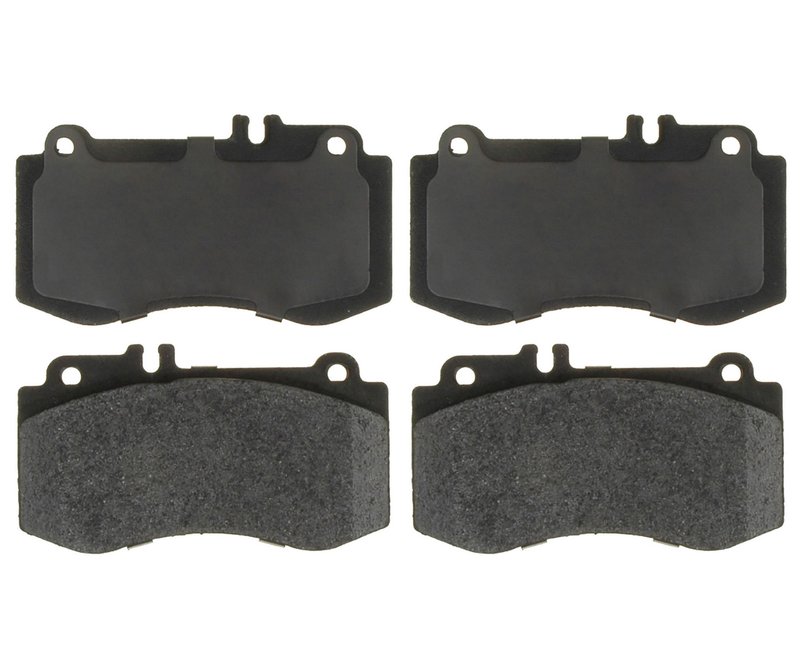

Raybestos PGD1420M Disc Brake Pad Set - Front

Overview of Raybestos Element3 Metallic Disc Brake Pads

The Raybestos Element3; Metallic disc brake pad set (Part Number PGD1420M) is designed specifically for Mercedes-Benz E400 and E550 models. These metallic friction pads provide reliable braking performance with features tailored to maintain consistent stopping power and durability.

• Metallic friction material for enhanced heat resistance and durability
• Chamfered edges to reduce noise and vibration
• Pad shims included and clipped for noise reduction
• Unslotted friction material for smooth braking feel
• Compatible with Mercedes-Benz E400 and E550 models

Element3; Metallic Product Line Details

The Element3; Metallic line from Raybestos focuses on delivering a balance of performance and longevity through integrally molded metallic friction material. This design improves pad wear consistency and heat dissipation, making it suitable for vehicles like the Mercedes-Benz E400 and E550 that demand reliable braking under varied driving conditions.

Product Specifications and Features

This disc brake pad set features integrally molded metallic friction material, which enhances pad durability and heat management. Both inner and outer pads measure 3.140 inches in height and 5.580 inches in width, with an overall thickness of 0.640 inches. The pads include chamfered edges to minimize noise and vibration during braking. Pad shims are attached using a clipped method to further reduce brake noise. Note that this set does not include pad wear sensors, mounting hardware, or slotted friction material.

Applications and Problem Solving

• Replacement for worn or damaged disc brake pads on Mercedes-Benz E400 and E550
• Addresses brake noise issues through chamfered edges and attached shims
• Improves braking consistency and heat resistance with metallic friction material
• Helps maintain proper brake pad fit and function without the need for additional hardware

Installation Notes and Tips

When installing the Raybestos PGD1420M disc brake pads, ensure the brake system is clean and free of debris. Since mounting hardware is not included, reuse existing hardware if in good condition or source replacements separately. The included clipped pad shims should be properly seated to reduce noise. Verify pad orientation by matching the chamfered edges and dimensions to the vehicle’s specifications.

Quality Assurance and Warranty

Raybestos disc brake pads undergo rigorous quality control to meet OEM standards for fit and performance. The Element3; Metallic line is engineered for consistent wear and reliable braking. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship.
