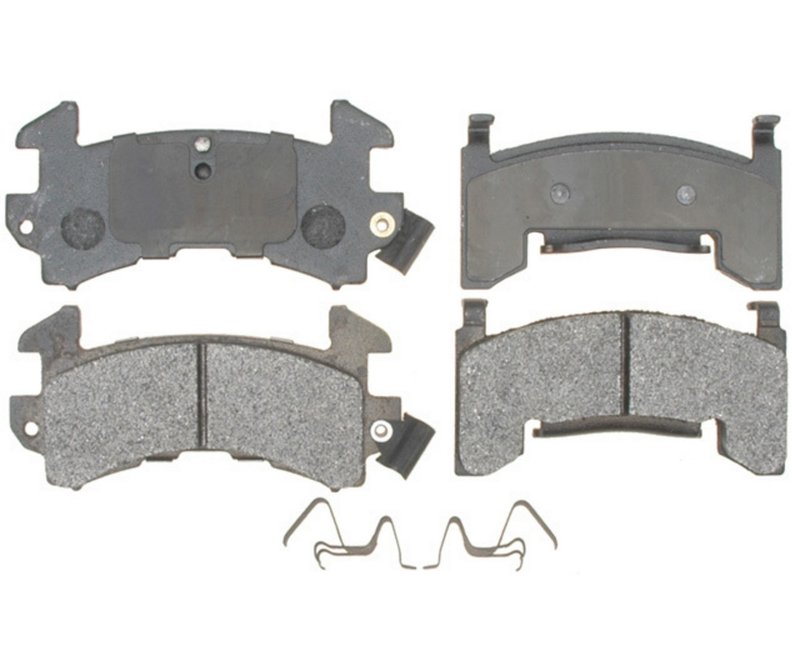

Raybestos PGD154M Disc Brake Pad Set - Front or Rear

Raybestos PGD154M Front Disc Brake Pads

Raybestos PGD154M is a front disc brake pad set from the Element3; Metallic line, built for vehicles that use disc brake systems and a metallic friction formula. It is a direct-fit option for a wide range of Chevrolet, GMC, Pontiac, Buick, Cadillac, Oldsmobile, and Isuzu applications, including Chevrolet S10, GMC Sonoma, and Chevrolet Camaro front brake service.

Key Features

• Element3; Metallic friction material for consistent braking performance
• Fits front disc brake applications across multiple GM platforms
• Pad shims included and attached for a more complete pad assembly
• Integrally molded friction material attachment
• Unslotted pad design with no chamfered edges
• FMSI number D154-L7070 for application matching
• Raybestos PGD154M cross-references common aftermarket part numbers such as Bosch BP154 and Wagner Brake MX154

Element3; Metallic Product Line

The Raybestos Element3; Metallic line is focused on metallic friction construction for drivers who need a pad set matched to specific disc brake applications. PGD154M uses a metallic friction material composition with included shims to support proper pad fitment and brake system service on selected front axle applications.

Detailed Description

PGD154M is engineered as a front disc brake pad set for many 1978-2002 GM passenger cars and trucks, plus select Isuzu Hombre applications. Confirmed fitment includes 1982-2002 Chevrolet S10, 1991-2002 GMC Sonoma, 1995-1997 Chevrolet Blazer, 1992-1997 GMC Jimmy, 1988-1992 Chevrolet Camaro, and 1988-1992 Pontiac Firebird front brake systems. It also covers classic applications such as 1978-1988 Chevrolet Monte Carlo, 1978-1987 Buick Regal, and 1979-1985 Cadillac Eldorado.

This part number, Raybestos PGD154M, is built around the D154-L7070 pad shape and is listed with staked shim attachment, attached shims, and no wear sensor provision. The pad dimensions are specific to the application, helping support proper caliper clearance and brake pad alignment during service.

What It Helps Address

• Front brake pad wear on disc brake-equipped Chevrolet S10 and GMC Sonoma models
• Brake service needs on Camaro and Firebird front caliper applications
• Replacement of worn pads on older GM A-body and G-body vehicles
• Noise concerns when replacing pads that require shim-equipped assemblies
• Routine front brake maintenance on compatible Cadillac, Buick, Oldsmobile, and Pontiac vehicles

Installation Notes and Tips

Verify caliper type, rotor condition, and pad shape before installation. This pad set is listed for front positions on the applications shown, including vehicles with single-piston calipers where noted. Because mounting hardware is not included, reuse or replace hardware separately as needed during brake service. Always inspect the brake system for uneven wear, rotor scoring, and caliper slide condition before returning the vehicle to service.

Quality Assurance

Raybestos brake components are cataloged by FMSI shape and vehicle-specific fitment data to support accurate parts selection. PGD154M is identified as an Element3; Metallic pad set with attached shims and application-specific dimensions for the listed vehicles.
