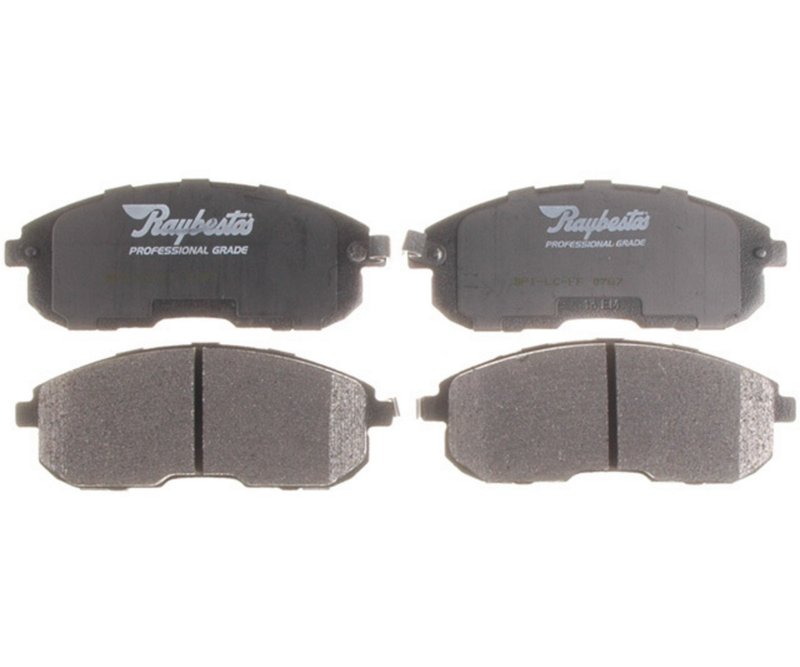

Raybestos PGD815M Disc Brake Pad Set - Front

Raybestos PGD815M Front Disc Brake Pads

Raybestos PGD815M is a front disc brake pad set built with metallic friction material for Nissan and INFINITI applications that call for a more aggressive pad compound. It features slotted friction surfaces, chamfered edges, and attached pad shims to support consistent contact and controlled noise characteristics.

This Raybestos metallic brake pad set is a direct-fit option for front brake service on select Nissan Altima, Sentra, Juke, Cube, Maxima, 350Z, and INFINITI G35 and I30 applications. The PGD815M part number is also listed with multiple cross-reference numbers used in the same application family.

Key Features

• Metallic friction material for front disc brake service
• Slotted pad design for improved surface management
• Chamfered edges for smoother pad engagement
• Pad shims included and attached
• Integrally molded friction material attachment
• Outer and inner pad dimensions: 2.140 in height, 5.400 in width, 0.240 in thickness
• No pad wear sensor included
• No mounting hardware included

Product Details

Raybestos PGD815M is engineered as a front disc brake pad set with metallic friction material and slotted construction. The pad shape includes chamfered edges and staked shim attachment, with shims already attached to help maintain a stable pad-to-caliper interface. This configuration is suited to drivers servicing front brakes on 2000-2001 INFINITI I30, 2000-2001 Nissan Maxima, 2003-2005 Nissan 350Z, 2003-2004 INFINITI G35, 2005 INFINITI G35, 2007-2013 Nissan Altima, 2007-2012 Nissan Sentra, 2009-2010 Nissan Cube, 2011-2017 Nissan Juke, and 2017-2019 Nissan Sentra. This part number, PGD815M, is also associated with several aftermarket cross-references for the same front brake applications.

This part cross-references Bosch (e.g., 8154, BC815) for the same application.

What It Helps Address

• Front brake pad wear during routine brake service
• Brake noise related to worn or uneven pad surfaces
• Reduced braking response from depleted friction material
• Uneven pad contact caused by damaged or missing shims
• Service replacement needs on Nissan Altima, Sentra, Juke, Cube, Maxima, 350Z, and INFINITI G35 or I30 front brakes

Installation Notes and Tips

• Verify caliper style and pad shape before installation, especially on 350Z and G35 applications noted with single-piston calipers.
• Inspect rotors, caliper hardware, and slide components during brake service.
• Because mounting hardware is not included, reuse or replace hardware as needed based on vehicle condition.
• Confirm the vehicle uses front pads with the listed dimensions before ordering PGD815M.
• Follow the vehicle manufacturer’s brake bedding procedure after installation.

Quality Assurance

Raybestos brake components are built for direct replacement use in listed applications, with fitment coverage for select Nissan and INFINITI front brake systems. PGD815M is a metallic, slotted pad set with attached shims and chamfered edges for a service-ready brake repair.
