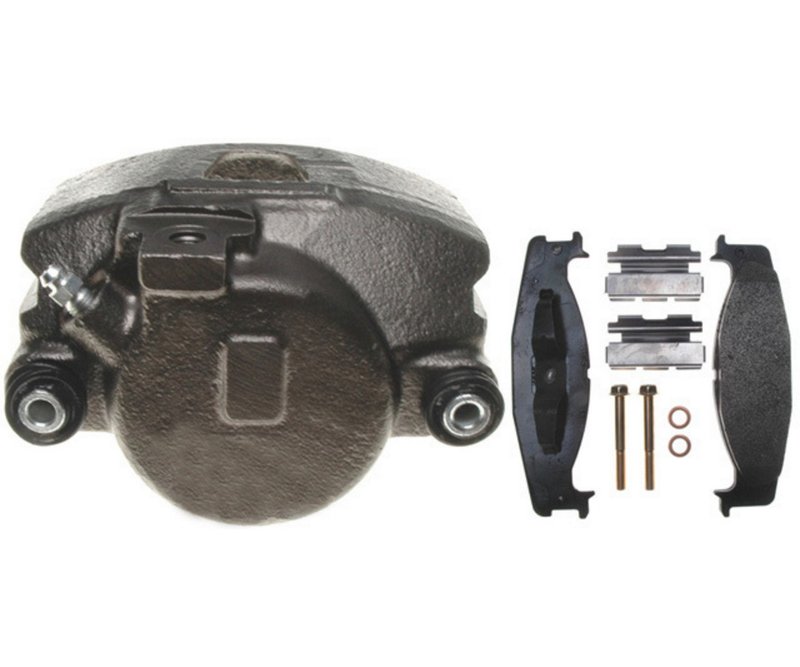

Raybestos RC10509 Disc Brake Caliper - Front Right
| Brand | Raybestos RC10509 |
|---|---|
| Position | Front Right |
| Friction Material | Hybrid |
| Caliper Casting Material | Cast iron |
| Caliper Type | Floating |
| Caliper Piston Quantity | 1 |
| Bleeder Screw Thread | 3/8"-24 |
| Caliper Configuration | Loaded |
| Caliper Piston Diameter | 2.874 |
| Caliper Piston Diameter | 73.000 |
| Manufacturing Type | Remanufactured |
| Surface Finish | Plain |
| Product line | R-Line; Loaded Caliper, Remanufactured |
| Fits | Ford · 32 vehicles |
Loaded caliper. Includes friction material for a ready-to-install brake service.
Remanufactured construction. Restored for dependable performance with a plain finish.
Cast iron body. Floating design with a single piston for consistent braking action.
Cross-references AMS Automotive 6352, BBB Industries 97-17848A and BBB Industries 97-17848B for the same application. See all 43.
Raybestos RC10509 Loaded Caliper
Raybestos RC10509 is a remanufactured loaded disc brake caliper for the front right position on select Ford trucks and vans. Built with a cast iron floating caliper body and a hybrid friction material, it is specified for direct brake service on applications such as the Ford F-150, Ford Bronco, and Ford E-150 Econoline.
Key Features
- Loaded disc brake caliper for front right brake service
- Remanufactured Raybestos R-Line caliper
- Cast iron floating caliper design
- Single piston design with 2.874 in. / 73.000 mm piston diameter
- Hybrid friction material
- Plain surface finish
- Bleeder screw thread: 3/8"-24
R-Line Product Line Details
The Raybestos R-Line focuses on remanufactured brake components for everyday repair work. RC10509 follows that approach with a loaded caliper configuration, a floating design, and a cast iron housing for service on Ford front brake systems. The part number RC10509 is also referenced in interchange listings for cross-checking during brake caliper replacement.
Fitment
- Fits 2003 Ford E-150, front right.
- Fits 2003 Ford E-150 Club Wagon, front right.
- Fits 1999-2003 Ford Econoline, front right.
- Fits 2002 Ford E-150, front right.
- Fits 1994-2002 Ford E-150 Econoline, front right.
- Fits 1994-2002 Ford E-150 Econoline Club Wagon, front right.
- Fits 1994-1996 Ford Bronco, front right.
- Fits 1994-2002 Ford F-150, front right.
Common Brake Issues This Caliper Addresses
- Sticking or seized front right caliper movement
- Uneven brake pad wear on the passenger-side front brake
- Brake pull caused by caliper drag or piston issues
- Brake fluid leakage at the caliper assembly
- Reduced braking response from worn hydraulic components
Installation Notes
Verify front right fitment by year, make, and model before installation. Confirm the bleeder screw thread, piston diameter, and caliper mounting orientation against the original part. After installation, bleed the brake system and inspect for leaks, pad contact, and proper rotor clearance.
Quality Assurance
Raybestos remanufactured brake components are built for service replacement applications and are identified here by part number RC10509 for accurate ordering and fitment verification. Cross-reference part numbers include Cardone Reman 18-4390 and Centric Parts 141.65027.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Ford | E-150 | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2003 | Ford | E-150 Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2003 | Ford | Econoline | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 2002 | Ford | E-150 | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 2002 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2002 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2002 | Ford | Econoline | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 2001 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2001 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2001 | Ford | Econoline | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 2000 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2000 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 2000 | Ford | Econoline | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 1999 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1999 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1999 | Ford | Econoline | Front Right | Replaces RC10509SS; Raybestos R-Line |
| 1998 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1998 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1997 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1997 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1996 | Ford | Bronco | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1996 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1996 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1996 | Ford | F-150 | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1995 | Ford | Bronco | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1995 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1995 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1995 | Ford | F-150 | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1994 | Ford | Bronco | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1994 | Ford | E-150 Econoline | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1994 | Ford | E-150 Econoline Club Wagon | Front Right | R-Line; Loaded Caliper, Remanufactured |
| 1994 | Ford | F-150 | Front Right | R-Line; Loaded Caliper, Remanufactured |
