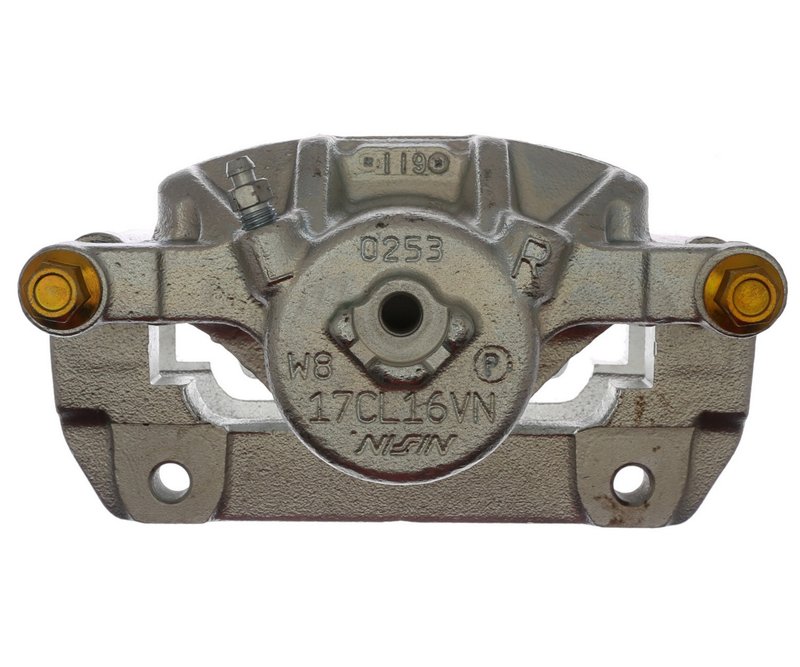

Raybestos RC11119C Disc Brake Caliper - Front Left
| Brand | Raybestos RC11119C |
|---|---|
| Position | Front Left |
| Friction Material | Hybrid |
| Caliper Casting Material | Cast iron |
| Caliper Type | Floating |
| Caliper Piston Quantity | 1 |
| Bleeder Screw Thread | M10x1.25 |
| Caliper Bracket Mounting Hole Size | 12.000 |
| Caliper Bracket Mounting Hole Thread Pitch | 1.250 |
| Caliper Configuration | Loaded |
| Caliper Piston Diameter | 2.248 |
| Caliper Piston Diameter | 57.100 |
| Manufacturing Type | Remanufactured |
| Surface Finish | Coated |
| Product line | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| Fits | Acura and Honda · 46 vehicles |
Remanufactured loaded caliper. Includes bracket for a complete brake service.
Coated cast iron. Helps resist corrosion while maintaining strength.
Floating design. Promotes even pad contact for consistent braking.
Cross-references BBB Industries 99-00933A, Cardone Reman 19-B2584 and Cardone Ultra 19-P2584 for the same application. See all 8.
Raybestos RC11119C Front Left Loaded Caliper
The Raybestos R-Line RC11119C is a remanufactured front left disc brake caliper built for select Acura and Honda applications. It includes a coated surface finish, a cast iron caliper body, and a floating caliper design with a single 57.1 mm piston for consistent brake service on the front left corner.
Raybestos R-Line focuses on remanufactured brake hydraulics for direct replacement needs. This loaded caliper is built for vehicles that require a front left disc brake caliper with bracket mounting and a hybrid friction material setup.
Key Features
- Raybestos R-Line loaded disc brake caliper
- Part number RC11119C
- Remanufactured cast iron caliper body
- Floating caliper design with 1 piston
- 57.1 mm piston diameter
- Coated surface finish for added corrosion resistance
- Bleeder screw thread: M10x1.25
- Includes bracket
- Hybrid friction material
Detailed Description
The RC11119C is a front left brake caliper assembly for select 1999-2014 Acura and Honda vehicles, including Acura TL, RL, CL, TSX, and Honda Accord applications. As a loaded caliper, it is configured for direct brake service where the caliper assembly and bracket are specified together. The cast iron construction and coated finish support long-term durability in demanding brake environments.
This part cross-references Cardone Reman 19-B2584 and Centric Parts 141.40034 for the same application. If you are replacing a worn front left caliper on an Acura TL or Honda Accord, RC11119C provides the correct fitment profile for the listed vehicles.
Common Problems This Part Can Address
- Front left brake drag caused by a sticking caliper piston
- Uneven braking from a worn or corroded caliper body
- Brake fluid leakage at the caliper assembly
- Noise or vibration related to caliper wear
- Brake service needs on Acura TL, RL, CL, TSX, or Honda Accord front left applications
Installation Notes and Tips
Verify the vehicle’s front left brake configuration before ordering. Confirm piston diameter, bracket mounting dimensions, and bleeder screw thread match the original setup. After installation, bleed the brake system according to factory service procedures and inspect for leaks, pad contact, and proper rotor clearance.
Quality Assurance
Raybestos R-Line remanufactured brake components are built for direct replacement use in specified applications. The coated finish and remanufactured construction support consistent service performance when installed on the listed Acura and Honda models.
| Year | Make | Model | Submodel | Body Type | # Doors | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2014 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2013 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2012 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2012 | Honda | Accord | EX | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2012 | Honda | Accord | EX-L | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2011 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2011 | Honda | Accord | EX | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2011 | Honda | Accord | EX-L | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2010 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2010 | Honda | Accord | EX | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2010 | Honda | Accord | EX-L | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2009 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2009 | Honda | Accord | EX-L | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2009 | Honda | Accord | EX | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2008 | Acura | TL | Base | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2008 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2008 | Honda | Accord | EX | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2008 | Honda | Accord | EX-L | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2007 | Acura | TL | Base | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2007 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2007 | Honda | Accord | Hybrid | — | — | — | 3.0L | V6 | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2007 | Honda | Accord | EX | — | 2 Door | Manual | 3.0L | V6 | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2006 | Acura | TL | — | — | — | Automatic | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2006 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2006 | Honda | Accord | Hybrid | — | — | — | 3.0L | V6 | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2005 | Acura | TL | — | — | — | Automatic | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2005 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2005 | Honda | Accord | EX | — | 2 Door | Manual | 3.0L | V6 | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2004 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2004 | Acura | TL | — | — | — | Automatic | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2004 | Acura | TSX | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2004 | Honda | Accord | — | Coupe | — | Manual | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2003 | Acura | CL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2003 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2003 | Acura | TL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2003 | Honda | Accord | — | Coupe | — | Manual | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2002 | Acura | CL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2002 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2002 | Acura | TL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2001 | Acura | CL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2001 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2001 | Acura | TL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2000 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 2000 | Acura | TL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 1999 | Acura | RL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
| 1999 | Acura | TL | — | — | — | — | — | — | Front Left | R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated |
