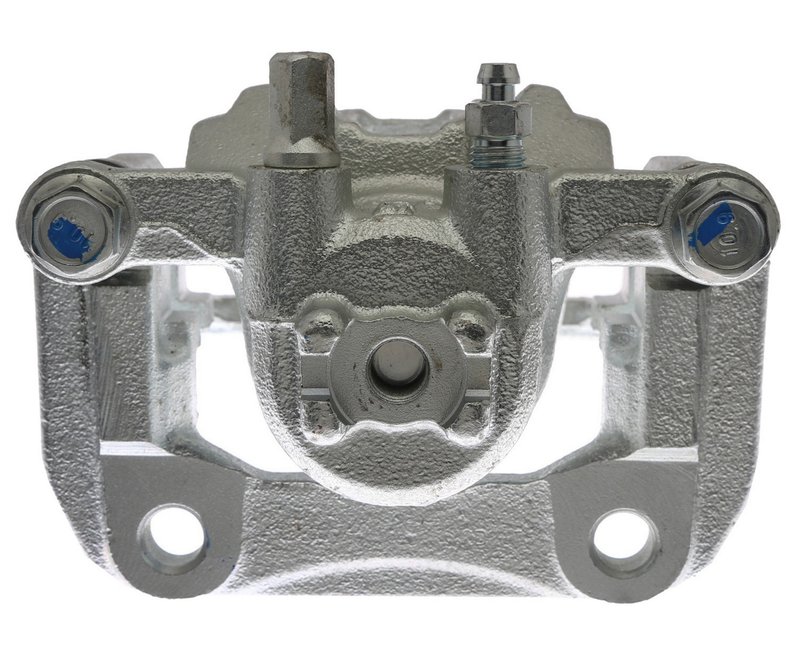

Raybestos RC11852C Disc Brake Caliper - Rear Left

Overview of Raybestos RC11852C Disc Brake Caliper

The Raybestos RC11852C is a remanufactured disc brake caliper designed for reliable braking performance on Acura and Honda vehicles. Engineered with a coated finish and loaded with a bracket, this floating caliper is built to meet the demands of models like the Accord Crosstour, CR-V, and RDX.

• Remanufactured floating disc brake caliper with one piston
• Constructed from durable cast iron for strength and longevity
• Hybrid friction material for balanced braking performance
• Includes bracket and features a coated surface finish for corrosion resistance
• Bleeder screw thread size M10x1.25 for standard brake bleeding
• Caliper piston diameter of 1.5 inches (38.1 mm)
• Caliper bracket mounting hole size 12.000 mm with 1.250 thread pitch

R-Line Loaded Caliper Product Line Details

This caliper is part of the Raybestos R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated product line, which offers remanufactured calipers that come pre-loaded with brackets and feature a protective coating. This line is designed to provide a direct replacement solution that simplifies installation and ensures compatibility with specific vehicle applications, including Acura and Honda models.

Technical Description and Features

The RC11852C disc brake caliper utilizes a floating design with a single piston measuring 1.5 inches in diameter, providing consistent clamping force for effective braking. The caliper body is made from cast iron, offering durability and resistance to wear under normal operating conditions. The hybrid friction material enhances braking response and pad life. The coated surface finish helps protect against corrosion, extending the service life of the caliper assembly. The included bracket and precise mounting hole specifications (12.000 mm hole size with 1.250 thread pitch) ensure proper fitment and alignment on compatible vehicles.

Compatible Vehicles and Common Applications

• Replacement caliper for Acura Accord Crosstour models requiring a remanufactured floating caliper
• Suitable for Honda CR-V vehicles needing a coated disc brake caliper with bracket
• Fits Honda RDX models where a hybrid friction material caliper is specified
• Addresses issues such as uneven brake pad wear, brake fluid leaks, and reduced braking efficiency
• Ideal for restoring braking performance on vehicles with worn or damaged calipers

Installation Notes and Tips

When installing the Raybestos RC11852C caliper, ensure the brake system is properly bled using the M10x1.25 bleeder screw thread to remove air and maintain hydraulic pressure. Verify that the caliper bracket mounting holes align correctly with the vehicle’s mounting points. It is recommended to inspect brake pads and rotors for wear and replace if necessary to ensure optimal braking performance. Use appropriate torque specifications for mounting bolts to avoid damage or misalignment.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The coated finish provides additional corrosion resistance to extend service life. Raybestos offers a limited warranty on the RC11852C part number, covering defects in materials and workmanship under normal use conditions. Refer to Raybestos warranty documentation for specific terms and coverage details.
