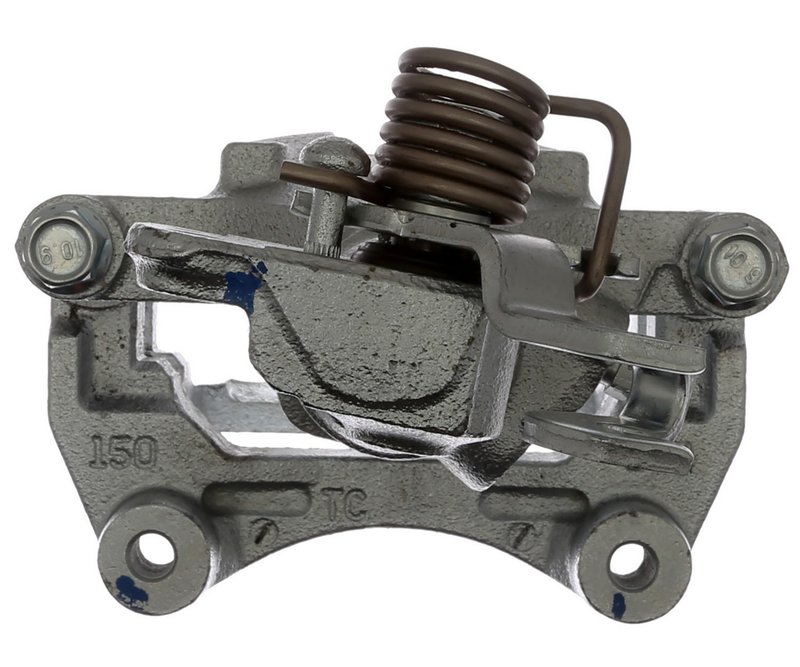

Raybestos RC11932C Disc Brake Caliper - Rear Right

Overview of Raybestos R-Line Loaded Caliper RC11932C

The Raybestos R-Line Loaded Caliper, part number RC11932C, is a remanufactured disc brake caliper designed for select Ford, Lincoln, Mazda, and Mercury vehicles. This integral parking brake caliper features a durable cast iron construction and a coated surface finish to resist corrosion and extend service life.

• Remanufactured disc brake caliper with integral parking brake
• Cast iron caliper casting material for strength and durability
• Hybrid friction material for balanced braking performance
• Includes bracket and bleeder screw with M10x1 thread
• Coated surface finish to protect against rust and wear
• Loaded caliper configuration with one piston (1.335 inch diameter)
• Compatible with Ford Fusion, Lincoln MKZ, Mazda 6, Mercury Milan, and Zephyr models

Details on the R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated

The R-Line product line from Raybestos offers remanufactured loaded calipers that come complete with brackets and feature a protective coating. This ensures the caliper is ready for installation and provides enhanced resistance to environmental factors. The loaded design means the caliper includes the piston and seals pre-installed, simplifying replacement and reducing installation time.

Technical Specifications and Features

This disc brake caliper uses a cast iron casting material known for its durability under high heat and stress conditions. The integral parking brake design incorporates the parking brake mechanism within the caliper assembly, eliminating the need for separate components. The caliper piston diameter measures 1.335 inches, providing reliable clamping force. The hybrid friction material balances wear resistance and braking efficiency. The bleeder screw thread size is M10x1, and the bracket mounting holes have a 10.000 mm diameter with a 1.250 thread pitch, ensuring proper fitment and secure mounting.

Compatible Vehicles and Applications

• Ford Fusion
• Lincoln MKZ
• Mazda 6
• Mercury Milan
• Mercury Zephyr

This caliper is designed specifically for these models, providing a direct replacement for the original equipment part number RC11932C.

Common Issues Addressed by This Caliper

• Brake drag or sticking caliper pistons
• Leaking brake fluid from worn seals
• Corroded or damaged caliper housing
• Malfunctioning integral parking brake mechanism
• Uneven brake pad wear due to caliper failure

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the hydraulic lines. Verify the bleeder screw thread size (M10x1) matches your vehicle’s specifications. Inspect mounting bracket holes for correct alignment with the 10.000 mm diameter and 1.250 thread pitch. Use appropriate torque specifications for mounting bolts to avoid damage. This caliper comes loaded and coated, reducing preparation time before installation.

Quality Assurance and Warranty

Raybestos remanufactured calipers undergo rigorous testing to meet OEM standards for performance and durability. The coated surface finish helps prevent corrosion, extending the caliper’s service life. While specific warranty details are not provided here, Raybestos products typically include a limited warranty covering defects in materials and workmanship.
