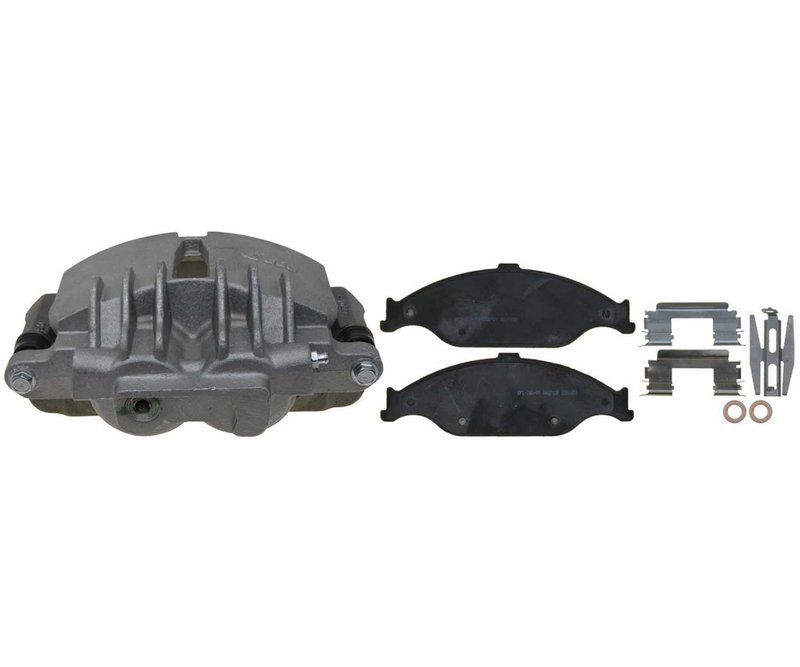

Raybestos RC12194 Disc Brake Caliper - Front Left

Overview of Raybestos RC12194 Disc Brake Caliper

The Raybestos RC12194 is a remanufactured disc brake caliper designed specifically for Ford Mustang models. Engineered with a floating caliper design and hybrid friction material, this caliper offers reliable braking performance and durability for your vehicle.

• Remanufactured floating disc brake caliper with bracket included
• Constructed from lightweight aluminum casting material
• Equipped with two 45 mm diameter pistons for balanced braking force
• Hybrid friction material for consistent stopping power
• Bleeder screw with M10x1.5 thread for easy maintenance
• Caliper bracket mounting hole size of 12.000 mm with 1.750 thread pitch
• Plain surface finish for corrosion resistance and durability

Details on the R-Line Loaded Caliper, Remanufactured, Includes Bracket

This caliper is part of the Raybestos R-Line; Loaded Caliper, Remanufactured; Includes Bracket product line, which focuses on providing fully assembled, remanufactured calipers that come complete with the mounting bracket. This ensures a streamlined installation process and compatibility with specific vehicle applications, such as the Ford Mustang. The R-Line series emphasizes quality remanufacturing standards and includes components that meet or exceed original equipment specifications.

Technical Specifications and Features

The RC12194 disc brake caliper features a floating caliper type constructed from aluminum, which reduces unsprung weight and improves heat dissipation. It includes two pistons, each with a diameter of 45 mm (1.772 inches), designed to apply even pressure on the brake pads. The hybrid friction material enhances braking performance by balancing wear resistance and stopping power. The caliper bracket mounting holes measure 12.000 mm with a thread pitch of 1.750, ensuring precise fitment. Additionally, the bleeder screw uses an M10x1.5 thread, facilitating proper brake fluid bleeding during maintenance.

Applications and Problem Solving

• Replacement for worn or seized floating calipers on Ford Mustang models
• Restores proper brake pad alignment and pressure distribution
• Addresses brake drag or uneven pad wear caused by faulty calipers
• Improves braking consistency and pedal feel in remanufactured brake systems
• Suitable for restoring braking performance after caliper corrosion or damage

Installation Notes and Tips

When installing the Raybestos RC12194 caliper on a Ford Mustang, ensure the mounting bracket is securely fastened using the specified 12.000 mm mounting holes with 1.750 thread pitch. Properly bleed the brake system using the M10x1.5 bleeder screw to remove air and maintain hydraulic integrity. Verify piston movement and pad alignment before completing installation. It is recommended to inspect brake pads and rotors for wear and replace if necessary to optimize braking performance.

Quality Assurance and Warranty

The Raybestos RC12194 is a remanufactured product that undergoes rigorous testing to meet OEM standards. The use of aluminum casting and hybrid friction materials ensures durability and consistent performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
