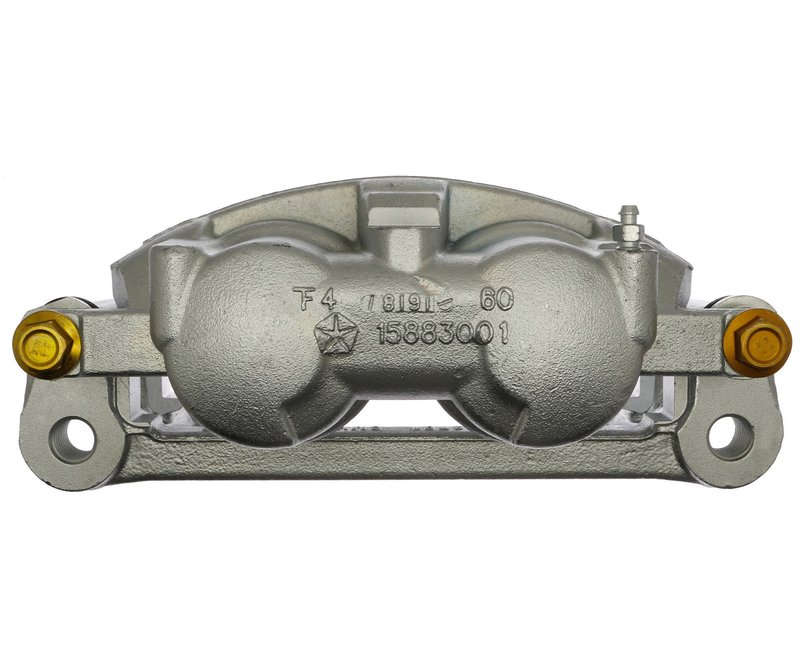

Raybestos RC12276C Disc Brake Caliper - Front Left

Reliable Disc Brake Caliper for Dodge Ram Trucks

The Raybestos RC12276C disc brake caliper is designed specifically for Dodge Ram 1500, 2500, and 3500 models. This remanufactured, loaded caliper includes the bracket and features a durable coated finish to ensure long-lasting performance in brake hydraulics systems.

• Remanufactured floating disc brake caliper with two pistons
• Constructed from cast iron for strength and durability
• Metallic friction material for consistent braking performance
• Includes caliper bracket with 16.000 mm mounting hole size and 2.500 mm thread pitch
• Coated surface finish to resist corrosion and wear
• Equipped with M10x1 bleeder screw thread for easy maintenance
• Caliper piston diameter of 2.358 inches (59.900 mm)

About the Raybestos R-Line Loaded Caliper

The R-Line; Loaded Caliper, Remanufactured; Includes Bracket; Coated product line from Raybestos offers remanufactured brake calipers that come fully loaded with pistons and hardware, including the mounting bracket. This ensures a complete replacement solution that meets factory specifications. The coated finish provides added protection against rust and corrosion, making it suitable for demanding driving conditions often encountered by Dodge Ram trucks.

Technical Details and Features

This floating type disc brake caliper is built with cast iron casting material, providing the necessary strength to withstand the rigors of braking. The metallic friction material enhances braking efficiency and durability. The caliper features two pistons with a diameter of 2.358 inches, delivering balanced clamping force. The included bracket has a mounting hole size of 16.000 mm and a thread pitch of 2.500 mm, ensuring proper fitment and secure installation. The M10x1 bleeder screw thread allows for straightforward brake fluid bleeding during maintenance.

Common Applications and Problem Solving

• Replacement for worn or seized calipers on Dodge Ram 1500, 2500, and 3500 models
• Addresses uneven brake pad wear caused by faulty calipers
• Resolves brake fluid leaks from damaged piston seals
• Improves braking response and pedal feel in trucks with aging brake components
• Prevents corrosion-related caliper failure with coated surface finish

Installation Notes and Tips

Ensure compatibility with your specific Dodge Ram model and year before installation. Properly torque the caliper bracket mounting bolts to manufacturer specifications using the 16.000 mm hole size and 2.500 mm thread pitch. Bleed the brake system thoroughly using the M10x1 bleeder screw thread to remove air and maintain optimal brake performance. Inspect brake pads and rotors for wear and replace if necessary during caliper installation.

Quality Assurance and Warranty

The Raybestos RC12276C remanufactured disc brake caliper undergoes rigorous testing to meet OEM standards. The coated finish protects against corrosion, extending the service life of the caliper. While specific warranty details may vary, Raybestos products typically include a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
