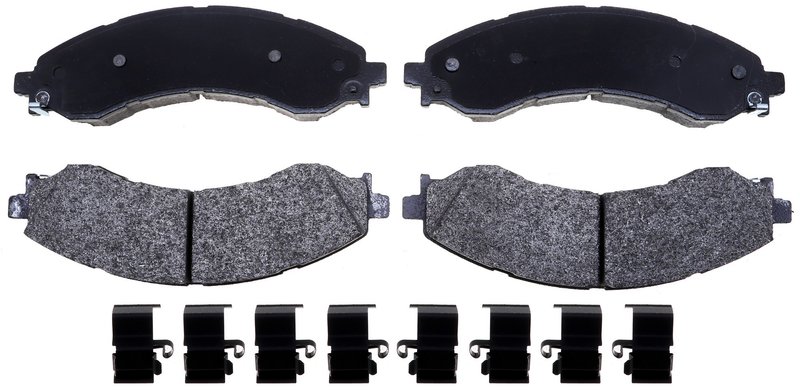

Raybestos SP2404TRH Disc Brake Pad Set - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos Specialty - Truck

Raybestos SP2404TRH Disc Brake Pad Set - Front

Brand Raybestos SP2404TRH
Position Front
Pad Wear Sensor Included Yes
Slotted Yes
Friction Material Composition Semi-metallic
Mounting Hardware Included Yes
Grade Type Regular
Pad Shims Included Yes
Pad Wear Sensor Type Mechanical
Chamfered Edges Yes
Prepared For Pad Wear Sensor Yes
Outer Pad Height 2.5
Outer Pad Height 63.5
Inner Pad Height 2.5
Inner Pad Height 63.5
Outer Pad Width 201.75
Outer Pad Width 7.943
Inner Pad Width 201.75
Inner Pad Width 7.943
Outer Pad Overall Thickness 0.735
Inner Pad Overall Thickness 0.735
Friction Material Slot Type Slotted
Pad Shim Attachment Type Staked
Pad Shims Attached Y
Pad Wear Sensor Attached Y
Product line Raybestos Specialty - Truck
Fits Chevrolet and GMC · 27 vehicles

Semi-metallic pads. Deliver dependable braking performance with a regular-grade compound.

Slotted design. Helps manage heat and maintain consistent pad contact.

Includes hardware. Comes with shims and a mechanical wear sensor.

Cross-references Centric Parts 106.24040, 84776469 and 86573500 for the same application. See all 9.

$128.17Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $128.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Pad Set options

Front Disc Brake Pads for Express and Savana

Raybestos Specialty - Truck SP2404TRH is a front disc brake pad set built for Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 2500, and GMC Savana 3500 applications from 2021-2025. It combines semi-metallic friction, slotted pad faces, and chamfered edges for consistent braking performance in truck and van service.

Key Features

  • Fits 2021-2025 Chevrolet Express 2500, front
  • Fits 2021-2025 Chevrolet Express 3500, front
  • Fits 2021-2025 GMC Savana 2500, front
  • Fits 2021-2025 GMC Savana 3500, front
  • Semi-metallic friction material for dependable stopping performance
  • Slotted pad design with chamfered edges
  • Pad wear sensor included and prepared for sensor use
  • Mechanical pad wear sensor type
  • Pad shims included and attached
  • Mounting hardware included
  • Staked shim attachment for secure fitment

Product Details

Raybestos Specialty - Truck focuses on brake components for demanding truck and van duty, and SP2404TRH follows that approach with a regular-grade pad set engineered for front axle service. The pad measures 7.943 inches wide, 2.5 inches high, and 0.735 inches thick, with matching inner and outer pad dimensions for consistent contact and fit. This part cross-references Centric Parts 106.24040 for the same application.

Common Brake Issues It Can Address

  • Front brake noise from worn or uneven pad surfaces
  • Reduced braking response from depleted friction material
  • Brake vibration related to pad glazing or uneven wear
  • Wear indicator warnings on equipped vehicles
  • Service needs on high-use Chevrolet Express and GMC Savana front brakes

Installation Notes

Verify rotor condition, caliper operation, and pad fitment before installation. Clean the caliper bracket contact points, confirm the mechanical wear sensor is positioned correctly, and install the included shims and hardware as specified for the vehicle. SP2404TRH is a front brake pad set for 2021-2025 Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 2500, and GMC Savana 3500 applications.

Quality Assurance

Raybestos Specialty - Truck brake components are built for truck-focused service requirements and are backed by the brand’s product engineering standards. Part number SP2404TRH is listed with OE-style fitment coverage for the specified front applications.

Related reading

This part fits 27 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2025ChevroletExpress 2500FrontRaybestos Specialty - Truck
2025ChevroletExpress 3500FrontRaybestos Specialty - Truck
2025GMCSavana 2500FrontRaybestos Specialty - Truck
2025GMCSavana 3500FrontRaybestos Specialty - Truck
2024ChevroletExpress 2500FrontRaybestos Specialty - Truck
2024ChevroletExpress 3500FrontRaybestos Specialty - Truck
2024ChevroletExpress 4500FrontRaybestos Specialty - Truck
2024GMCSavana 2500FrontRaybestos Specialty - Truck
2024GMCSavana 3500FrontRaybestos Specialty - Truck
2024GMCSavana 4500FrontRaybestos Specialty - Truck
2023ChevroletExpress 2500FrontRaybestos Specialty - Truck
2023ChevroletExpress 3500FrontRaybestos Specialty - Truck
2023GMCSavana 2500FrontRaybestos Specialty - Truck
2023GMCSavana 3500FrontRaybestos Specialty - Truck
2023GMCSavana 4500FrontRaybestos Specialty - Truck
2022ChevroletExpress 2500FrontRaybestos Specialty - Truck
2022ChevroletExpress 3500FrontRaybestos Specialty - Truck
2022ChevroletExpress 4500FrontRaybestos Specialty - Truck
2022GMCSavana 2500FrontRaybestos Specialty - Truck
2022GMCSavana 3500FrontRaybestos Specialty - Truck
2022GMCSavana 4500FrontRaybestos Specialty - Truck
2021ChevroletExpress 2500FrontRaybestos Specialty - Truck
2021ChevroletExpress 3500FrontRaybestos Specialty - Truck
2021ChevroletExpress 4500FrontRaybestos Specialty - Truck
2021GMCSavana 2500FrontRaybestos Specialty - Truck
2021GMCSavana 3500FrontRaybestos Specialty - Truck
2021GMCSavana 4500FrontRaybestos Specialty - Truck
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 106.24040847764698657350086802977D2404SDDG2404FLD2404GMKD2404SM2404
