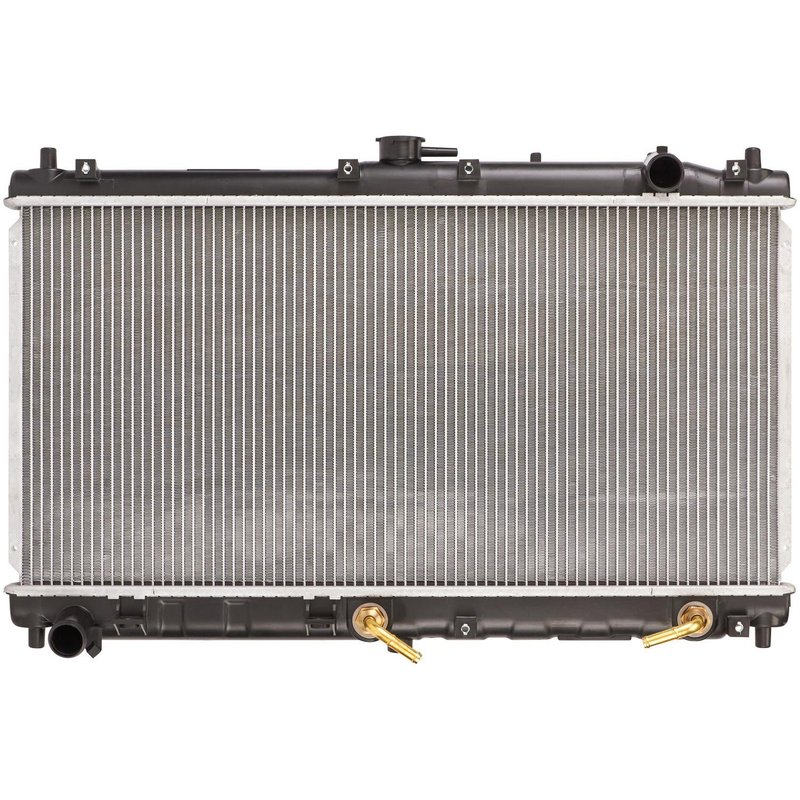

Reach Cooling 41-2268 Radiator

Overview of Reach Cooling Radiator 41-2268 for Mazda Miata

The Reach Cooling Radiator part number 41-2268 is designed specifically for Mazda Miata models, providing reliable engine cooling performance. This radiator features a durable aluminum core and plastic tanks, engineered to maintain optimal operating temperatures under various driving conditions.

• Core dimensions: 12 5/8 inches (320 mm) height, 25 1/8 inches (638 mm) width, and 5/8 inch (16 mm) thickness
• Aluminum core material for efficient heat dissipation
• Plastic tank construction for corrosion resistance
• Inlet located at top right with 1 1/4 inch (31.5 mm) diameter
• Outlet located at bottom left with 1 1/4 inch (31.5 mm) diameter
• Concentric transmission oil cooler with 10 13/16 inch (275 mm) fitting spacing
• Single core row design for balanced cooling
• Inlet and outlet header lengths of 26 3/8 inches with 1 15/16 inch width

Detailed Features of the Reach Cooling Radiator Line

The Reach Cooling Radiator product line focuses on delivering durable and efficient cooling solutions tailored to specific vehicle applications. The 41-2268 radiator incorporates a single-row aluminum core that balances heat transfer and structural integrity. Its plastic tanks reduce weight and resist corrosion, while the concentric transmission oil cooler integration supports automatic transmission cooling needs. This radiator is engineered to meet the thermal demands of the Mazda Miata, ensuring consistent engine performance and longevity.

Technical Description and Specifications

This radiator features a 12 5/8 inch (320 mm) core height and 25 1/8 inch (638 mm) core width, with a thickness of 5/8 inch (16 mm). The aluminum core material enhances heat dissipation efficiency, while the plastic tanks provide durability against environmental factors. The inlet is positioned at the top right with a 1 1/4 inch (31.5 mm) diameter, and the outlet is located at the bottom left, also with a 1 1/4 inch diameter. The inlet and outlet headers measure 26 3/8 inches in length and 1 15/16 inches in width. Additionally, the radiator includes a concentric transmission oil cooler with fittings spaced 10 13/16 inches (275 mm) apart, supporting transmission fluid cooling requirements.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Mazda Miata vehicles
• Addresses engine overheating issues due to inefficient cooling
• Resolves transmission fluid overheating with integrated oil cooler
• Eliminates coolant leaks from damaged plastic tanks or core
• Improves overall engine temperature regulation for consistent performance

Installation Notes and Tips

• Ensure compatibility with Mazda Miata models before installation
• Drain coolant and transmission fluid prior to removal of old radiator
• Inspect hoses and clamps for wear and replace if necessary
• Verify inlet and outlet locations match vehicle configuration
• Bleed cooling system after installation to remove air pockets

Quality Assurance and Warranty Information

The Reach Cooling Radiator 41-2268 is manufactured to meet industry standards for durability and performance. The aluminum core and plastic tank construction provide resistance to corrosion and thermal stress. While specific warranty details are not provided, Reach Cooling products typically undergo quality control inspections to ensure reliable operation in Mazda Miata vehicles.
