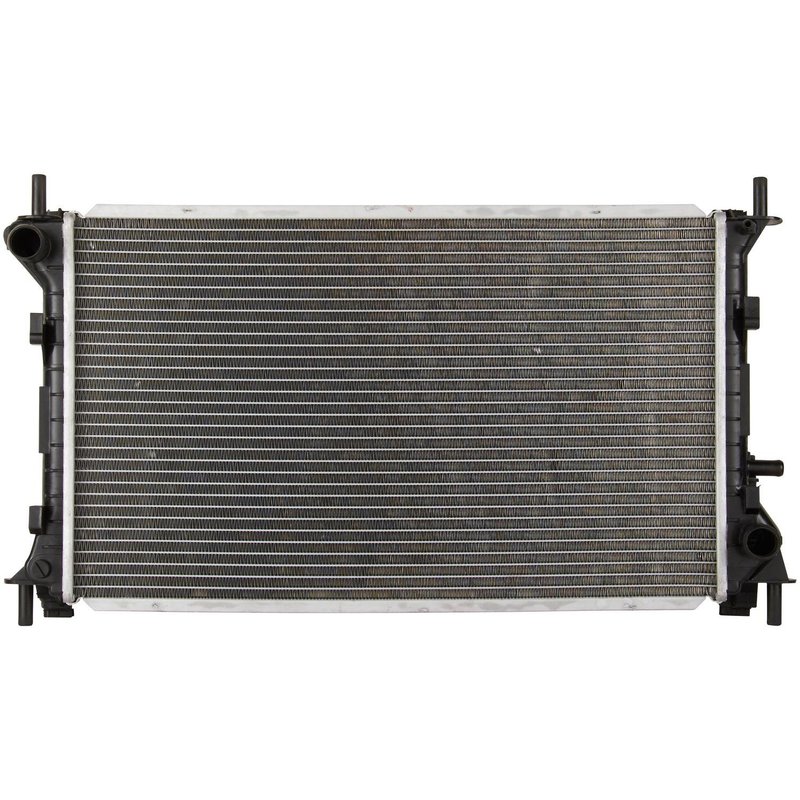

Reach Cooling 41-2296 Radiator

Overview of Reach Cooling Radiator 41-2296 for Ford Focus

The Reach Cooling Radiator 41-2296 is designed specifically for Ford Focus models, providing reliable engine cooling performance. This radiator features a durable aluminum core and plastic tanks, engineered to maintain optimal engine temperatures under various driving conditions.

• Core Height: 23 5/8 inches (600 mm)
• Core Width: 13 5/16 inches (338 mm)
• Core Thickness: 1 inch (26 mm)
• Single core row design for efficient heat dissipation
• Inlet diameter: 1 5/16 inches (33 mm), located upper left
• Outlet diameter: 1 1/4 inches (32.5 mm), located lower right
• Plastic tank material with aluminum core for durability and corrosion resistance
• Inlet and outlet header widths: 1 15/16 inches
• Inlet header length: 14 7/16 inches; outlet header length: 14 3/8 inches

Details on Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering quality cooling components tailored to specific vehicle applications. The Radiator product line emphasizes core construction and precise fitment, ensuring compatibility and efficient heat exchange. The 41-2296 model exemplifies this approach with its aluminum core and plastic tanks, designed to meet the cooling demands of the Ford Focus.

Technical Description and Features

This radiator features a single-row aluminum core measuring 23 5/8 inches in height, 13 5/16 inches in width, and 1 inch thick, providing a balance between cooling capacity and compact design. The plastic tanks reduce weight while maintaining structural integrity. The inlet and outlet headers are sized and positioned to match the Ford Focus cooling system, with the inlet located at the upper left and the outlet at the lower right, facilitating proper coolant flow. The inlet diameter is 1 5/16 inches, and the outlet diameter is 1 1/4 inches, both designed to fit standard hose sizes for this vehicle.

Common Applications and Problem Solving

• Replaces damaged or leaking radiators in Ford Focus vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Restores proper coolant flow with correctly sized inlet and outlet ports
• Solves corrosion or tank failure problems due to plastic tank design
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

When installing the Reach Cooling Radiator 41-2296, ensure the inlet and outlet hoses correspond to the upper left and lower right locations respectively. Verify hose diameters match the 1 5/16 inch inlet and 1 1/4 inch outlet to prevent leaks. Properly secure mounting points and check for any obstructions in the cooling system. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2296 is manufactured with an aluminum core and plastic tanks to provide durability and resistance to corrosion. This radiator meets OEM specifications for the Ford Focus cooling system. While specific warranty details are not provided, Reach Cooling products typically adhere to industry standards for quality and reliability.
