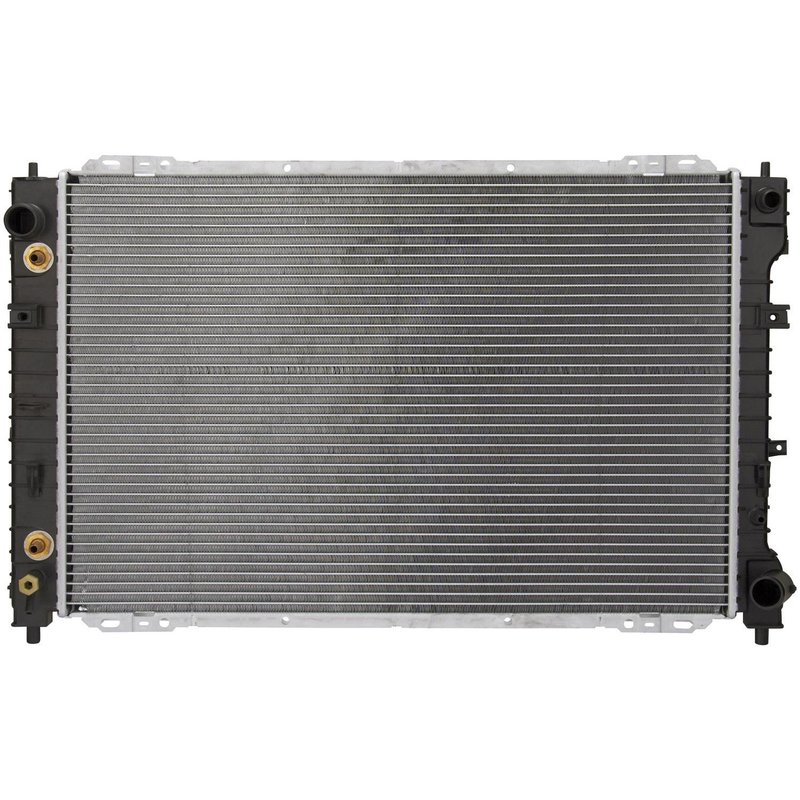

Reach Cooling 41-2306 Radiator

Overview of Reach Cooling Radiator 41-2306

The Reach Cooling Radiator part number 41-2306 is designed specifically for Ford Escape and Mazda Tribute models. This radiator provides reliable cooling performance with precise fitment, ensuring optimal engine temperature regulation for these vehicles.

• Core dimensions: 27 9/16 inches height, 17 5/8 inches width, 1 inch thickness
• Constructed with an aluminum core and plastic tanks for durability and heat dissipation
• Inlet located at upper left with 1 3/8 inch diameter
• Outlet located at lower right with 1 3/8 inch diameter
• Includes a concentric transmission oil cooler with 12-inch fitting spacing
• Single core row design for efficient cooling
• Inlet and outlet header lengths of 18 3/4 inches and header widths of 1 15/16 inches

Details on the Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering dependable cooling components engineered for specific vehicle applications. This radiator model 41-2306 exemplifies the line’s commitment to quality materials such as aluminum cores and plastic tanks, balancing weight and thermal efficiency. The product line supports vehicles like the Ford Escape and Mazda Tribute by providing direct-fit radiators that maintain factory specifications.

Technical Description and Specifications

This radiator features a 27 9/16 inch (700 mm) core height and a 17 5/8 inch (448 mm) core width, with a 1 inch (26 mm) core thickness. The aluminum core enhances heat transfer while the plastic tanks reduce overall weight. The inlet and outlet headers both measure 18 3/4 inches in length and 1 15/16 inches in width, designed to accommodate the vehicle’s cooling system layout. The inlet is positioned at the upper left with a 1 3/8 inch (35 mm) diameter, and the outlet is at the lower right with the same diameter, ensuring proper coolant flow. Additionally, the radiator includes a concentric transmission oil cooler with fittings spaced 12 inches (305 mm) apart, supporting transmission fluid cooling needs.

Compatible Vehicles and Common Applications

• Replacement radiator for Ford Escape models requiring part number 41-2306
• Compatible with Mazda Tribute vehicles needing a direct-fit radiator
• Addresses overheating issues caused by radiator core damage or clogging
• Resolves coolant leaks from cracked or worn plastic tanks
• Supports transmission cooling to prevent fluid overheating

Installation Notes and Tips

When installing the Reach Cooling Radiator 41-2306, ensure the vehicle is fully cooled before removal. Drain the coolant and transmission fluid if applicable. Verify the inlet and outlet locations match the vehicle’s hose connections (upper left inlet, lower right outlet). Inspect and replace any worn hoses or clamps during installation. Properly torque mounting bolts to manufacturer specifications to avoid leaks or damage. After installation, refill coolant and transmission fluid, then bleed the cooling system to remove air pockets.

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2306 is manufactured to meet OEM standards for fit, form, and function. The aluminum core and plastic tank construction undergo quality control to ensure durability and performance. While specific warranty details are not provided, Reach Cooling products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
