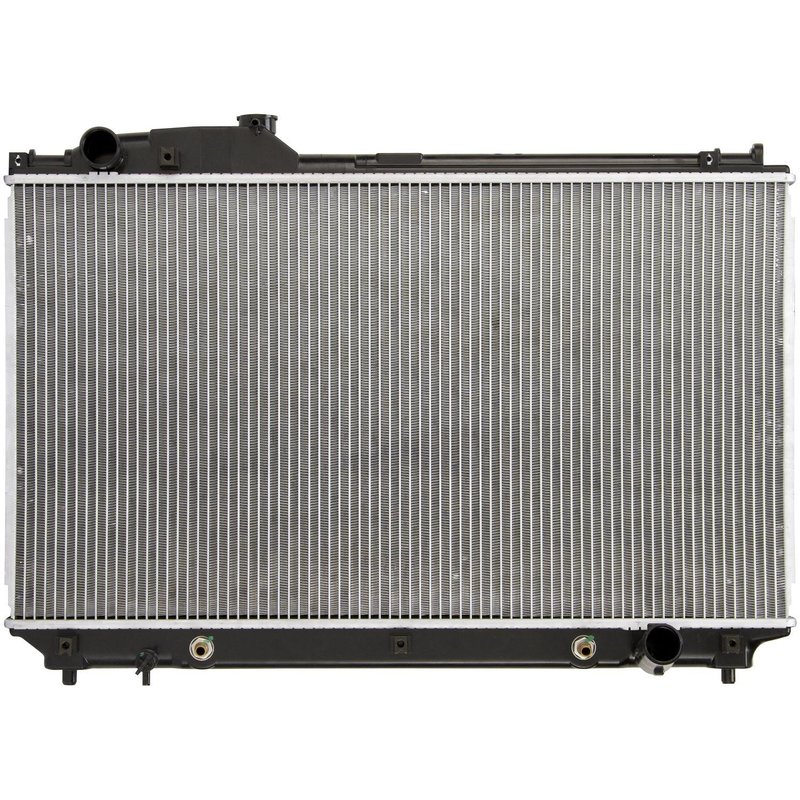

Reach Cooling 41-2419 Radiator

Overview of Reach Cooling Radiator 41-2419 for Lexus LS430

The Reach Cooling Radiator part number 41-2419 is designed specifically for the Lexus LS430, providing reliable engine cooling performance. This radiator features a durable aluminum core and plastic tanks, engineered to maintain optimal operating temperatures under various driving conditions.

• Core dimensions: 16 3/4 inches height, 29 7/16 inches width, and 1 inch thickness
• Aluminum core material for efficient heat dissipation
• Plastic tank construction for corrosion resistance
• Inlet and outlet diameters of 1 1/2 inches located at top left and bottom right respectively
• Single core row design with concentric transmission oil cooler
• Transmission oil cooler fittings spaced 14 3/4 inches apart
• Inlet and outlet header lengths of 30 1/2 inches with 2-inch widths

Details on Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering quality cooling components tailored for specific vehicle applications. This radiator model 41-2419 is part of that line, combining aluminum core technology with plastic tanks to balance durability and weight. The design supports integrated transmission oil cooling, which is essential for maintaining transmission fluid temperatures in the Lexus LS430.

Technical Description and Specifications

This radiator features a 16 3/4 inch (425 mm) core height and a 29 7/16 inch (748 mm) core width, with a 1 inch (26 mm) core thickness. The aluminum core ensures effective heat transfer, while the plastic tanks resist corrosion and reduce overall weight. The inlet is positioned at the top left with a 1 1/2 inch (38 mm) diameter, and the outlet is located at the bottom right with the same diameter, facilitating efficient coolant flow. The single-row core design includes a concentric transmission oil cooler with fittings spaced 14 3/4 inches (375 mm) apart, supporting transmission fluid cooling needs for the Lexus LS430.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Lexus LS430 models
• Addresses engine overheating issues due to inefficient cooling
• Resolves transmission fluid overheating with integrated oil cooler
• Fixes coolant leaks from damaged or cracked radiator tanks
• Improves cooling system reliability and vehicle performance

Installation Notes and Tips

When installing the Reach Cooling Radiator 41-2419, ensure proper alignment of the inlet and outlet hoses to the top left and bottom right locations respectively. Verify the transmission oil cooler fittings match the 14 3/4 inch spacing for secure connection. Use appropriate coolant and follow Lexus LS430 manufacturer torque specifications for mounting hardware. Inspect all seals and hoses for wear during installation to prevent future leaks.

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2419 is manufactured to meet OEM standards for fit and function on the Lexus LS430. The aluminum core and plastic tank construction provide durability and corrosion resistance. While specific warranty details are not provided, Reach Cooling products typically adhere to industry quality controls to ensure reliable performance.
