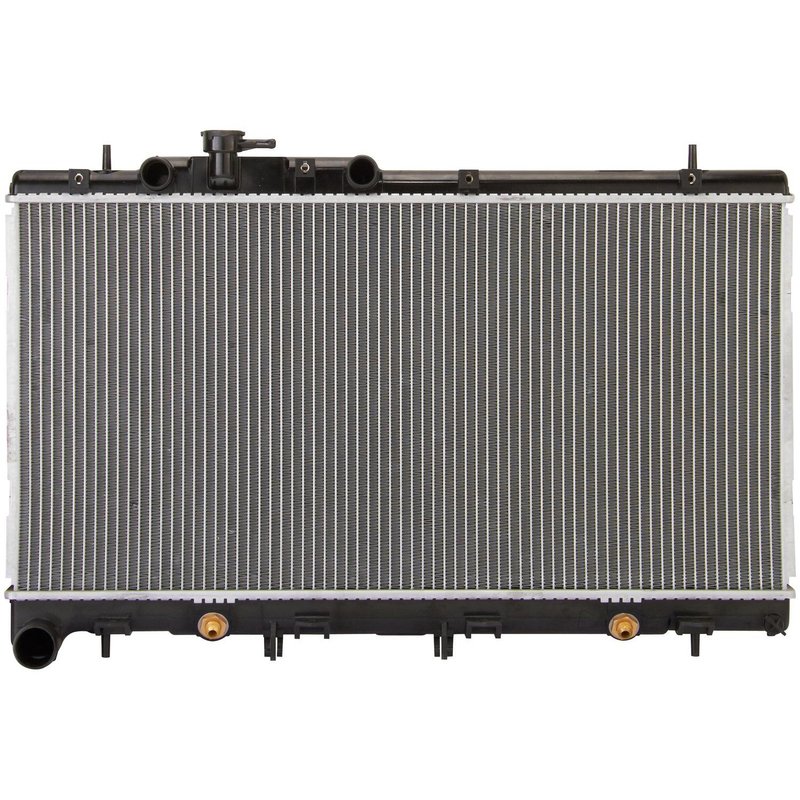

Reach Cooling 41-2465 Radiator

Overview of Reach Cooling Radiator 41-2465 for Subaru Outback

The Reach Cooling Radiator part number 41-2465 is designed specifically for Subaru Outback models. This radiator provides reliable cooling performance with precise fitment, ensuring your vehicle maintains optimal engine temperature under various driving conditions.

• Core dimensions: 13 3/8 inches height, 27 1/16 inches width, and 1 inch thickness
• Constructed with an aluminum core and plastic tanks for durability and heat dissipation
• Inlet located at the top left with a diameter of 1 1/8 inches
• Outlet located at the lower left with a diameter of 1 1/2 inches
• Includes a concentric transmission oil cooler with fittings spaced 14 3/4 inches apart
• Single core row design for efficient cooling

Details on Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering quality cooling components engineered for specific vehicle applications. This radiator model 41-2465 features a robust aluminum core paired with plastic tanks, balancing weight and heat transfer efficiency. The product line emphasizes precise fitment and compatibility, making it suitable for Subaru Outback vehicles requiring dependable cooling system components.

Technical Description and Specifications

This Reach Cooling radiator features a 13 3/8 inch (340 mm) core height and a 27 1/16 inch (688 mm) core width, with a 1 inch (26 mm) core thickness. The aluminum core material enhances heat dissipation, while the plastic tanks reduce overall weight. The inlet header length and outlet header length are both 28 3/8 inches, with 2 inch wide inlet and outlet headers. The inlet is positioned at the top left with a 1 1/8 inch diameter, and the outlet is at the lower left with a 1 1/2 inch diameter, ensuring proper coolant flow. Additionally, the radiator includes a concentric transmission oil cooler with fittings spaced 14 3/4 inches apart, supporting transmission fluid cooling needs.

Common Applications and Problem Solving

• Replaces leaking or damaged radiators in Subaru Outback vehicles
• Addresses overheating issues caused by inefficient or clogged radiators
• Restores proper coolant flow and engine temperature regulation
• Supports transmission cooling to prevent fluid overheating
• Improves overall engine cooling system reliability

Installation Notes and Tips

• Ensure compatibility with Subaru Outback model year before installation
• Drain coolant and transmission fluid before removing the old radiator
• Inspect hoses and fittings for wear and replace if necessary
• Carefully align inlet and outlet connections to avoid leaks
• Refill coolant and transmission fluid to manufacturer specifications after installation

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2465 is manufactured to meet OEM standards for fit and function. The aluminum core and plastic tank construction provide durability and corrosion resistance. While specific warranty details are not provided, Reach Cooling products typically adhere to industry quality controls to ensure reliable performance in Subaru Outback vehicles.
