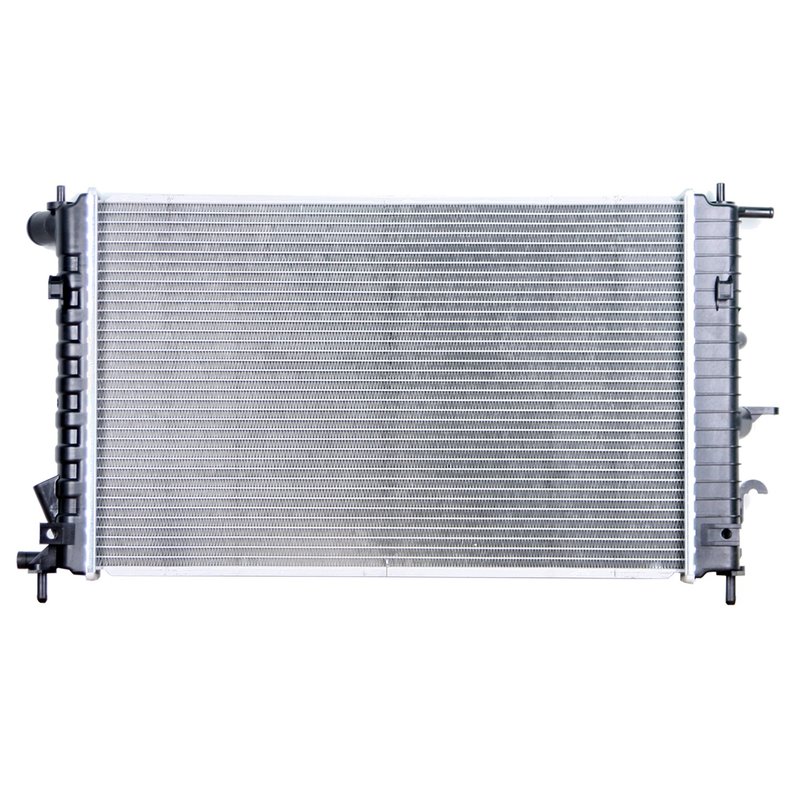

Reach Cooling 41-2607 Radiator

Overview of Reach Cooling Radiator 41-2607

The Reach Cooling Radiator part number 41-2607 is designed specifically for Saturn vehicles, including models L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300. This radiator provides reliable cooling performance with precise dimensions and quality materials to maintain optimal engine temperature.

• Core height: 23 9/16 inches (597 mm)
• Core width: 14 1/2 inches (368 mm)
• Core thickness: 1 inch (26 mm)
• Core material: Aluminum
• Plastic tanks for durability and corrosion resistance
• Inlet diameter: 1 3/8 inches (34.5 mm), located upper right
• Outlet diameter: 1 3/8 inches (34.5 mm), located center left
• Transmission oil cooler: Plated type with 10 inches (254 mm) distance between fittings
• Single core row design

Detailed Product Description

The Reach Cooling Radiator 41-2607 features an aluminum core measuring 23 9/16 inches in height, 14 1/2 inches in width, and 1 inch thick, providing efficient heat dissipation for Saturn vehicles. The plastic tanks enhance corrosion resistance and reduce weight. The radiator includes a plated transmission oil cooler with fittings spaced 10 inches apart, supporting automatic transmission cooling needs. The inlet and outlet headers both measure 15 1/2 inches in length and 2 5/16 inches in width, ensuring proper fluid flow. The inlet is positioned at the upper right, while the outlet is centered on the left side, matching factory specifications for the compatible Saturn models.

About the Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering reliable cooling components engineered to meet OEM specifications. This product line emphasizes durable aluminum cores combined with plastic tanks to balance performance and longevity. The Radiator series is designed to provide consistent engine temperature regulation and support transmission cooling where applicable, as seen in part number 41-2607.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Saturn L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300 models
• Resolves overheating caused by clogged or inefficient radiator cores
• Addresses transmission fluid overheating with integrated plated transmission oil cooler
• Fixes coolant leaks from cracked plastic tanks or corroded aluminum cores
• Improves engine cooling efficiency for vehicles experiencing temperature fluctuations

Installation Notes and Tips

• Ensure compatibility with specific Saturn model and year before installation
• Drain coolant and transmission fluid prior to removal of old radiator
• Inspect hoses and clamps for wear and replace if necessary
• Carefully align inlet and outlet connections to match factory locations
• Bleed cooling system after installation to remove air pockets

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2607 is manufactured to meet industry standards for durability and performance. The aluminum core and plastic tank construction provide resistance to corrosion and thermal stress. While specific warranty details are not provided, Reach Cooling products typically adhere to quality control processes to ensure reliable operation within the recommended vehicle applications.
