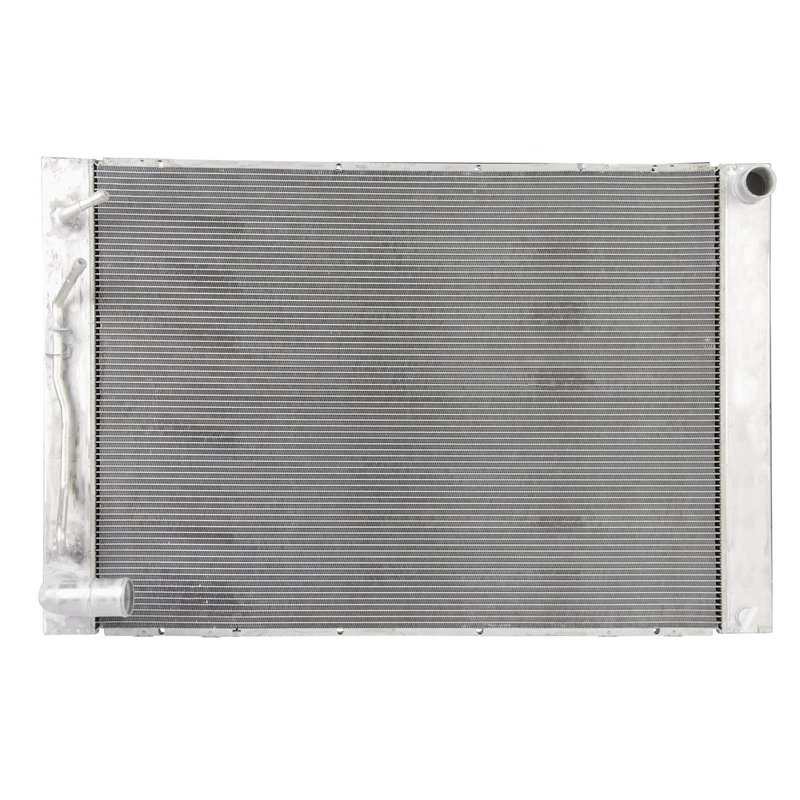

Reach Cooling 41-2682 Radiator

Overview of Reach Cooling Radiator 41-2682 for Toyota Sienna

The Reach Cooling Radiator part number 41-2682 is designed specifically for Toyota Sienna models, providing reliable engine cooling performance. Engineered with durable aluminum core and tank materials, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Height: 26 3/8 inches (670 mm)
• Core Width: 19 3/8 inches (492.5 mm)
• Core Thickness: 7/8 inch (22 mm)
• Aluminum core and tank construction for durability
• Inlet diameter: 1 3/8 inches (35 mm), located upper right
• Outlet diameter: 1 1/2 inches (38 mm), located lower left
• Transmission oil cooler with plated type and 13 3/4 inches (350 mm) distance between fittings
• Single core row design

Detailed Product Description

This Reach Cooling Radiator from the Radiator product line is built to meet the cooling demands of Toyota Sienna vehicles. The aluminum core and tank materials provide corrosion resistance and lightweight strength, contributing to efficient heat transfer. The radiator features a single core row with a thickness of 7/8 inch, balancing cooling capacity and airflow. Both inlet and outlet headers measure 19 13/16 inches in length with 1 1/8 inch width, ensuring proper fluid flow. The inlet is positioned at the upper right, while the outlet is at the lower left, matching the original equipment layout for straightforward installation.

Common Applications and Problem Solving

• Replaces leaking or damaged radiator in Toyota Sienna
• Addresses engine overheating issues due to inefficient cooling
• Restores proper transmission fluid cooling with integrated plated oil cooler
• Solves coolant leaks from corroded aluminum tanks or cores
• Improves engine temperature regulation for consistent vehicle performance

Installation Notes and Tips

• Verify compatibility with Toyota Sienna model year before installation
• Ensure proper connection of inlet and outlet hoses to upper right and lower left ports respectively
• Check transmission oil cooler fittings for secure attachment and correct spacing (13 3/4 inches)
• Flush cooling system prior to installation to prevent contamination
• Use manufacturer recommended coolant and follow torque specifications for mounting hardware

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2682 is manufactured to meet OEM specifications for Toyota Sienna vehicles. Constructed with high-quality aluminum materials, it offers durability and corrosion resistance. While specific warranty details are not provided, Reach Cooling products typically adhere to industry standards for reliability and performance. It is recommended to consult the product documentation or supplier for exact warranty terms.
