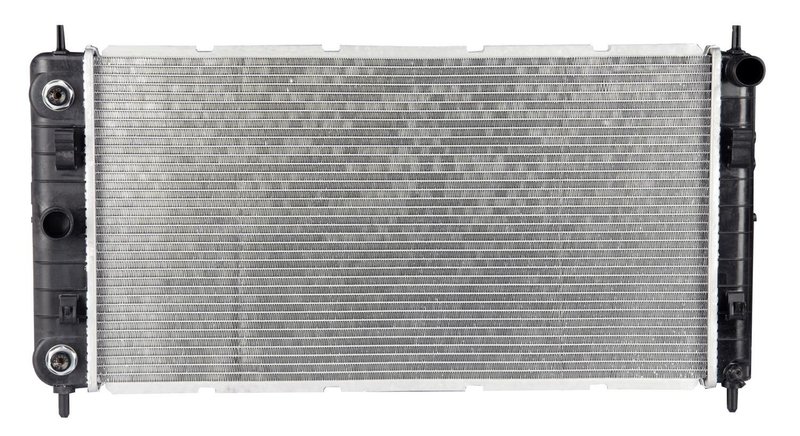

Reach Cooling 41-2864 Radiator

Overview of Reach Cooling Radiator 41-2864

The Reach Cooling Radiator 41-2864 is designed to provide reliable cooling performance for select Chevrolet, Pontiac, and Saturn vehicles. Engineered with precision, this radiator supports efficient heat dissipation to maintain optimal engine temperatures in models such as the Chevrolet Malibu, Pontiac G6, and Saturn Aura.

• Core Height: 26 3/4 inches (680 mm)
• Core Width: 14 inches (355 mm)
• Core Thickness: 7/8 inch (22 mm)
• Core Material: Aluminum
• Tank Material: Plastic
• Inlet Diameter: 1 3/8 inches (34.5 mm), located upper right
• Outlet Diameter: 1 3/8 inches (35 mm), located center left
• Transmission Oil Cooler: Plated type with 11 1/2 inches (292 mm) distance between fittings
• Single core row design

Details on the Reach Cooling Radiator Product Line

The Reach Cooling Radiator line focuses on delivering durable and efficient cooling solutions using aluminum cores combined with plastic tanks. This combination balances weight and corrosion resistance, making it suitable for vehicles requiring consistent thermal management. The 41-2864 radiator exemplifies this approach with its plated transmission oil cooler and precise core dimensions tailored for specific GM models.

Technical Description and Compatibility

This radiator features a single-row aluminum core measuring 26 3/4 inches in height, 14 inches in width, and 7/8 inch in thickness, providing adequate surface area for heat exchange. The inlet and outlet headers are both 14 7/8 inches in length and 2 inches in width, ensuring proper coolant flow. The inlet is positioned at the upper right, while the outlet is centered on the left side, matching OEM configurations for Chevrolet Malibu, Pontiac G6, and Saturn Aura models. The plastic tanks reduce weight without compromising durability, and the plated transmission oil cooler supports vehicles equipped with automatic transmissions.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Chevrolet Malibu, Pontiac G6, and Saturn Aura
• Solves overheating issues caused by clogged or inefficient cooling cores
• Addresses coolant leaks from cracked plastic tanks or corroded aluminum cores
• Restores proper transmission fluid cooling in vehicles with integrated transmission oil coolers
• Improves engine temperature regulation for enhanced vehicle performance

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Ensure all hose connections match the 1 3/8 inch inlet and outlet diameters
• Inspect and replace coolant hoses and clamps as needed during installation
• Flush the cooling system to remove debris before installing the new radiator
• Check transmission oil cooler fittings for proper sealing and alignment

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2864 is manufactured to meet OEM specifications for fit, form, and function. Constructed with corrosion-resistant aluminum and durable plastic tanks, it is designed for long-term service. While specific warranty details are not provided here, Reach Cooling products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
