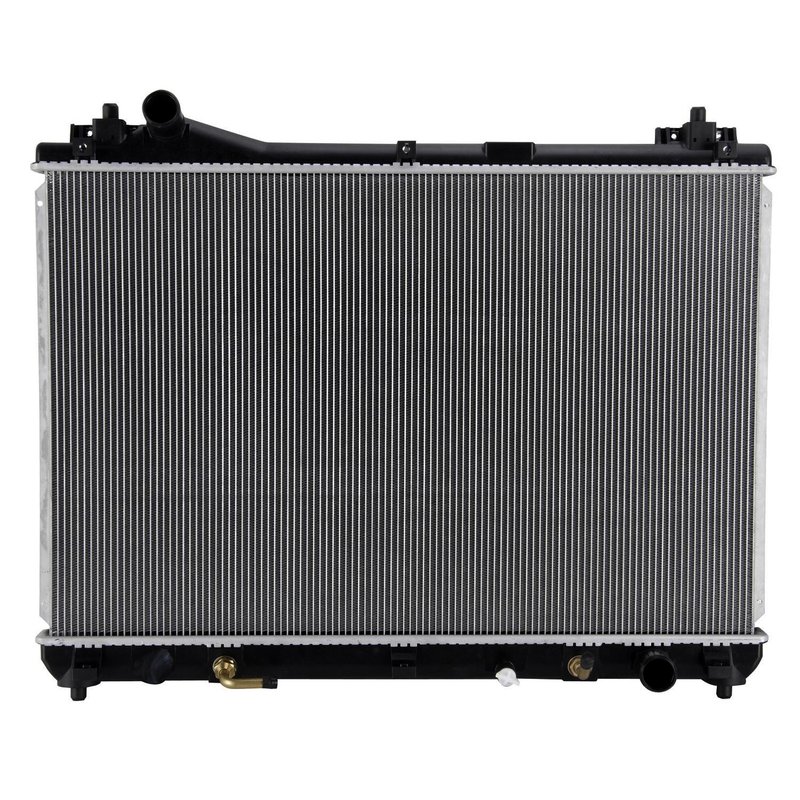

Reach Cooling 41-2920 Radiator

Overview of Reach Cooling Radiator 41-2920 for Suzuki Grand Vitara

The Reach Cooling Radiator 41-2920 is designed specifically for Suzuki Grand Vitara models, providing reliable engine cooling performance. This radiator features a durable aluminum core and plastic tanks, engineered to maintain optimal operating temperatures under various driving conditions.

• Core dimensions: 17 5/8 inches height, 27 5/16 inches width, 5/8 inch thickness
• Aluminum core material for efficient heat dissipation
• Plastic tank construction for corrosion resistance
• Inlet located at top left with 1 5/16 inch diameter
• Outlet located at bottom right with 1 5/16 inch diameter
• Concentric transmission oil cooler with 13 13/16 inch fitting spacing
• Single core row design
• Inlet and outlet header lengths of 28 3/8 inches

Detailed Product Description

The Reach Cooling Radiator 41-2920 belongs to the Radiator product line, which focuses on delivering components that meet precise fitment and cooling requirements for specific vehicle models. This radiator is constructed with an aluminum core measuring 17 5/8 inches in height, 27 5/16 inches in width, and 5/8 inch thick, providing effective heat exchange to maintain engine temperature. The plastic tanks reduce weight and resist corrosion, extending the radiator's service life.

Inlet and outlet headers both measure 28 3/8 inches in length and 2 inches in width, with the inlet positioned at the top left and the outlet at the bottom right, each having a diameter of 1 5/16 inches. The integrated concentric transmission oil cooler features fittings spaced 13 13/16 inches apart, supporting transmission fluid cooling needs. This single-row core design balances cooling efficiency with compact size, suitable for the Suzuki Grand Vitara.

Compatible Vehicles and Common Applications

• Replacement radiator for Suzuki Grand Vitara models requiring part number 41-2920
• Addresses overheating issues caused by worn or damaged radiators
• Resolves coolant leaks from cracked or corroded radiator cores or tanks
• Improves transmission fluid cooling with integrated oil cooler
• Restores proper engine temperature regulation for reliable vehicle operation

Installation Notes and Tips

• Ensure compatibility with Suzuki Grand Vitara before installation
• Drain coolant and transmission fluid prior to removal of old radiator
• Inspect hoses and clamps for wear and replace if necessary
• Carefully align inlet and outlet connections to avoid leaks
• Refill coolant and transmission fluid to manufacturer specifications after installation

Quality Assurance and Warranty

The Reach Cooling Radiator 41-2920 is manufactured to meet OEM specifications for fit and function. The aluminum core and plastic tank materials are selected for durability and corrosion resistance. While specific warranty details are not provided, Reach Cooling products typically undergo quality control testing to ensure reliable performance in automotive cooling systems.
