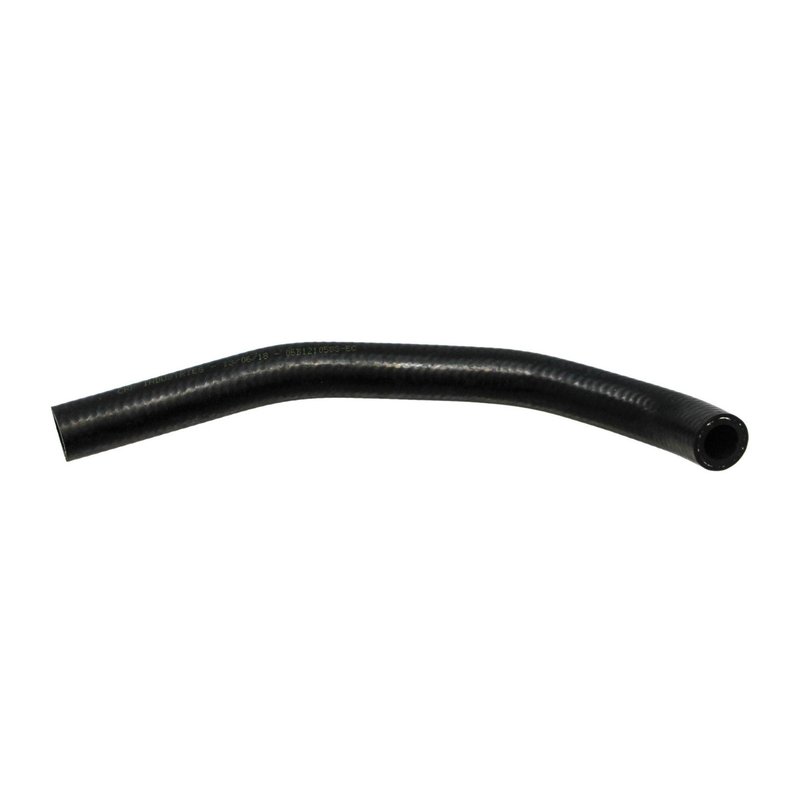

Rein CHE0346R Engine Coolant Hose - Oil Cooler Inlet To Pipe
| Brand | Rein CHE0346R |
|---|---|
| Position | Oil Cooler Inlet To Pipe |
| Application Type | Application Specific |
| Centerline Length Inches | 12.2100 |
| Centerline Length Metric | 31.0134000 |
| Color | Black |
| Container Type | BG |
| Country of Origin | TR |
| Heat Shield Inc | No |
| Hose End 1 Inside Diameter Inches | 0.5600 |
| Hose End 1 Inside Diameter Metric | 1.4224000 |
| Hose End 1 Outside Diameter Inches | 0.9100 |
| Hose End 1 Outside Diameter Metric | 2.3114000 |
| Hose End 2 Inside Diameter Inches | 0.5600 |
| Hose End 2 Inside Diameter Metric | 1.4224000 |
| Hose End 2 Outside Diameter Inches | 0.9100 |
| Hose End 2 Outside Diameter Metric | 2.3114000 |
| Hose End 3 Inside Diameter Inches | 0.0000 |
| Hose End 3 Inside Diameter Metric | 0.0000000 |
| Hose End 4 Inside Diameter Inches | 0.0000 |
| Hose End 4 Inside Diameter Metric | 0.0000000 |
| Hose End 5 Inside Diameter Inches | 0.0000 |
| Hose End 5 Inside Diameter Metric | 0.0000000 |
| Hose Material | EPDM |
| Hose Type | Single |
| Industry Standards | SAE J20R4 -D1 |
| Item Height | 1.5000 |
| Item Length | 11.0000 |
| Item Level GTIN | 843266052976 |
| Item Qty | 1 |
| Item UOM | EA |
| Item Weight | 0.1700 |
| Item Weight Unit UOM | LB |
| Item Width | 3.2500 |
| Link to Manufacturer Page | www.reinautomotive.com |
| Maximum Working Pressure | 0.0000 |
| Product Desc Extended 240 | Rein OE Quality water hoses are designed to be direct replacements for OE hoses and assemblies. Rein hoses are identical, from the size and shape of their branches to the thermoplastic quick connect fittings as called for by the OE |
| Product Desc Invoice 40 | Rein Water Hose |
| Product Desc Long 80 | Rein OE Quality Water Hose |
| Product Desc Short 20 | Water Hose |
| Protective Shield Inc | No |
| Tech Note | Complete OE Quality Direct Fit European Hose |
| Fits | Audi and Volkswagen · 17 vehicles |
OE quality direct fit. Direct replacement for OE hoses and assemblies.
EPDM construction. Resists heat, salt, road debris, oil, and contaminants.
Thermoplastic quick connects. Matches OE branch shape and fittings for easier installation.
Cross-references 06B121058S for the same application. See all 1.
OE Coolant Hose for European Applications
The Rein CHE0346R engine coolant hose is an application-specific OE quality replacement for European vehicles. It is built as a direct-fit water hose for the oil cooler inlet to pipe connection on select Audi A4, Audi A4 Quattro, and Volkswagen Passat models.
Rein CHE0346R is shaped to match the original hose routing and uses thermoplastic quick connect fittings where required, helping reduce installation time and avoiding the need to cut, refit, or adjust the hose during service.
Key Features
- Direct replacement coolant hose for OE-style fitment
- Application-specific design for the oil cooler inlet to pipe location
- EPDM hose construction with black finish
- Built to SAE J20R4 -D1 industry standard
- Resistant to heat, salt, road debris, oil, and other contaminants
- Helps prevent leaks and repeat repairs from reused quick connectors and o-rings
Detailed Product Overview
This Rein water hose is engineered for European cooling system service where exact routing and connector fit matter. The CHE0346R follows OE dimensions, including branch shape and connector style, so it installs as a direct-fit replacement rather than a universal hose that requires modification. It is a practical choice for Audi A4 and Audi A4 Quattro cooling system repairs, as well as Volkswagen Passat oil cooler inlet to pipe service.
Part number CHE0346R is designed for dependable sealing at the connection points and consistent fit at the specified location. If you are replacing a worn or leaking hose on a 2001-2006 Audi A4, 2001-2005 Audi A4 Quattro, or 2000-2005 Volkswagen Passat, this hose matches the OE application requirements.
This part cross-references 06B121058S for the same application.
Common Problems This Hose Can Address
- Coolant seepage at the oil cooler inlet to pipe connection
- Cracked or hardened original hose material
- Leaks caused by worn quick-connect fittings or o-rings
- Poor fit from previous repair hoses that required trimming
- Cooling system service delays caused by non-direct-fit replacements
Installation Notes and Tips
Verify the hose routing and connector style against the original part before installation. Because CHE0346R is application specific, it is made to install without cutting or refitting the hose. Inspect mating surfaces, seals, and adjacent cooling system components for wear before reassembly.
Compatible With: Fits 2001-2006 Audi A4, Oil Cooler Inlet To Pipe; Fits 2001-2005 Audi A4 Quattro, Oil Cooler Inlet To Pipe; Fits 2000-2005 Volkswagen Passat, Oil Cooler Inlet To Pipe.
Quality Assurance
Rein Automotive OE quality hoses are built for direct-fit European vehicle service and are manufactured to match original hose geometry and connector requirements. CHE0346R is produced to support accurate fitment and reliable sealing in the specified cooling system application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2005 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2005 | Audi | A4 Quattro | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2005 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2004 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2004 | Audi | A4 Quattro | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2004 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2003 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2003 | Audi | A4 Quattro | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2003 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2002 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2002 | Audi | A4 Quattro | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2002 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2001 | Audi | A4 | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2001 | Audi | A4 Quattro | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2001 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
| 2000 | Volkswagen | Passat | 1.8L | L4 | Oil Cooler Inlet To Pipe | — |
