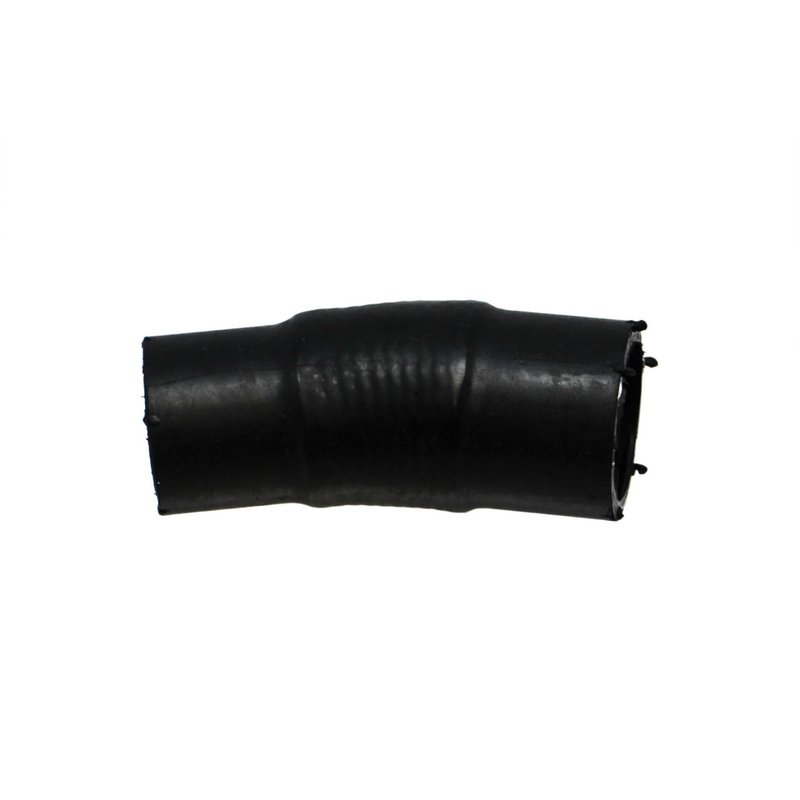

Rein CHE0558 Engine Coolant Hose - Upper Radiator Hose Pipe To Flange
| Brand | Rein CHE0558 |
|---|---|
| Position | Upper Radiator Hose Pipe To Flange |
| Application Type | ApplicationSpecific |
| Centerline Length Inches | 3.7500 |
| Centerline Length Metric | 9.5250000 |
| Color | Black |
| Container Type | BG |
| Country of Origin | TR |
| Heat Shield Inc | No |
| Hose End 1 Inside Diameter Inches | 1.2000 |
| Hose End 1 Inside Diameter Metric | 3.0480000 |
| Hose End 1 Outside Diameter Inches | 1.3500 |
| Hose End 1 Outside Diameter Metric | 3.4290000 |
| Hose Material | EPDM |
| Hose Type | Single |
| Industry Standards | DIN73411 |
| Item Height | 1.5000 |
| Item Length | 3.5000 |
| Item Level GTIN | 843266081914 |
| Item Qty | 1 |
| Item UOM | EA |
| Item Weight | 0.1000 |
| Item Weight Unit UOM | LB |
| Item Width | 1.5000 |
| Link to Manufacturer Page | www.reinautomotive.com |
| Maximum Working Pressure | 2.0000 |
| Product Desc Extended 240 | Rein OE Quality water hoses are designed to be direct replacements for OE hoses and assemblies. Rein hoses are identical, from the size and shape of their branches to the thermoplastic quick connect fittings as called for by the OE |
| Product Desc Invoice 40 | Rein Water Hose |
| Product Desc Long 80 | Rein OE Quality Water Hose |
| Product Desc Short 20 | Water Hose |
| Protective Shield Inc | No |
| Tech Note | Complete OE Quality Direct Fit European Hose |
| Fits | Audi · 10 vehicles |
OE direct replacement. Direct-fit coolant hose matches OE size, shape, and quick-connect fittings.
EPDM construction. Resists heat, salt, road debris, oil, and other contaminants.
No cutting required. Installation is faster with no refitting or adjusting the hose.
Cross-references URO 06D121101B for the same application. See all 1.
OE Quality Coolant Hose for Audi A4
Rein CHE0558 is an OE-quality engine coolant hose built for European cooling systems that require a direct-fit replacement. It matches the original hose shape and branch layout for 2005-2009 Audi A4 and Audi A4 Quattro upper radiator hose pipe to flange applications, helping restore proper coolant routing without modification.
- Direct replacement for OE hose and hose assemblies
- Reduces installation time on Audi A4 cooling system repairs
- No cutting, refitting, or adjusting the hose
- Thermoplastic quick connect fittings match OE-style connections
- EPDM hose construction resists heat, salt, road debris, oil, and other contaminants
- Black finish with application-specific fitment
Detailed Product Overview
Built to Rein OE standards, CHE0558 follows the original hose dimensions and connection style used on the vehicle. The hose measures 3.750 inches centerline length and uses a 1.200 inch inside diameter at hose end 1, with a single-hose design for the upper radiator hose pipe to flange position. For Audi A4 and Audi A4 Quattro owners, this part number CHE0558 supports a clean replacement path when the original coolant hose has aged, cracked, or begun to leak.
This part cross-references URO 06D121101B for the same application.
Common Problems This Hose Can Address
- Coolant leaks at the upper radiator hose connection
- Cracked or hardened EPDM hose material from heat cycling
- Damaged quick-connect fittings or worn O-rings from prior service
- Poor sealing after reusing old hose connectors
- Extended repair time caused by trimming or adapting a non-OE hose
Installation Notes
CHE0558 is an application-specific hose for direct-fit replacement on listed Audi models. Verify the upper radiator hose pipe to flange routing before installation, and inspect mating surfaces, connectors, and sealing points for wear or contamination. Because the hose is built to OE dimensions, no cutting, refitting, or adjusting is required when installed on the correct application.
Quality Assurance
Rein Automotive OE-quality coolant hoses are engineered as direct replacements for European vehicles, with OE-style sizing, branch geometry, and thermoplastic quick connect fittings. CHE0558 is manufactured to DIN73411 standards and uses EPDM construction for cooling-system durability.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 | Convertible | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2009 | Audi | A4 Quattro | Convertible | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2008 | Audi | A4 | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2008 | Audi | A4 Quattro | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2007 | Audi | A4 | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2007 | Audi | A4 Quattro | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2006 | Audi | A4 | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2006 | Audi | A4 Quattro | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2005 | Audi | A4 | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
| 2005 | Audi | A4 Quattro | — | 2.0L | L4 | Upper Radiator Hose Pipe To Flange | — |
