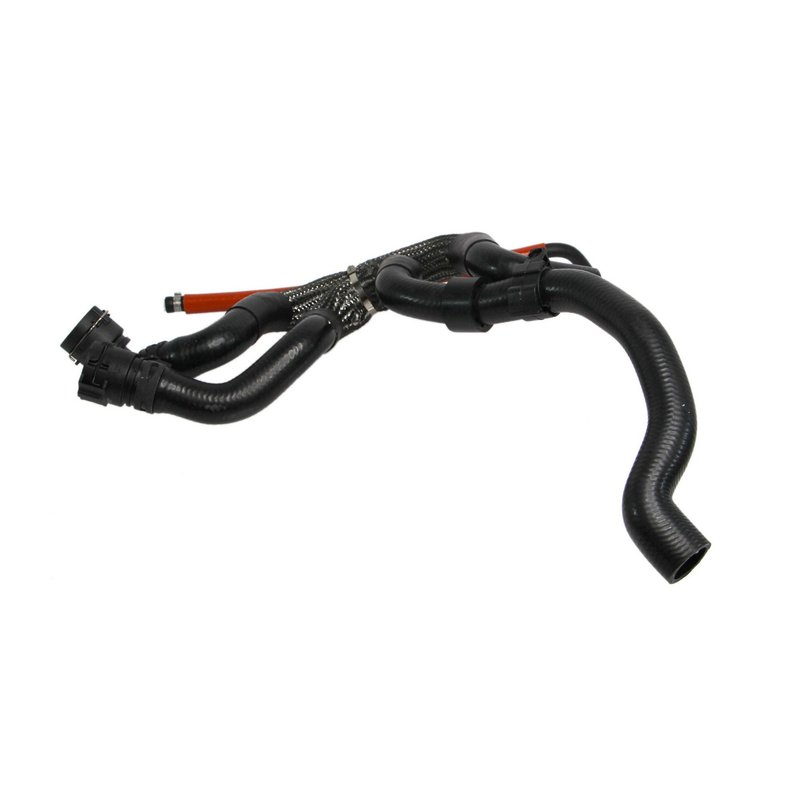

Rein CHH0147R HVAC Heater Hose - Heater To Flange To Pipe

Brand Rein CHH0147R
Position Heater To Flange To Pipe
Application Type Application Specific
Centerline Length Inches 27.1800
Centerline Length Metric 69.0372000
Color Black
Container Type BG
Country of Origin TR
Heat Shield Inc Yes
Hose End 1 Inside Diameter Inches 1.0600
Hose End 1 Inside Diameter Metric 2.6924000
Hose End 1 Outside Diameter Inches 1.4600
Hose End 1 Outside Diameter Metric 3.7084000
Hose End 2 Inside Diameter Inches 1.1300
Hose End 2 Inside Diameter Metric 2.8702000
Hose End 2 Outside Diameter Inches 1.4200
Hose End 2 Outside Diameter Metric 3.6068000
Hose End 3 Inside Diameter Inches 0.2500
Hose End 3 Inside Diameter Metric 0.6350000
Hose End 3 Outside Diameter Inches 0.3500
Hose End 3 Outside Diameter Metric 0.8890000
Hose End 4 Inside Diameter Inches 0.2500
Hose End 4 Inside Diameter Metric 0.6350000
Hose End 4 Outside Diameter Inches 0.3900
Hose End 4 Outside Diameter Metric 0.9906000
Hose End 5 Inside Diameter Inches 0.7500
Hose End 5 Inside Diameter Metric 1.9050000
Hose End 5 Outside Diameter Inches 0.9800
Hose End 5 Outside Diameter Metric 2.4892000
Hose End 6 Inside Diameter Inches 0.9100
Hose End 6 Inside Diameter Metric 2.3114000
Hose End 6 Outside Diameter Inches 1.2200
Hose End 6 Outside Diameter Metric 3.0988000
Hose Material EPDM
Hose Type Branched
Industry Standards SAE J20R4 -D1
Item Height 8.0000
Item Length 17.0000
Item Level GTIN 843266049327
Item Qty 1
Item UOM EA
Item Weight 1.0600
Item Weight Unit UOM LB
Item Width 9.0000
Link to Manufacturer Page www.reinautomotive.com
Maximum Working Pressure 149.0000
Product Desc Extended 240 Rein heater hoses are designed to be direct replacements for OE hoses and assemblies, Rein hoses are identical, from the size and shape of their branches to the thermoplastic quick connect fittings as called for by the OE.
Product Desc Invoice 40 Rein Heater Hose
Product Desc Long 80 Rein OE Quality Heater Hose
Product Desc Short 20 Heater Hose
Protective Shield Inc Yes
Qty of Branches 3
Qty of Quick Connect Fittings 2
Tech Note Complete OE Quality Direct Fit European Hose Assembly
Warranty Distance 24000
Warranty Time 24
Fits Volkswagen and Audi · 19 vehicles

OE direct replacement. Matches original hose and assembly dimensions for easier installation.

EPDM construction. Resists heat, salt, road debris, oil, and other contaminants.

Branched hose design. Built with thermoplastic quick connect fittings for a precise fit.

Cross-references 1J0121156AG, 1J0121156AN and 1J0121156AT for the same application. See all 7.

$113.04Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $113.04
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

OE Heater Hose for Volkswagen and Audi

Rein CHH0147R is an OE-quality HVAC heater hose built for European vehicles that need a direct replacement at the heater-to-flange-to-pipe connection. It is shaped to match the original hose routing and uses thermoplastic quick connect fittings for a cleaner, faster repair on Volkswagen Golf, Volkswagen Jetta, Audi TT, and Audi TT Quattro applications.

Key Features

  • Application-specific branched heater hose for exact OE-style routing
  • Direct replacement design reduces installation time
  • No cutting, refitting, or adjusting the hose during service
  • Thermoplastic quick connect fittings help prevent leaks from reused connectors and O-rings
  • EPDM hose construction resists heat, salt, road debris, oil, and other contaminants
  • Built to SAE J20R4 -D1 industry standards
  • Heat shield included for added thermal protection

Product Details

This Rein HVAC heater hose is engineered as a direct OE replacement for the original hose assembly, with the same branch layout and connector style specified by the vehicle manufacturer. Rein CHH0147R is designed for 2000-2006 Volkswagen Golf, 2000-2005 Volkswagen Jetta, 2000-2002 Audi TT, and 2000-2002 Audi TT Quattro at the heater to flange to pipe position. The EPDM construction and branched design support reliable coolant transfer in demanding underhood conditions, while the quick-connect ends help maintain a secure seal and accurate fit.

This part cross-references OE numbers 1J0121156AG and 1J0121156AN for the same application.

Common Repair Issues

  • Coolant seepage at worn heater hose connections
  • Cracked or hardened hose material from heat cycling
  • Leaks caused by damaged quick connectors or aged O-rings
  • Poor fitment after trying to reuse an original hose assembly
  • Extended repair time from trimming or adapting a universal hose

Installation Notes

Verify the hose routing and connector style against the original part before installation. This application-specific hose is made to replace the OE assembly without cutting or refitting, and the included quick connectors are designed to simplify service on the heater-to-flange-to-pipe connection. Inspect mating surfaces, seals, and adjacent cooling system components before reassembly to help ensure a proper seal.

Quality Assurance

Rein Automotive OE-quality heater hoses are built for European vehicle applications and manufactured to match original hose dimensions, branch shape, and connector design. Rein CHH0147R is produced to support dependable fit and sealing performance in Volkswagen and Audi cooling system repairs.

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2006VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2005VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2005VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2004VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2004VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2003VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2003VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2002AudiTT1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2002AudiTT Quattro1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2002VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2002VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2001AudiTT1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2001AudiTT Quattro1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2001VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2001VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2000AudiTT1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2000AudiTT Quattro1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2000VolkswagenGolf1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
2000VolkswagenJetta1.8LL4Heater To Flange To PipeQuick Connectors included for easy installation of HVAC heater hose.
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
1J0121156AG1J0121156AN1J0121156AT1J0121156J1J0121156S1J0121156T1J0122073J
