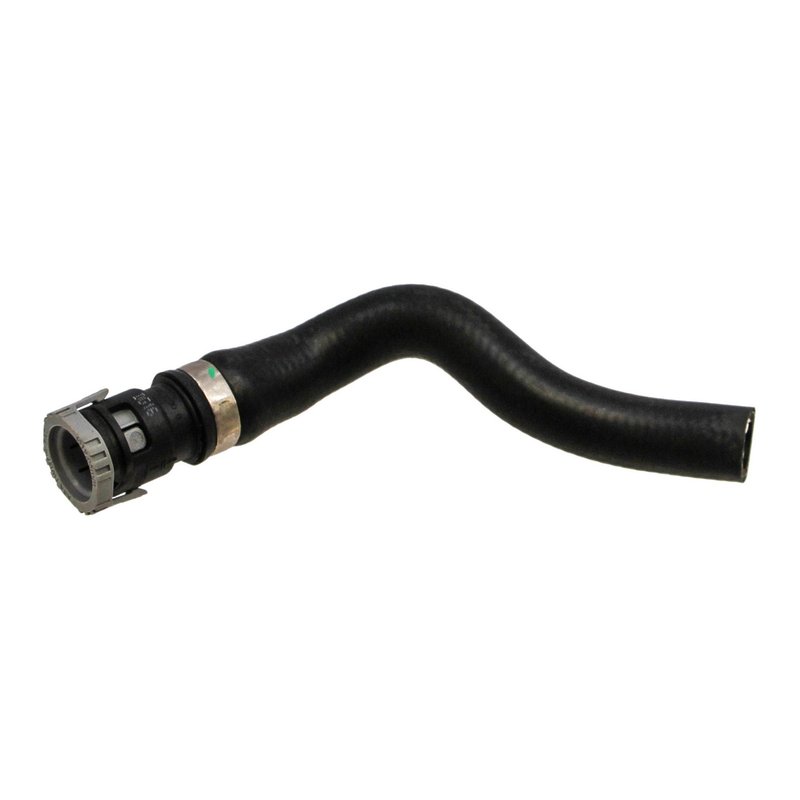

Rein CHH0512 HVAC Heater Hose - Heater Outlet Hose To Engine
| Brand | Rein CHH0512 |
|---|---|
| Position | Heater Outlet Hose To Engine |
| Application Type | ApplicationSpecific |
| Centerline Length Inches | 8.8500 |
| Centerline Length Metric | 22.4790000 |
| Color | Black |
| Container Type | BG |
| Country of Origin | TR |
| Heat Shield Inc | No |
| Hose End 1 Inside Diameter Inches | 0.7200 |
| Hose End 1 Inside Diameter Metric | 1.8288000 |
| Hose End 2 Inside Diameter Inches | 0.5700 |
| Hose End 2 Inside Diameter Metric | 1.4478000 |
| Hose End 3 Inside Diameter Inches | 0.0000 |
| Hose End 3 Inside Diameter Metric | 0.0000000 |
| Hose End 4 Inside Diameter Inches | 0.0000 |
| Hose End 4 Inside Diameter Metric | 0.0000000 |
| Hose End 5 Inside Diameter Inches | 0.0000 |
| Hose End 5 Inside Diameter Metric | 0.0000000 |
| Hose Material | EPDM |
| Hose Type | Single |
| Item Height | 1.7500 |
| Item Length | 9.0000 |
| Item Level GTIN | 843266076866 |
| Item Qty | 1 |
| Item UOM | EA |
| Item Weight | 0.2050 |
| Item Weight Unit UOM | LB |
| Item Width | 1.2500 |
| Link to Manufacturer Page | www.reinautomotive.com |
| Maximum Working Pressure | 0.0000 |
| Product Desc Extended 240 | Rein heater hoses are designed to be direct replacements for OE hoses and assemblies, Rein hoses are identical, from the size and shape of their branches to the thermoplastic quick connect fittings as called for by the OE. |
| Product Desc Invoice 40 | Rein Heater Hose |
| Product Desc Long 80 | Rein OE Quality Heater Hose |
| Product Desc Short 20 | Heater Hose |
| Protective Shield Inc | No |
| Qty of Quick Connect Fittings | 1 |
| Tech Note | Complete OE Quality Direct Fit European Hose |
| Warranty Distance | 24000 |
| Warranty Time | 24 |
| Fits | Volvo · 47 vehicles |
OE direct replacement. Direct-fit heater hose matches OE hose and assembly dimensions.
EPDM construction. Resists heat, salt, road debris, oil, and other contaminants.
Quick-connect fitting. Thermoplastic connector helps reduce installation time and leaks.
Cross-references Genu 30636954, 30636662 and 31439965 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE Heater Hose for Volvo Cooling System Service
Rein CHH0512 is an OE-quality HVAC heater hose built for European vehicle applications that require a direct-fit replacement. It is engineered to match the original hose shape and branch layout, helping restore proper coolant flow from the heater outlet hose to the engine on select Volvo models.
For Volvo C30, Volvo C70, Volvo S40, and Volvo V50 heater hose replacement, CHH0512 provides a direct-fit solution with thermoplastic quick connect fitting design and EPDM hose construction.
Key Features
- Direct replacement for OE heater hose and hose assembly applications
- Reduces installation time by matching the original routing and connection style
- No cutting, refitting, or adjusting the hose during installation
- Helps prevent leaks and repeat repairs from reused quick connectors and O-rings
- EPDM hose material resists heat, salt, road debris, oil, and other contaminants
- Thermoplastic quick connect fitting design for OE-style fitment
Detailed Description
Rein CHH0512 is a black HVAC heater hose designed for the heater outlet hose to engine position on select Volvo vehicles. It measures 8.85 inches centerline length and uses a single hose layout with one quick connect fitting, matching the OE configuration for a cleaner repair. This part cross-references Genu 30636954 for the same application.
Compatible With 2007-2013 Volvo C30, heater outlet hose to engine; 2006-2013 Volvo C70, heater outlet hose to engine; 2004-2011 Volvo S40, heater outlet hose to engine; and 2005-2011 Volvo V50, heater outlet hose to engine. If you are replacing a Volvo heater hose assembly, CHH0512 supports a direct-fit repair without modifying the hose shape or connection points.
Common Repair Issues
- Coolant seepage at the heater hose connection
- Cracked or heat-aged EPDM hose material
- Damaged quick connect fittings or worn O-rings
- Poor fitment after reusing an old hose assembly
- Extended repair time caused by trimming or reshaping the hose
Installation Notes and Quality Assurance
Install CHH0512 as an OE-style replacement for the original heater hose assembly. Verify the hose routing, connector style, and position before installation on your Volvo C30, C70, S40, or V50. The direct-fit design is intended to reduce the need for modification and help maintain a proper seal at the connection points.
Rein designs these heater hoses to OE quality standards for European vehicles, with construction and connector geometry matched to the original application. Warranty coverage is 24 months or 24,000 miles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2013 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2012 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2012 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2011 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2011 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2011 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2011 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | C30 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2010 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | C30 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2009 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | C30 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2008 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | C30 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | C30 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2007 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2006 | Volvo | C70 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2006 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2006 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2006 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2006 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2005 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2005 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2005 | Volvo | V50 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2005 | Volvo | V50 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
| 2004 | Volvo | S40 | 2.4L | L5 | Heater Outlet Hose To Engine | — |
| 2004 | Volvo | S40 | 2.5L | L5 | Heater Outlet Hose To Engine | — |
