OE Quality
60-Day Returns
Rotomaster

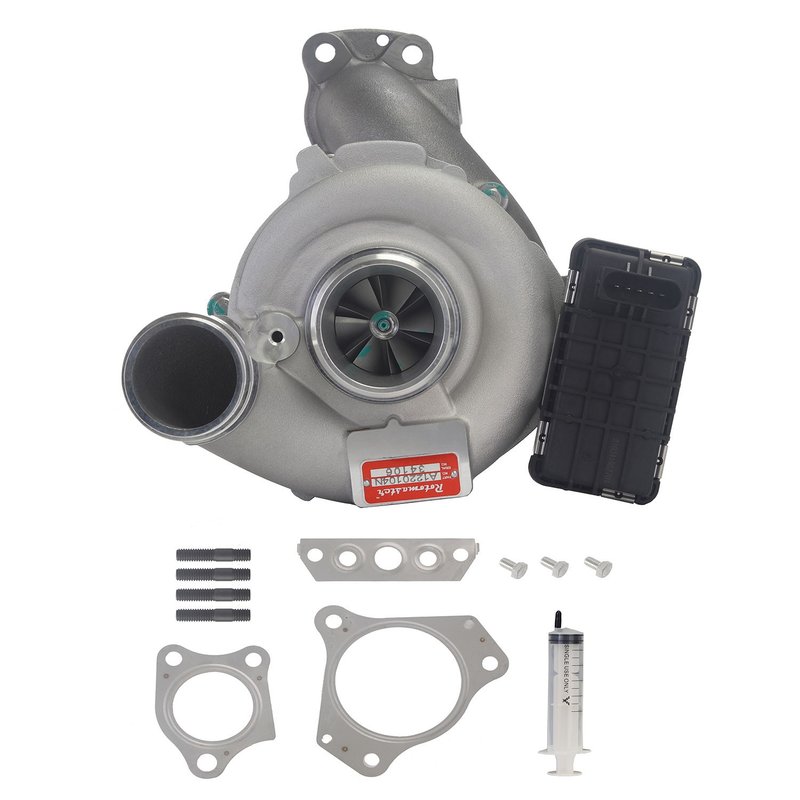

New TurbochargerRotomaster A1220104N Turbocharger
| Brand | Rotomaster A1220104N |
|---|---|
| Bearing Type | Journal |
| E-Waste | No |
| Material | Steel;Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Package Contents | Turbocharger; Instruction Sheets; Gaskets; Washers; O-ring; Studs; Syringe |
| Product Condition | New |
| Troubleshooting Tip | A decrease in engine power may be your first indication your turbocharger is damaged or has failed. |
| Troubleshooting Tip | Any nicks, scratches, or chips on either wheel are evidence foreign object damage caused by contaminants entering the airflow to or from the engine. |
| Troubleshooting Tip | Axial end play of the wheels and shaft in and out greater than the thickness of a sheet of paper indicates a worn thrust bearing due to excessive exhaust backpressure. |
| Troubleshooting Tip | Before a failed turbocharger is replaced the original cause of failure must be diagnosed and corrected to protect the new installation. |
| Troubleshooting Tip | Common signs of wear indicating replacement may be required: |
| Troubleshooting Tip | Worn engines with excessive blow by will result in crankcase pressurization, leading to oil leaking from the turbochargers internal seals. This may result in oil deposits in the intake manifold or smoke in the exhaust. This is not necessarily a sign of a failed turbocharger, but rather a sign that the engine needs to be rebuilt or replaced. |
| Turbocharger Cooling Method | Oil |
| Wastegate Actuator Included | Yes |
| Product line | New Turbocharger |
| Fits | Mercedes-Benz and Jeep · 35 vehicles |
Direct replacement. Designed and tested for OE fit and performance.
100% new components. Built and tested for trouble-free operation.
Journal bearing design. Uses steel and aluminum construction for dependable turbocharger performance.
Cross-references Jeep 68089008AA, Mercedes-Benz 6420905880 and Mercedes-Benz 6420908680 for the same application. See all 4.
$1,064.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Turbocharger options
Rotomaster New Turbocharger A1220104N
Rotomaster A1220104N is a 100% new turbocharger built for direct replacement on select Mercedes-Benz and Jeep diesel applications. It is engineered for OE fit and performance, with a journal bearing design, oil cooling, and a supplied wastegate actuator for proper boost control.
Key Features
- 100% new components, tested for trouble-free operation
- Journal bearing turbocharger with oil cooling
- Wastegate actuator included
- Meets or exceeds OE performance targets
- Includes gaskets, washers, O-ring, studs, syringe, and instruction sheets
- Designed for direct replacement service on select Mercedes-Benz Sprinter 2500, Sprinter 3500, ML350, GL350, R350, ML320, GL320, R320, and Jeep Grand Cherokee diesel models
Product Details
The Rotomaster New Turbocharger line is built for drivers who need a replacement turbo that matches original equipment fitment and performance. Part number A1220104N is made from steel and aluminum components and is supplied as a new unit for service on 2007-2020 Mercedes-Benz Sprinter 2500 and Sprinter 3500, plus select Mercedes-Benz GL350, ML350, R350, GL320, ML320, R320, and Jeep Grand Cherokee diesel applications. This part cross-references Jeep 68089008AA and Mercedes-Benz 6420905880, 6420908680, and 6420908980 for the same application.
What It Can Help Address
- Loss of engine power from a worn or damaged turbocharger
- Boost control issues related to a failed wastegate actuator
- Oil leakage or smoke caused by turbo wear or oil contamination
- Foreign object damage to compressor or turbine wheels
- Reduced performance from excessive shaft play or worn thrust bearings
Installation Notes and Tips
- Fits 2013-2020 Mercedes-Benz Sprinter 2500, N/A
- Fits 2013-2020 Mercedes-Benz Sprinter 3500, N/A
- Fits 2010-2012 Mercedes-Benz GL350, N/A
- Fits 2012 Mercedes-Benz R350, N/A
- Fits 2010-2012 Mercedes-Benz Sprinter 2500, N/A
- Fits 2010-2012 Mercedes-Benz Sprinter 3500, N/A
- Fits 2010-2011 Mercedes-Benz ML350, N/A
- Fits 2010-2011 Mercedes-Benz R350, N/A
- Fits 2009 Mercedes-Benz GL320, N/A
- Fits 2009 Mercedes-Benz ML320, N/A
- Fits 2009 Mercedes-Benz R320, N/A
- Fits 2007-2008 Jeep Grand Cherokee, N/A
- Replace engine oil, oil filter, and intake air filter before installation where noted in the fitment data.
- Inspect the intake and exhaust tract for contamination, and correct the original failure cause before installing the new turbocharger.
- Use the supplied pre-lube syringe during installation to protect internal components.
- Allow the engine to cool before shutdown to reduce the risk of oil coking.
Quality Assurance
Rotomaster designs and tests these turbochargers to match OE fit and performance and to comply with federal emissions regulations. The brand also notes that many turbo failures are linked to oil starvation, contaminated oil, or airflow contamination, so proper maintenance is important for long-term reliability.
This part fits 35 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2020 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2019 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2019 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2018 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2018 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2017 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2017 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2016 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2016 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2015 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2015 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2014 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2014 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2013 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2013 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2012 | Mercedes-Benz | GL350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2012 | Mercedes-Benz | R350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil, oil filter, and intake air filter MUST be changed to ensure proper replacement turbo function. Refer to installation guide in box. Failure to follow VOIDS WARRANTY |
| 2012 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2012 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2011 | Mercedes-Benz | GL350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2011 | Mercedes-Benz | ML350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2011 | Mercedes-Benz | R350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2011 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2011 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2010 | Mercedes-Benz | GL350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2010 | Mercedes-Benz | ML350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2010 | Mercedes-Benz | R350 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2010 | Mercedes-Benz | Sprinter 2500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2010 | Mercedes-Benz | Sprinter 3500 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2009 | Mercedes-Benz | GL320 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2009 | Mercedes-Benz | ML320 | Bluetec 4Matic | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2009 | Mercedes-Benz | R320 | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2008 | Jeep | Grand Cherokee | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| 2007 | Jeep | Grand Cherokee | — | 3.0L | V6 | N/A | Engine oil and filter change required for proper turbo function; follow installation guide, coordinate availability with sales rep for special order, and avoid stocking PO to prevent voiding warranty.; New Turbocharger |
| No rows match your filter. | |||||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Jeep — 68089008AAMercedes-Benz — 6420905880Mercedes-Benz — 6420908680Mercedes-Benz — 6420908980
