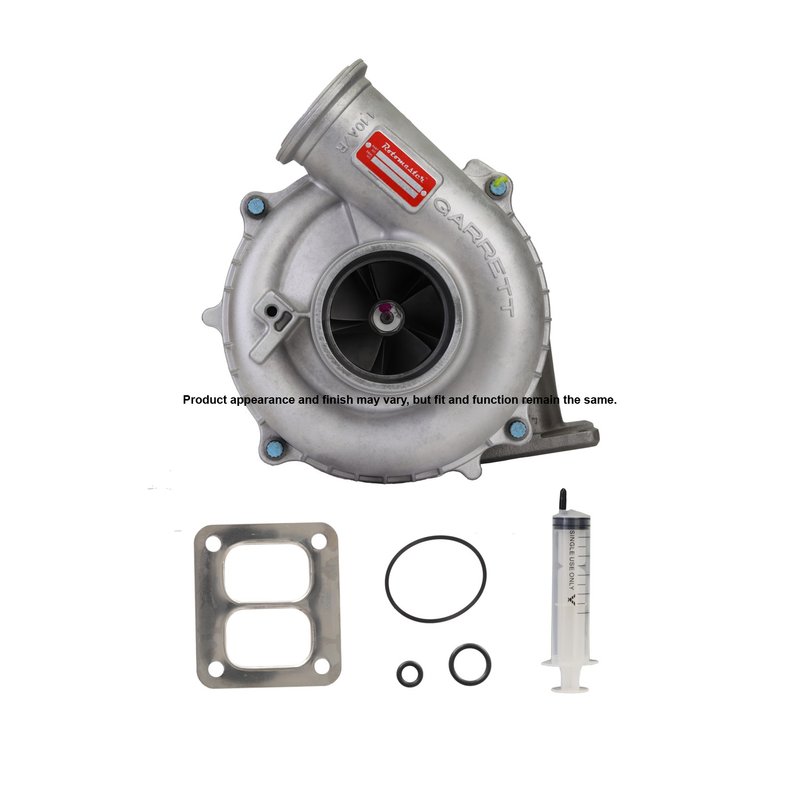

Rotomaster A8380101R Turbocharger
| Brand | Rotomaster A8380101R |
|---|---|
| Bearing Type | Journal |
| E-Waste | No |
| Material | Steel; Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Package Contents | Turbocharger; Gasket; O-rings; Syringe; Instruction Sheet |
| Product Condition | Remanufactured |
| Troubleshooting Tip | A decrease in engine power may be your first indication your turbocharger is damaged or has failed. |
| Troubleshooting Tip | Any nicks, scratches, or chips on either wheel are evidence foreign object damage caused by contaminants entering the airflow to or from the engine. |
| Troubleshooting Tip | Axial end play of the wheels and shaft in and out greater than the thickness of a sheet of paper indicates a worn thrust bearing due to excessive exhaust backpressure. |
| Troubleshooting Tip | Before a failed turbocharger is replaced the original cause of failure must be diagnosed and corrected to protect the new installation. |
| Troubleshooting Tip | Common signs of wear indicating replacement may be required: |
| Troubleshooting Tip | Worn engines with excessive blow by will result in crankcase pressurization, leading to oil leaking from the turbochargers internal seals. This may result in oil deposits in the intake manifold or smoke in the exhaust. This is not necessarily a sign of a failed turbocharger, but rather a sign that the engine needs to be rebuilt or replaced. |
| Turbocharger Cooling Method | Oil |
| Wastegate Actuator Included | No |
| Product line | Remanufactured Turbocharger |
| Fits | Ford · 14 vehicles |
OE direct replacement. Designed and tested for OE fit and performance.
Remanufactured unit. Renewed bearings, seals, and mating surfaces for lasting operation.
Journal bearing design. Built with steel and aluminum for reliable turbocharger performance.
Cross-references Ford F4TZ6V682CARM and Ford F4TZ6VK682CARM for the same application. See all 2.
Remanufactured Turbocharger for Ford 7.3L Applications
Restore boost response and engine efficiency with this Rotomaster remanufactured turbocharger, part number A8380101R. It is built as a direct replacement for select Ford E-350 Econoline, E-350 Econoline Club Wagon, F-250, F-250 HD, and F-350 diesel applications from 1994-1997.
Rotomaster remanufactured turbochargers are engineered and tested for O.E. fit and performance, making this a practical choice for Ford truck and van owners replacing a worn or failed turbocharger.
Key Features
- Remanufactured, direct-replacement turbocharger for select Ford applications
- Journal bearing design with oil cooling
- 100% of rotating, journal, and thrust bearings and seals replaced
- Mating surfaces and passages renewed as required for longer service life
- Wheels, shafts, and bores measured to controlled go/no-go tolerances
- Includes gasket, O-rings, syringe, and instruction sheet
- Meets or exceeds O.E. performance targets
Product Details
Rotomaster’s remanufactured turbocharger line focuses on restoring factory-style performance and fuel efficiency for vehicles that depend on reliable boost delivery. This A8380101R unit is designed for O.E. fitment on 1994-1997 Ford diesel platforms, including the E-350 Econoline, E-350 Econoline Club Wagon, F-250, F-250 HD, and F-350. The remanufacturing process replaces critical wear components, renews sealing surfaces, and verifies rotating assembly tolerances to support consistent operation.
This part cross-references Ford F4TZ6V682CARM and F4TZ6VK682CARM for the same application.
What It Helps Fix
- Loss of engine power or weak acceleration
- Turbocharger noise related to worn bearings or shaft wear
- Oil leakage from worn internal seals
- Smoke in the exhaust caused by turbocharger wear or oil contamination
- Boost loss from damaged wheels, shafts, or contaminated airflow
Installation Notes
- Fits 1994 Ford F-250, without wastegate and mounting pedestal.
- Fits 1994 Ford F-350, without wastegate and mounting pedestal.
- Fits 1995-1996 Ford F-250, N/A.
- Fits 1995-1997 Ford F-350, N/A.
- Fits 1995-1997 Ford E-350 Econoline, N/A.
- Fits 1995-1997 Ford E-350 Econoline Club Wagon, N/A.
- Fits 1997 Ford F-250 HD, N/A.
- Replace the engine oil and filter during turbocharger replacement.
- Follow the installation guide included in the box.
- Diagnose and correct the original cause of failure before installing the replacement unit.
- Use the supplied pre-lube syringe during installation to protect the turbocharger.
Quality Assurance
Rotomaster states that its remanufactured turbochargers are designed and tested to match O.E. fit and performance and to comply with federal emissions regulations. The brand’s remanufacturing process replaces key wear parts and verifies critical dimensions to help support dependable operation after installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1997 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1997 | Ford | F-250 HD | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1997 | Ford | F-350 | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1996 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1996 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1996 | Ford | F-250 | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1996 | Ford | F-350 | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1995 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1995 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1995 | Ford | F-250 | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1995 | Ford | F-350 | 7.3L | V8 | N/A | Engine oil and filter must be changed for proper replacement turbo function; follow installation guide in box, warranty void if mounting pedestal not included.; Remanufactured Turbocharger |
| 1994 | Ford | F-250 | 7.3L | V8 | N/A | Without Wastegate, Mounting Pedestal; Engine oil and filter change required for proper turbo replacement; Consult installation guide in box to avoid warranty void.; Remanufactured Turbocharger |
| 1994 | Ford | F-350 | 7.3L | V8 | N/A | Without Wastegate, Mounting Pedestal; Engine oil and filter change required for proper turbo replacement; Consult installation guide in box to avoid warranty void.; Remanufactured Turbocharger |
