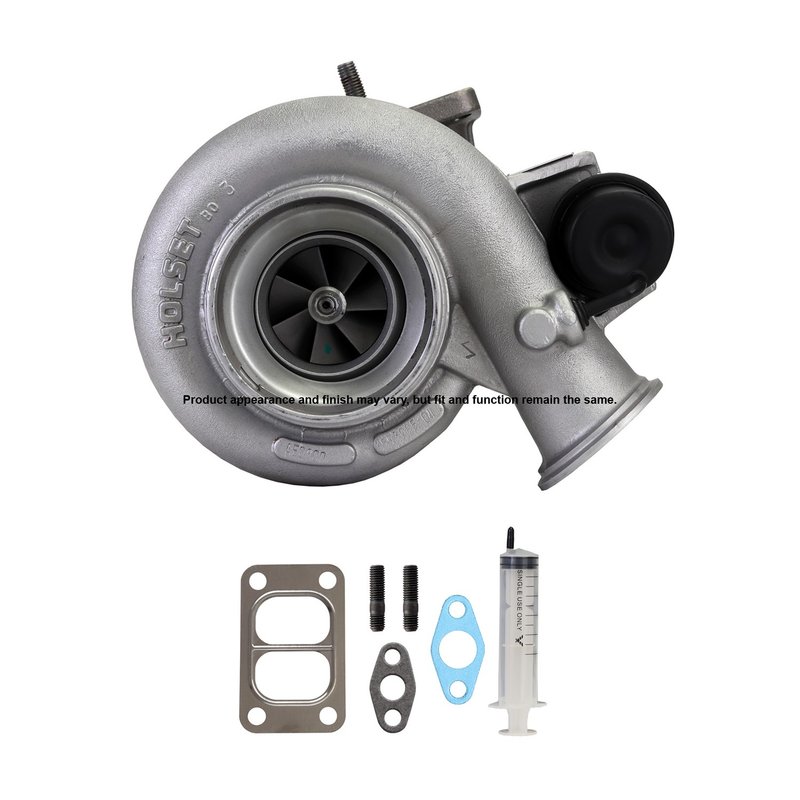

Rotomaster H8350109R Turbocharger
| Brand | Rotomaster H8350109R |
|---|---|
| Bearing Type | Journal |
| E-Waste | No |
| Material | Steel; Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Package Contents | Turbocharger; Gasket; O-ring; Syringe; Instruction Sheet |
| Product Condition | Remanufactured |
| Troubleshooting Tip | A decrease in engine power may be your first indication your turbocharger is damaged or has failed. |
| Troubleshooting Tip | Any nicks, scratches, or chips on either wheel are evidence foreign object damage caused by contaminants entering the airflow to or from the engine. |
| Troubleshooting Tip | Axial end play of the wheels and shaft in and out greater than the thickness of a sheet of paper indicates a worn thrust bearing due to excessive exhaust backpressure. |
| Troubleshooting Tip | Before a failed turbocharger is replaced the original cause of failure must be diagnosed and corrected to protect the new installation. |
| Troubleshooting Tip | Common signs of wear indicating replacement may be required: |
| Troubleshooting Tip | Worn engines with excessive blow by will result in crankcase pressurization, leading to oil leaking from the turbochargers internal seals. This may result in oil deposits in the intake manifold or smoke in the exhaust. This is not necessarily a sign of a failed turbocharger, but rather a sign that the engine needs to be rebuilt or replaced. |
| Turbocharger Cooling Method | Oil |
| Wastegate Actuator Included | Yes |
| Product line | Remanufactured Turbocharger |
| Fits | Dodge · 6 vehicles |
Direct replacement. Designed and tested for OE fit and performance.
Remanufactured unit. Renewed bearings, seals, and mating surfaces for dependable operation.
Journal bearing design. Built with steel and aluminum for efficient turbocharger performance.
Cross-references Dodge 5017787AC and Dodge 5017787AD for the same application. See all 2.
Remanufactured Turbocharger for Ram Diesel Applications
Rotomaster H8350109R is a remanufactured turbocharger built for direct replacement on select Dodge Ram diesel trucks. It is engineered to restore boost response, engine power, and fuel efficiency while maintaining O.E. fit and performance.
Compatible with 2000-2002 Dodge Ram 2500 and 2000-2002 Dodge Ram 3500 applications, this turbocharger is a practical service replacement for oil-cooled systems that use a journal bearing design and an included wastegate actuator.
Key Features
- Remanufactured Rotomaster turbocharger for direct replacement service
- Journal bearing construction with oil cooling
- Wastegate actuator included
- All rotating, journal, and thrust bearings and seals are replaced during remanufacturing
- Mating surfaces and passages are renewed as required for proper operation
- Wheels, shafts, and bores are measured to controlled go/no-go tolerances
- Includes gasket, O-ring, pre-lube syringe, and instruction sheet
- Meets or exceeds O.E. performance requirements
Product Details
Rotomaster’s remanufactured turbocharger line is built for vehicle owners who need a direct-fit replacement that matches original equipment performance. Part number H8350109R is designed for Dodge Ram 2500 and Ram 3500 diesel applications from 2000 through 2002, and it cross-references Dodge 5017787AC and 5017787AD for the same application. The remanufacturing process replaces critical wear components, renews sealing surfaces, and verifies dimensional control so the turbocharger can return the engine to proper boost delivery and drivability.
For buyers searching for a remanufactured turbocharger for 2001-2002 Dodge Ram 2500, a replacement turbocharger for 2001-2002 Dodge Ram 3500, or a direct-fit diesel turbocharger for 2000 Dodge Ram trucks, H8350109R is built around the original equipment configuration.
Common Issues This Part Can Address
- Loss of engine power or slow turbo spool-up
- Oil leakage from worn turbo seals
- Boost problems caused by worn bearings or shaft play
- Noise or damage related to foreign object contact
- Performance decline from a failed original turbocharger
Installation Notes
- Change the engine oil and filter before installation on the listed Dodge Ram diesel applications.
- Follow the included installation guide to protect turbocharger performance and warranty compliance.
- Use the pre-lube syringe during installation to help protect internal components.
- Inspect the air intake and exhaust system for contamination or damage before replacing the turbocharger.
- Diagnose and correct the original cause of failure before installing the new unit.
Quality Assurance
Rotomaster designs and tests these remanufactured turbochargers to match O.E. fit and performance and to comply with federal emissions regulations. The product is built with renewed wear components and controlled measurements to support reliable operation on the specified Dodge Ram 2500 and Ram 3500 diesel applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | Automatic | 5.9L | L6 | DIESEL | N/A | Change engine oil and filter, follow installation guide for best turbocharger performance and warranty compliance.; Remanufactured Turbocharger |
| 2002 | Dodge | Ram 3500 | Automatic | 5.9L | L6 | DIESEL | N/A | Change engine oil and filter, follow installation guide for best turbocharger performance and warranty compliance.; Remanufactured Turbocharger |
| 2001 | Dodge | Ram 2500 | Automatic | 5.9L | L6 | DIESEL | N/A | Change engine oil and filter, follow installation guide for best turbocharger performance and warranty compliance.; Remanufactured Turbocharger |
| 2001 | Dodge | Ram 3500 | Automatic | 5.9L | L6 | DIESEL | N/A | Change engine oil and filter, follow installation guide for best turbocharger performance and warranty compliance.; Remanufactured Turbocharger |
| 2000 | Dodge | Ram 2500 | Automatic | 5.9L | L6 | DIESEL | N/A | 2001 Diesel Tracking requires engine oil and filter change for proper turbocharger replacement; Warranty void if installation guide not followed.; Remanufactured Turbocharger |
| 2000 | Dodge | Ram 3500 | Automatic | 5.9L | L6 | DIESEL | N/A | 2001 Diesel Tracking requires engine oil and filter change for proper turbocharger replacement; Warranty void if installation guide not followed.; Remanufactured Turbocharger |
