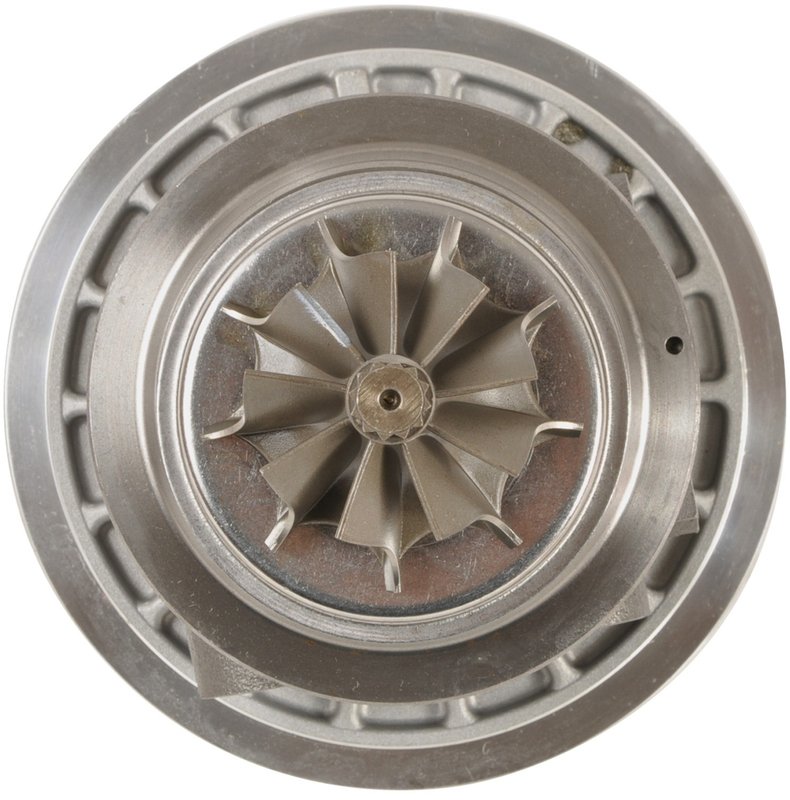

Rotomaster J1050203N Turbocharger Cartridge

Turbocharger Cartridge for Subaru Legacy and Outback

Rotomaster J1050203N is a new turbocharger cartridge built for 2005-2006 Subaru Legacy and 2005-2006 Subaru Outback applications. It replaces the core rotating assembly inside the turbocharger, helping restore performance without replacing the complete unit.

For Subaru Legacy turbocharger cartridge replacement or Subaru Outback turbo repair, this Rotomaster new turbocharger cartridge uses O.E.-grade components and a direct replacement design.

Key Features

• Journal bearing design
• Oil and coolant cooling method
• Direct O.E. replacement
• Allows reuse of the original compressor and turbine housings
• Eliminates the need to replace the entire turbocharger
• Supplied with O.E.-grade components for durability
• Allows turbocharger replacement without balancing

Product Details

The Rotomaster New Turbocharger Cartridge, part number J1050203N, is intended for repairs where the damage is isolated to the cartridge rather than the full turbocharger assembly. By replacing the cartridge, the original housings can be retained while restoring the core turbo function. This approach supports faster service on 2005-2006 Subaru Legacy and 2005-2006 Subaru Outback turbocharger repairs.

Rotomaster assembles this cartridge with O.E.-grade components to support durability and consistent operation. This part cross-references Monroe Shocks & Struts (e.g., N105203N) for the same application.

Common Problems This Part Can Address

• Turbocharger shaft or bearing wear
• Oil leakage within the turbo core
• Coolant-related turbo cartridge damage
• Loss of boost caused by a worn cartridge assembly
• Need to repair the turbocharger without replacing the complete housing assembly

Installation Notes and Tips

Confirm the original compressor and turbine housings are serviceable before installation. Inspect oil and coolant supply lines, clean related passages, and verify the turbo system is free of contamination before fitting the new cartridge. Proper diagnosis of the failed turbocharger is important before replacing the cartridge.

Compatible With 2005-2006 Subaru Legacy and 2005-2006 Subaru Outback. Part number J1050203N should be matched to the vehicle’s original turbocharger configuration before service.

Quality Assurance

Rotomaster builds this new turbocharger cartridge with O.E.-grade components and a direct replacement design for standard repair use. The cartridge is assembled to support reliable service in the original turbocharger housing arrangement.
