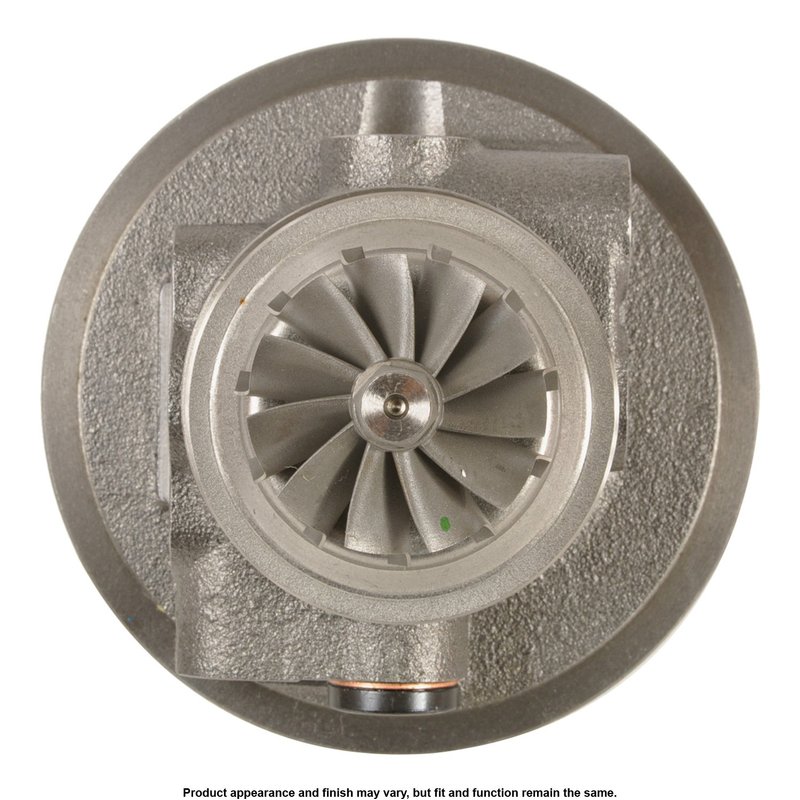

Rotomaster K1030220N Turbocharger Cartridge

Turbocharger Cartridge Replacement

Rotomaster K1030220N is a new turbocharger cartridge built for direct replacement of the core turbo assembly. It lets you service the internal cartridge instead of replacing the complete turbocharger, which can reduce repair time while preserving the original compressor and turbine housings.

Compatible With 2000-2006 Audi A4, 2000-2005 Audi A4 Quattro, and 2000-2005 Volkswagen Passat applications, this cartridge is assembled with O.E.-grade components for standard-duty service. It is a practical choice for Audi A4 turbocharger cartridge replacement and Volkswagen Passat turbo repair where the housings remain usable.

Key Features

• Direct O.E. replacement turbocharger cartridge
• Journal bearing design
• Oil and coolant cooling method
• Allows reuse of the original compressor and turbine housings
• Eliminates the need to replace the entire turbocharger
• Supplied with O.E.-grade components for durability
• Allows replacement without the need for balancing
• New product condition

Product Details

The Rotomaster New Turbocharger Cartridge line focuses on replacing the internal wear components of the turbocharger rather than the full assembly. For applications where the housings are still serviceable, K1030220N provides a direct-fit cartridge solution that supports efficient turbo repair on 2000-2006 Audi A4, 2000-2005 Audi A4 Quattro, and 2000-2005 Volkswagen Passat models. This part cross-references N103220C for the same application.

Common Repair Uses

• Turbo shaft or bearing wear
• Oil leakage from the cartridge area
• Loss of boost caused by internal turbo damage
• Excessive turbo noise from worn cartridge components
• Repair jobs where the original housings can be reused

Installation Notes

Inspect the compressor and turbine housings before installation and confirm they are reusable. Clean the turbo oil supply and return passages, verify coolant and oil routing, and follow the vehicle service procedure for priming the turbocharger before startup. K1030220N is a cartridge-only replacement, so the condition of the surrounding turbo components should be checked carefully during service.

Quality Assurance

Rotomaster assembles this cartridge with O.E.-grade components to support durability and consistent operation in standard turbocharger service.
