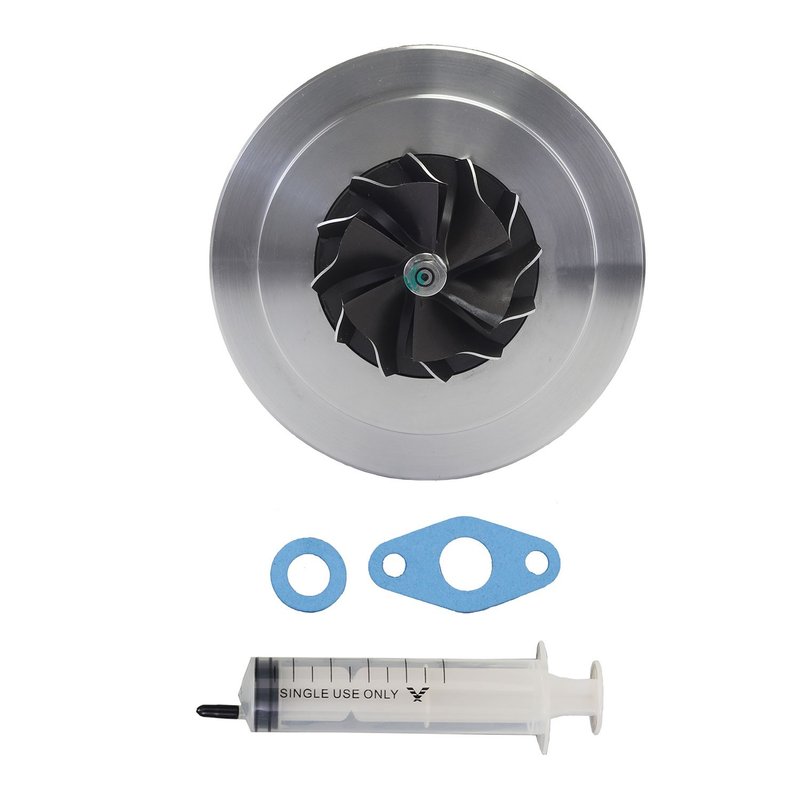

Rotomaster K1040215N Turbocharger Cartridge

Rotomaster Turbocharger Cartridge K1040215N

Rotomaster K1040215N is a new turbocharger cartridge built for direct OE-style repair when the turbocharger core is the failed component. It allows reuse of the original compressor and turbine housings, helping reduce repair time on select Mazda applications while restoring turbocharger function with O.E.-grade components.

Key Features

• Journal bearing design
• Oil and coolant cooled cartridge
• Direct OE replacement for cartridge-level turbo repair
• Allows reuse of the original compressor and turbine housings
• Eliminates the need to replace the entire turbocharger assembly
• Supplied with O.E.-grade components for durability
• Replacement without balancing required

Product Details

This Rotomaster New Turbocharger Cartridge is engineered for applications where the damage is isolated to the turbo core rather than the full assembly. By replacing the cartridge instead of the complete turbocharger, technicians can retain the original housings and complete the repair more efficiently. Part number K1040215N is a standard-grade, journal-bearing cartridge with oil and coolant cooling, built to support reliable turbocharger operation on 2006-2007 Mazda 6, 2007-2013 Mazda 3, and 2012 Mazda CX-7 applications. This part cross-references Monroe Shocks & Struts (e.g., N104215C) for the same application.

Common Repair Symptoms

• Turbocharger shaft play or worn bearing noise
• Loss of boost pressure
• Excessive smoke from turbocharger wear
• Oil leakage at the turbocharger center section
• Reduced acceleration or sluggish turbo response

Installation Notes

Confirm the original turbocharger housings are serviceable before installation. Clean the intake, exhaust, and oil passages thoroughly to remove contamination that could damage the replacement cartridge. Verify oil supply and coolant flow are correct, and follow the vehicle service procedure for priming and final inspection. Fits 2007-2013 Mazda 3, N/A. Fits 2012 Mazda CX-7, N/A. Fits 2006-2007 Mazda 6, N/A.

Quality Assurance

Rotomaster assembles this cartridge with O.E.-grade components to support durability and consistent performance in turbocharger repair applications. K1040215N is a new part designed as a direct replacement cartridge for the listed Mazda fitments.
