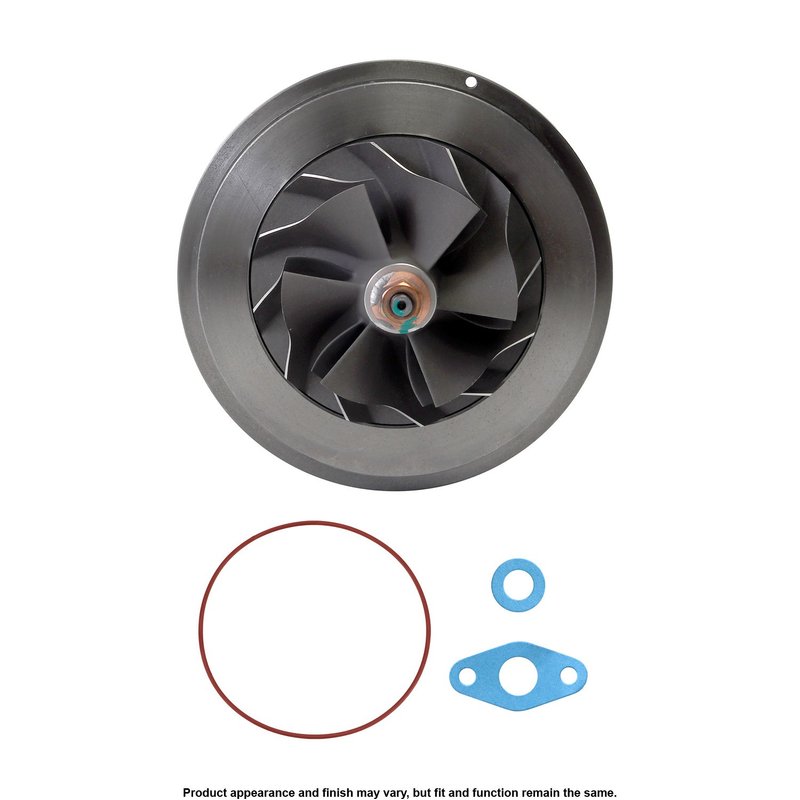

Rotomaster M1040204N Turbocharger Cartridge

Rotomaster New Turbocharger Cartridge M1040204N

Rotomaster M1040204N is a new turbocharger cartridge built for direct OE-style replacement when the turbocharger core has failed but the housings can be reused. It uses journal bearing construction with coolant cooling and O.E.-grade components to support reliable turbo repair on select Buick, Cadillac, Chevrolet, and GMC applications.

This New Turbocharger Cartridge line focuses on restoring the center section of the turbo assembly without replacing the entire unit. For service work on a Chevrolet Camaro turbocharger cartridge replacement or a Buick Envision turbo repair, M1040204N provides a practical path to reuse the original compressor and turbine housings.

Key Features

• Journal bearing design
• Coolant-cooled cartridge construction
• Direct OE replacement for the turbocharger core
• Allows reuse of the original compressor and turbine housings
• Eliminates the need to replace the entire turbocharger
• Supplied with O.E.-grade components for durability
• Allows turbocharger replacement without balancing
• New condition with gasket(s) and seal(s) included

Product Details

The Rotomaster New Turbocharger Cartridge line is intended for repairs where the damage is isolated to the cartridge rather than the full turbo assembly. By replacing the center section only, technicians can reduce repair time while keeping the original housings in service. Part number M1040204N is a standard-grade replacement built to OE specifications for consistent fit and function across supported vehicles.

Compatible With select 2013-2022 Buick, Cadillac, Chevrolet, and GMC models, including Chevrolet Camaro, Chevrolet Equinox, Chevrolet Malibu, Chevrolet Traverse, Buick Envision, Buick Regal, Buick Regal Sportback, Buick Regal TourX, Cadillac ATS, Cadillac CT6, Cadillac CTS, and GMC Terrain. This part cross-references GM OE numbers 12653326 and 12663028 for the same application.

What It Helps Address

• Turbocharger center section wear or failure
• Oil contamination affecting turbo operation
• Excess shaft play in the cartridge assembly
• Loss of boost caused by damaged internal turbo components
• Need to reuse existing turbo housings during repair

Installation Notes

• Follow the installation guide included in the box.
• For 2022 Chevrolet Camaro applications, engine oil, oil filter, and intake air filter must be changed to ensure proper replacement turbo function.
• Verify vehicle fitment by year, make, and model before installation.
• Clean related turbo oil passages and inspect the remaining turbo components during service.

Quality Assurance

Rotomaster assembles this cartridge with O.E.-grade components to support durability and OE-style performance in turbocharger repair applications. Part number M1040204N is a new replacement cartridge for service on supported Buick, Cadillac, Chevrolet, and GMC vehicles.
