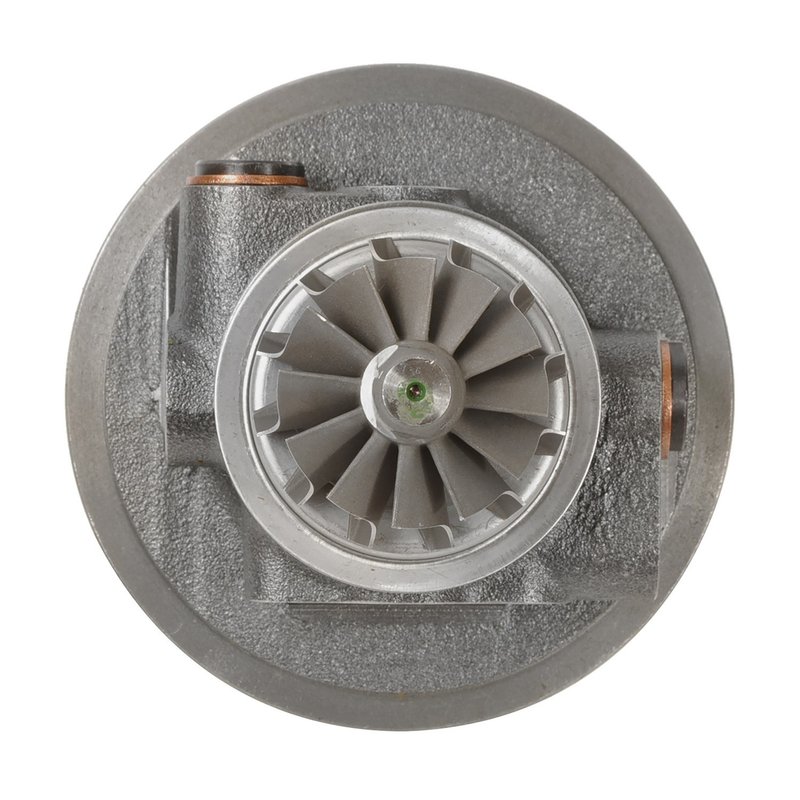

Rotomaster M1040223N Turbocharger Cartridge
| Brand | Rotomaster M1040223N |
|---|---|
| Bearing Type | Journal |
| Cooling Method | Oil and Coolant |
| E-Waste | No |
| Grade Type | Standard |
| Package Contents | Turbocharger Cartridge |
| Product Condition | New |
| Product line | New Turbocharger Cartridge |
| Fits | Hyundai · 3 vehicles |
Direct O.E. replacement. Replaces the turbocharger cartridge without needing balancing.
Reuse original housings. Keeps the compressor and turbine housings in service.
O.E.-grade components. Built with standard journal bearing construction for durability.
Cross-references N104223C for the same application. See all 1.
Rotomaster New Turbocharger Cartridge M1040223N
The Rotomaster New Turbocharger Cartridge M1040223N is a direct OE replacement for turbocharger repair on select Hyundai Genesis Coupe applications. It is built with journal bearings and oil-and-coolant cooling to support the core turbo assembly while allowing reuse of the original compressor and turbine housings.
For 2010-2012 Hyundai Genesis Coupe turbocharger cartridge service, this Rotomaster unit focuses on replacing the damaged center section rather than the complete turbocharger. The M1040223N cartridge is assembled with OE-grade components for durability and is supplied as a new cartridge for standard-grade repair work.
Key Features
- Direct OE replacement turbocharger cartridge
- Journal bearing design
- Oil and coolant cooling method
- Allows reuse of the original compressor and turbine housings
- Eliminates the need to replace the entire turbocharger
- Allows turbocharger replacement without balancing
- Supplied with OE-grade components for durability
- New Rotomaster turbocharger cartridge, part number M1040223N
Product Details
Rotomaster New Turbocharger Cartridge M1040223N is intended for turbocharger repair where the damage is isolated in the cartridge, also known as the turbo center section. By replacing the cartridge instead of the full assembly, technicians can retain serviceable housings and reduce repair time. This part cross-references N104223C for the same application. It is listed for 2010-2012 Hyundai Genesis Coupe models, and the fitment notes indicate special order availability should be confirmed with a sales representative.
Common Problems This Part Can Address
- Turbocharger shaft or bearing wear
- Oil leakage from the turbo center section
- Coolant-related turbo cartridge damage
- Loss of boost caused by internal turbo failure
- Need to replace a damaged cartridge without changing the full turbocharger
Installation Notes and Tips
Before installation, inspect the compressor and turbine housings for cracks, scoring, or contamination. Clean the oil and coolant passages thoroughly, and verify that the engine oil supply is free of debris before starting the vehicle. Because this cartridge is a direct OE replacement, it is suited to repair work where the original housings remain serviceable. Confirm 2010-2012 Hyundai Genesis Coupe application details and special order availability before installation.
Quality Assurance
Rotomaster assembles this new turbocharger cartridge with OE-grade components to support durability and consistent performance in standard replacement service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Hyundai | Genesis Coupe | 2.0L | L4 | N/A | Consult sales representative for Turbocharger Cartridge special order availability.; New Turbocharger Cartridge |
| 2011 | Hyundai | Genesis Coupe | 2.0L | L4 | N/A | Consult sales representative for Turbocharger Cartridge special order availability.; New Turbocharger Cartridge |
| 2010 | Hyundai | Genesis Coupe | 2.0L | L4 | N/A | Consult sales representative for Turbocharger Cartridge special order availability.; New Turbocharger Cartridge |
| No rows match your filter. | ||||||
