Schrader Valves 20002 Tire Pressure Monitoring System (TPMS) Sensor Service Kit

TPMS Sensor Service Kit for Ford and Lincoln

Schrader Valves 20002 is a Tire Pressure Monitoring System (TPMS) sensor service kit for select Ford, Lincoln, and Mercury applications. It includes the service components needed to refresh a TPMS sensor during wheel service, helping restore a proper seal and secure valve hardware.

• Caps included: yes
• Grommets included: yes

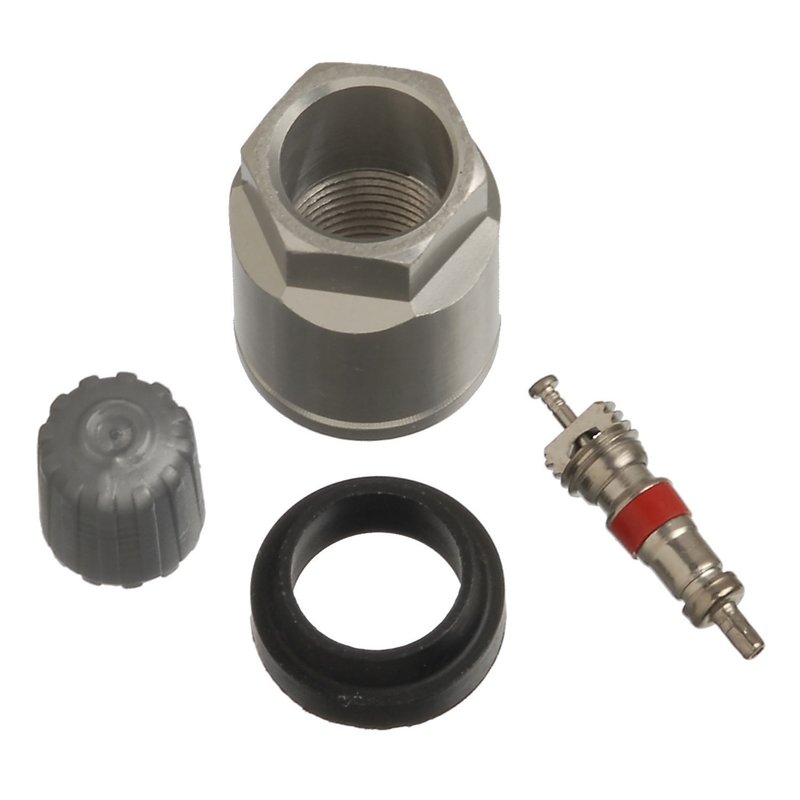

• Kit contents: plastic cap, Ni plated valve core, rubber grommet, aluminum nut
• Valves included: none
• Manufacturer warranty: 1 year

Service Kit Details

This Schrader Valves 20002 TPMS sensor service kit is built around the wear items commonly replaced during tire and wheel maintenance. The included plastic cap, nickel-plated valve core, rubber grommet, and aluminum nut support a proper reseal of the sensor assembly after service. It is a direct-fit service solution for TPMS-equipped vehicles such as the Ford Expedition, Ford Explorer, Ford Freestar, Lincoln Navigator, Lincoln Aviator, and Mercury Mountaineer in the listed model years.

This part cross-references Standard Ignition TPM1060K and DENSO Auto Parts 999-0625 for the same application.

Vehicle Fitment

• Fits 2002-2006 Ford Expedition, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.
• Fits 2002-2005 Ford Explorer, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.
• Fits 2004-2005 Ford Freestar, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.
• Fits 2002-2006 Lincoln Navigator, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.
• Fits 2003-2005 Lincoln Aviator, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.
• Fits 2001-2005 Mercury Mountaineer, N/A. Torque specification for TPMS sensor service kit: 44 in-lbs (5 N.m); to be replaced by 20004.

Common Service Uses

• Replacing worn TPMS valve sealing components during tire service
• Addressing air loss at the sensor stem or grommet area
• Refreshing corroded or damaged valve core hardware
• Restoring a secure TPMS sensor seal after wheel removal
• Servicing TPMS hardware on Ford, Lincoln, and Mercury vehicles listed above

Installation Notes

Follow the specified torque value of 44 in-lbs (5 N.m) during installation. Inspect the sensor stem, sealing surfaces, and wheel bore before assembly, and replace any damaged components before reinstallation. This kit is intended for TPMS service work on the listed Ford Expedition, Ford Explorer, Lincoln Navigator, Lincoln Aviator, Ford Freestar, and Mercury Mountaineer applications.

Quality Assurance

Schrader Valves backs this service kit with a 1-year manufacturer warranty.
