Schrader Valves 20017 Tire Pressure Monitoring System (TPMS) Sensor Service Kit

TPMS Service Kit for OE-Style Repairs

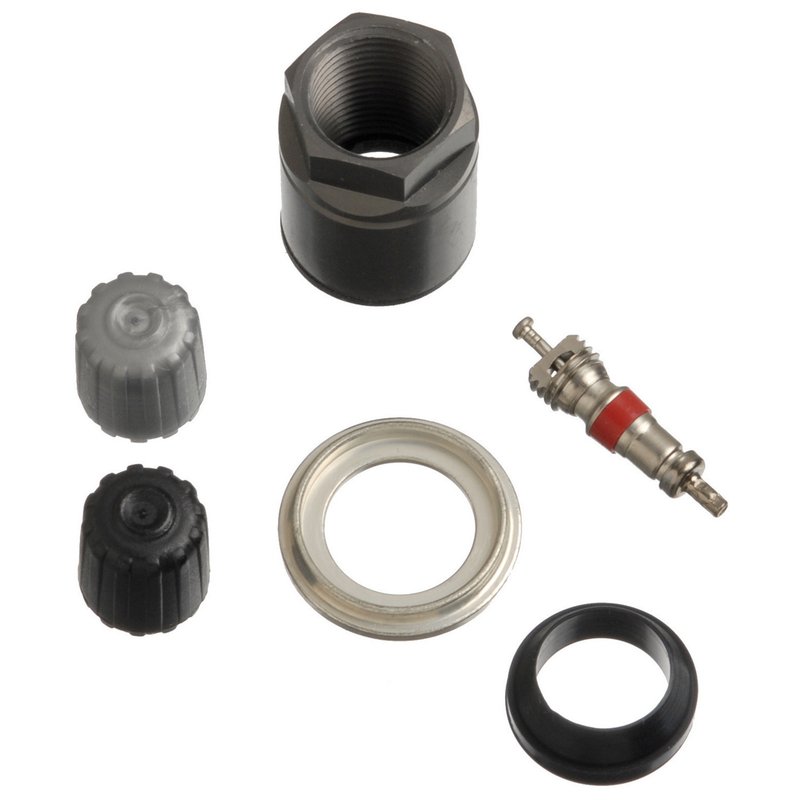

Schrader Valves 20017 is a tire pressure monitoring system sensor service kit for servicing TPMS valve stem components on a wide range of Audi, Volkswagen, and Toyota applications. It includes the core service pieces needed for a proper seal and valve service: plastic cap, nickel-plated valve core, rubber grommet, and aluminum nut.

Key Features

• TPMS sensor service kit for tire and wheel service work
• Includes caps, grommets, valve core, and retaining nut
• Plastic cap and nickel-plated valve core for standard TPMS valve service
• Rubber grommet and aluminum nut included for sealing and retention
• Direct service part from Schrader Valves
• Manufacturer warranty: 1 year

Detailed Description

Schrader Valves 20017 is built for TPMS maintenance on vehicles that use a serviceable valve stem assembly. It is commonly used on Audi A3, A4, A5, Q5, S4, S5, TT, and Volkswagen Passat, Jetta, GTI, Tiguan, Eos, Beetle, and Golf applications, along with select Toyota 86 coverage. This part cross-references Continental SE54526 and Standard Ignition TPM1030K for the same application. If you are replacing worn sealing components during TPMS service, Schrader Valves 20017 provides the core hardware needed to restore proper valve stem function.

Vehicle Fitment

• Fits 2012-2021 Volkswagen Passat, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2010 Volkswagen Passat, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2017 Toyota 86, N/A; Quantity Included: 1
• Fits 2009-2017 Volkswagen CC, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2007-2016 Volkswagen Eos, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2013 Audi A3, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2013 Audi A3 Quattro, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2008-2013 Audi A4, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2002-2012 Audi A4 Quattro, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2008-2012 Audi A5, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2008-2012 Audi A5 Quattro, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2009-2012 Audi Q5, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2010-2012 Audi S4, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2008-2012 Audi S5, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2011-2012 Volkswagen Passat CC, N/A; Quantity Included: 1
• Fits 2009-2012 Volkswagen Tiguan, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2011 Audi TT, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2011 Audi TT Quattro, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2010-2011 Volkswagen Golf, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2005-2011 Volkswagen Jetta, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2010 Audi S3, N/A; Quantity Included: 1
• Fits 2007-2010 Volkswagen Beetle, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2010 Volkswagen Beetle Cabrio, N/A; Quantity Included: 1
• Fits 2008-2010 Volkswagen Golf City, N/A; Quantity Included: 1
• Fits 2010 Volkswagen Golf SportWagen, N/A; Quantity Included: 1
• Fits 2006-2010 Volkswagen GTI, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2009-2010 Volkswagen Passat CC, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2007-2009 Volkswagen Jetta City, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2008 Volkswagen R32, N/A; 50 pack; BlackNut; Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
• Fits 2006-2007 Volkswagen Golf, N/A; Quantity Included: 1

What It Helps Solve

• Leaking TPMS valve stem seals
• Corroded or damaged valve cores
• Worn retaining nuts or grommets during TPMS service
• Maintenance issues after tire replacement or wheel service
• Restoration of proper TPMS valve stem sealing on Audi A4 Quattro and Volkswagen Jetta applications

Installation Notes and Tips

Use the listed torque values during installation: nut torque is 71 in-lbs (8 Nm) and valve core torque is 3.5 in-lbs (0.4 Nm) where specified in the fitment notes. Confirm the vehicle’s TPMS valve style before service, and replace sealing components whenever the sensor or valve stem is removed. For Audi A3, Volkswagen Passat, and Volkswagen GTI fitments, follow the application-specific notes shown above.

Quality Assurance

Schrader Valves 20017 is backed by a 1-year manufacturer warranty.
