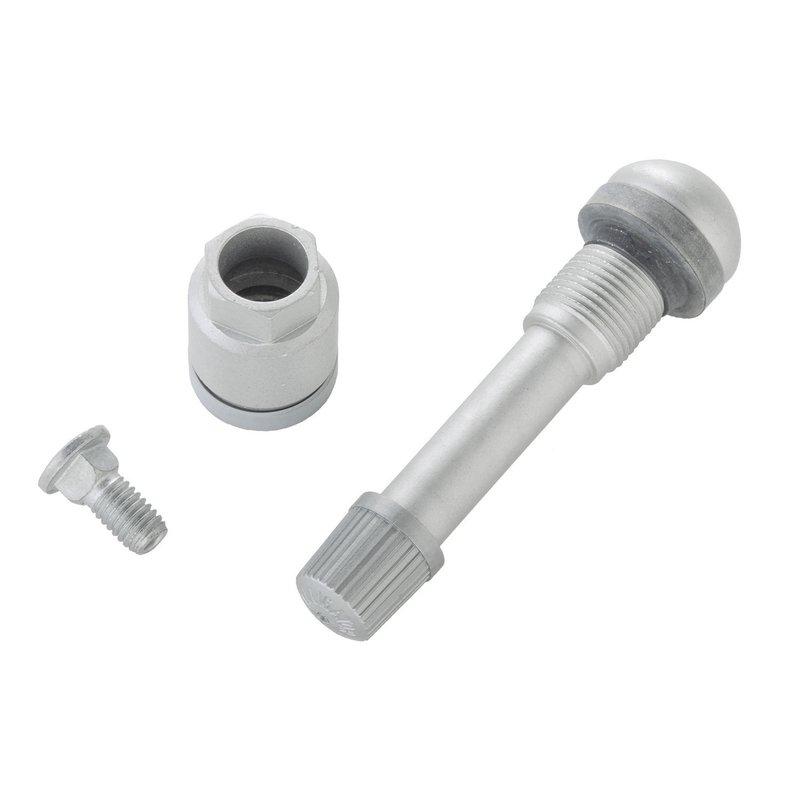

Schrader Valves 20035 Tire Pressure Monitoring System (TPMS) Sensor Service Kit
OE Quality 60-Day Returns
Schrader Valves

Schrader Valves 20035 Tire Pressure Monitoring System (TPMS) Sensor Service Kit

Brand Schrader Valves 20035
Caps Included Yes
Grommets Included Yes
Kit Contents Plastic cap, ni plated valve core, rubber grommet, aluminum nut,
Manufacturer Warranty 1 year
Valves Included 1
Fits Honda · 4 vehicles

Service kit included. Plastic cap, nickel-plated valve core, rubber grommet, aluminum nut, and aluminum valve.

Complete sealing components. Includes the cap and grommet needed for a proper TPMS sensor service.

For tire pressure monitoring system sensor service.

Cross-references Continental SE54550, MTC/Ronak 1097 and Standard Ignition TPM1100K for the same application. See all 6.

$23.54Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $23.54
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor Service Kit options

TPMS Sensor Service Kit for Honda Ridgeline and Pilot

Schrader Valves Part Number 20035 is a Tire Pressure Monitoring System (TPMS) sensor service kit built for select Honda applications. It includes the service components needed for TPMS valve stem maintenance, with a plastic cap, nickel-plated valve core, rubber grommet, aluminum nut, and aluminum valve.

Key Features

  • Fits 2006-2008 Honda Ridgeline, N/A
  • Fits 2005 Honda Pilot, N/A
  • Includes caps and grommets
  • Service kit contents: plastic cap, Ni plated valve core, rubber grommet, aluminum nut, aluminum valve
  • One valve included
  • Manufacturer warranty: 1 year

Detailed Description

Schrader Valves 20035 is a TPMS sensor service kit for Honda Ridgeline and Honda Pilot models listed in the fitment data. It is intended for TPMS valve stem service where the valve hardware needs to be renewed during sensor maintenance. The kit’s aluminum valve, aluminum nut, rubber grommet, nickel-plated valve core, and plastic cap provide the service components commonly used in TPMS valve assemblies. This part cross-references Continental SE54550 for the same application.

Common Issues This Kit Can Address

  • Damaged or worn TPMS valve stem service components
  • Air leaks at the valve grommet or valve nut area
  • Corrosion on valve core or valve hardware
  • TPMS service work on Honda Ridgeline and Honda Pilot wheel assemblies
  • Replacement of aging valve stem parts during sensor maintenance

Installation Notes and Tips

Verify vehicle fitment before installation. For the listed Honda Ridgeline and Honda Pilot applications, follow the torque specification shown in the fitment notes: 35 in-lbs (4 N.m). Use proper TPMS service procedures and inspect the valve seat, grommet, and nut surfaces before assembly.

Quality Assurance

Schrader Valves Part Number 20035 includes a 1-year manufacturer warranty.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008HondaRidgelineN/A25 kits per box; Long Valve included; Torque: 35in-lbs, 4N.m
2007HondaRidgelineN/A25 kits per box; Long Valve included; Torque: 35in-lbs, 4N.m
2006HondaRidgelineN/A25 kits per box; Long Valve included; Torque: 35in-lbs, 4N.m
2005HondaPilotN/A25 kits per box; Long Valve; Torque: 35in-lbs, 4N.m
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Continental — SE54550MTC/Ronak — 1097Standard Ignition — TPM1100KStandard Ignition — TPM2000K609-150.1920160
