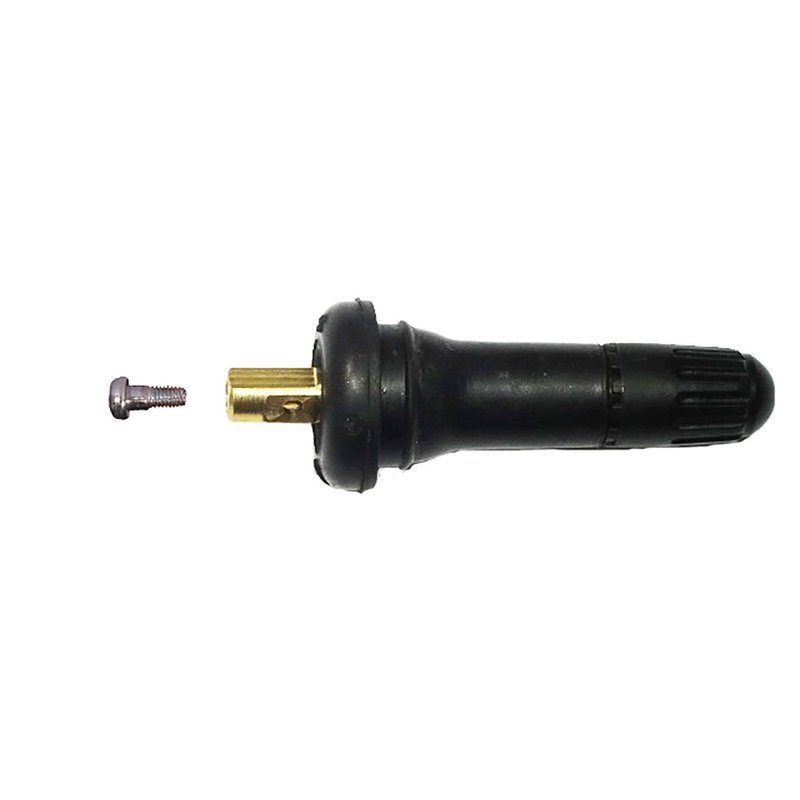

Schrader Valves 20046 Tire Pressure Monitoring System (TPMS) Sensor Service Kit

TPMS Sensor Service Kit for Ford and Hyundai Applications

Schrader Valves 20046 is a Tire Pressure Monitoring System (TPMS) sensor service kit built for select Ford, Lincoln, Hyundai, Kia, Volvo, Fiat, Mercedes-Benz, Genesis, and Smart vehicles. It includes the service components needed for TPMS sensor maintenance, with a rubber valve, plastic cap installed, valve core installed, and stainless steel screw.

Key Features

• Schrader Valves TPMS sensor service kit, part number 20046
• Rubber valve included with plastic cap installed
• Valve core installed for service-ready assembly
• Stainless steel screw included
• Caps included: Yes
• Grommets included: Not required
• Manufacturer warranty: 1 year
• Cross-reference: Standard Ignition TPM2020VK

Product Details

This Schrader Valves 20046 service kit is specified for TPMS sensor service on vehicles using the Schrader Snap-in MINI HSSI design with 315MHz Ford PAL FSK systems. It is listed for applications such as the Ford F-150, Ford Edge, Ford Explorer, Ford Mustang, Hyundai Sonata, Hyundai Tucson, Kia Soul, Kia Telluride, Lincoln Navigator, Volvo XC90, and other covered models. Use this part when servicing the valve-side components of a TPMS sensor assembly and maintaining proper sealing and retention at the wheel.

Common Issues This Kit Can Address

• Damaged or worn TPMS valve hardware
• Cracked or missing valve cap
• Leaking valve stem service components
• Corrosion or wear at the valve core area
• TPMS service needs during tire replacement or wheel repair

Installation Notes and Tips

• Verify the vehicle uses the Schrader Snap-in MINI HSSI, 315MHz, Ford PAL FSK configuration before installation.
• Follow the listed torque values: screw torque 11.5 in-lbs (1.3 Nm) and valve core torque 3.5 in-lbs (0.4 Nm).
• Inspect the wheel and TPMS sensor body for damage before installing service parts.
• Use proper TPMS service procedures to avoid leaks or sensor damage.

Quality Assurance

Schrader Valves 20046 is backed by a 1-year manufacturer warranty. It is a service kit from a recognized TPMS component brand and is listed for direct-fit service use on confirmed applications including Ford, Lincoln, Hyundai, Kia, Volvo, Fiat, Mercedes-Benz, Genesis, and Smart models.
