Schrader ValvesPart #: 20131

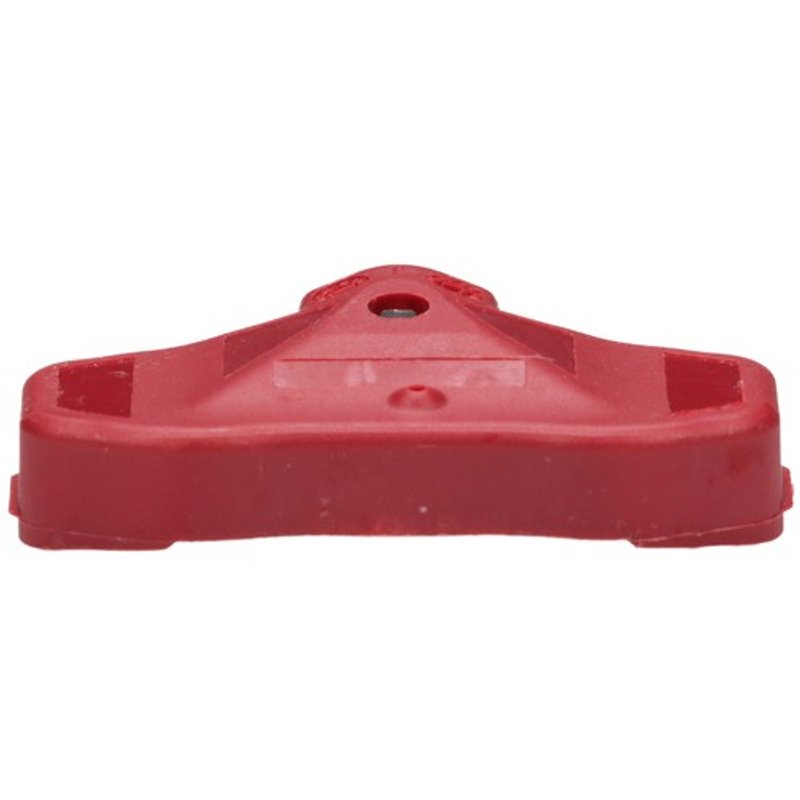

Schrader Valves 20131 Tire Pressure Monitoring System (TPMS) Sensor
78 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$32.97Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Cadillac, Chevrolet, GMC, Hummer, Isuzu, and Pontiac, Avalanche 1500, Avalanche 2500, Canyon, Colorado, Escalade, Escalade ESV, Escalade EXT, H3, H3T, i-290, i-370, Montana, Sierra 1500, Sierra 1500 HD, Sierra 2500 HD, Sierra 3500, Sierra 3500 Classic, Silverado 1500, Silverado 1500 HD, Silverado 1500 HD Classic, Silverado 2500, Silverado 2500 HD, Silverado 3500, Suburban 1500, Suburban 2500, Tahoe, Yukon, Yukon XL 1500, and Yukon XL 2500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options
Schrader TPMS Sensor 20131 for GM Trucks and SUVs
Schrader Valves 20131 is a direct tire pressure monitoring system sensor for 315 MHz applications. It uses a clamp-in aluminum valve stem, pre-programmed non-programmable activation, and real-time pressure signal transmission for accurate TPMS replacement service.
Key Features
- Direct TPMS sensor with real-time pressure signal transmission
- 315 MHz frequency for listed GM truck and SUV applications
- Clamp-in design with aluminum valve stem and silver valve color
- Battery-powered sensor with plastic housing
- Pre-programmed, non-programmable activation type
- Package includes transmitter, installed Ni plated valve core, installed plastic cap, and aluminum nut
- Schrader Valves part number 20131
Detailed Description
Schrader Valves 20131 is built for direct TPMS service on a wide range of Chevrolet, GMC, Cadillac, Hummer, Isuzu, and Pontiac vehicles that use a 315 MHz sensor. It is a clamp-in tire pressure monitoring system sensor with an aluminum stem and battery power, and it transmits pressure data in real time to the vehicle monitoring system. This part cross-references Dorman - OE Solutions 974-007 for the same application.
Compatible With 2004-2014 Chevrolet Colorado, 2004-2012 GMC Canyon, 2006-2010 Hummer H3, 2009-2010 Hummer H3T, 2009 Pontiac Montana, 2007-2008 Isuzu i-290, 2007-2008 Isuzu i-370, 2005-2007 Chevrolet Silverado 1500, 2005-2007 Chevrolet Silverado 2500, 2007 Chevrolet Silverado 1500 HD Classic, 2005-2007 GMC Sierra 1500, 2005-2007 GMC Sierra 2500 HD, 2007 GMC Sierra 3500 Classic, 2005-2006 Cadillac Escalade, 2005-2006 Cadillac Escalade ESV, 2005-2006 Cadillac Escalade EXT, 2005-2006 Chevrolet Avalanche 1500, 2005-2006 Chevrolet Avalanche 2500, 2005-2006 Chevrolet Silverado 1500 HD, 2005-2006 Chevrolet Silverado 2500 HD, 2005-2006 Chevrolet Silverado 3500, 2005-2006 Chevrolet Suburban 1500, 2005-2006 Chevrolet Suburban 2500, 2005-2006 Chevrolet Tahoe, 2005-2006 GMC Sierra 1500 HD, 2005-2006 GMC Sierra 3500, 2005-2006 GMC Yukon, 2005-2006 GMC Yukon XL 1500, and 2005-2006 GMC Yukon XL 2500. The listed applications use 315 MHz and note replacement of sensor 20107 where applicable.
What It Helps Address
- TPMS warning light caused by a failed sensor
- Loss of tire pressure signal on 315 MHz systems
- Sensor replacement needs after wheel service or aging battery failure
- Incorrect or missing pressure data in the vehicle monitoring system
- Replacement of OE-style sensor 20107 applications
Installation Notes and Tips
- Verify the vehicle uses a 315 MHz direct TPMS system before ordering.
- Follow the listed torque notes: nut torque 62 in-lbs (7 Nm) and valve core torque 3.5 in-lbs (0.4 Nm) where specified.
- Use the correct relearn or initialization procedure for the vehicle after installation.
- Confirm wheel and valve stem condition before mounting the clamp-in sensor.
- Schrader Valves 20131 is supplied as a single sensor.
Quality Assurance
Schrader Valves 20131 includes a 1-year manufacturer warranty. It is a direct TPMS replacement sensor with the specified 315 MHz frequency and OE-style fitment coverage for listed Chevrolet, GMC, Cadillac, Hummer, Isuzu, and Pontiac applications.
| Brand | Schrader Valves |
|---|---|
| Part Number | 20131 |
| Material | Aluminum |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Clamp-in |
| Mounting Hardware Included | Yes |
| Valve Color | Silver |
| Frequency | 315 |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Transmitter, ni plated valve core (installed), plastic cap (insta |
| Package Quantity | 1 |
This part fits 78 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2013 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2012 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2012 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2011 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2011 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2010 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2010 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2010 | Hummer | H3 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2010 | Hummer | H3T | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2009 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2009 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2009 | Hummer | H3 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2009 | Hummer | H3T | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2009 | Pontiac | Montana | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2008 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2008 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2008 | Hummer | H3 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2008 | Isuzu | i-290 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2008 | Isuzu | i-370 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | Chevrolet | Silverado 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | Chevrolet | Silverado 1500 HD Classic | N/A | Quantity Included: 1 |
| 2007 | Chevrolet | Silverado 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | GMC | Sierra 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | GMC | Sierra 2500 HD | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | GMC | Sierra 3500 Classic | N/A | Quantity Included: 1 |
| 2007 | Hummer | H3 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | Isuzu | i-290 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2007 | Isuzu | i-370 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Cadillac | Escalade | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Cadillac | Escalade ESV | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Cadillac | Escalade EXT | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Avalanche 1500 | N/A | Quantity Included: 1 |
| 2006 | Chevrolet | Avalanche 2500 | N/A | Quantity Included: 1 |
| 2006 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Silverado 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Silverado 1500 HD | N/A | Quantity Included: 1 |
| 2006 | Chevrolet | Silverado 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Silverado 2500 HD | N/A | Quantity Included: 1 |
| 2006 | Chevrolet | Silverado 3500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Suburban 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Suburban 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Chevrolet | Tahoe | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Sierra 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Sierra 1500 HD | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Sierra 2500 HD | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Sierra 3500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Yukon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Yukon XL 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | GMC | Yukon XL 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2006 | Hummer | H3 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Cadillac | Escalade | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Cadillac | Escalade ESV | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Cadillac | Escalade EXT | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Avalanche 1500 | N/A | Quantity Included: 1 |
| 2005 | Chevrolet | Avalanche 2500 | N/A | Quantity Included: 1 |
| 2005 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Silverado 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Silverado 1500 HD | N/A | Quantity Included: 1 |
| 2005 | Chevrolet | Silverado 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Silverado 2500 HD | N/A | Quantity Included: 1 |
| 2005 | Chevrolet | Silverado 3500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Suburban 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Suburban 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | Chevrolet | Tahoe | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Sierra 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Sierra 1500 HD | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Sierra 2500 HD | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Sierra 3500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Yukon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Yukon XL 1500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2005 | GMC | Yukon XL 2500 | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2004 | Chevrolet | Colorado | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2004 | GMC | Canyon | N/A | 315 MHz; Replaces sensor 20107; Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
151143791512261820927604550-240691079131921012921012C921018921018C974-007974-008SE10003ATPM42TPM45
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
