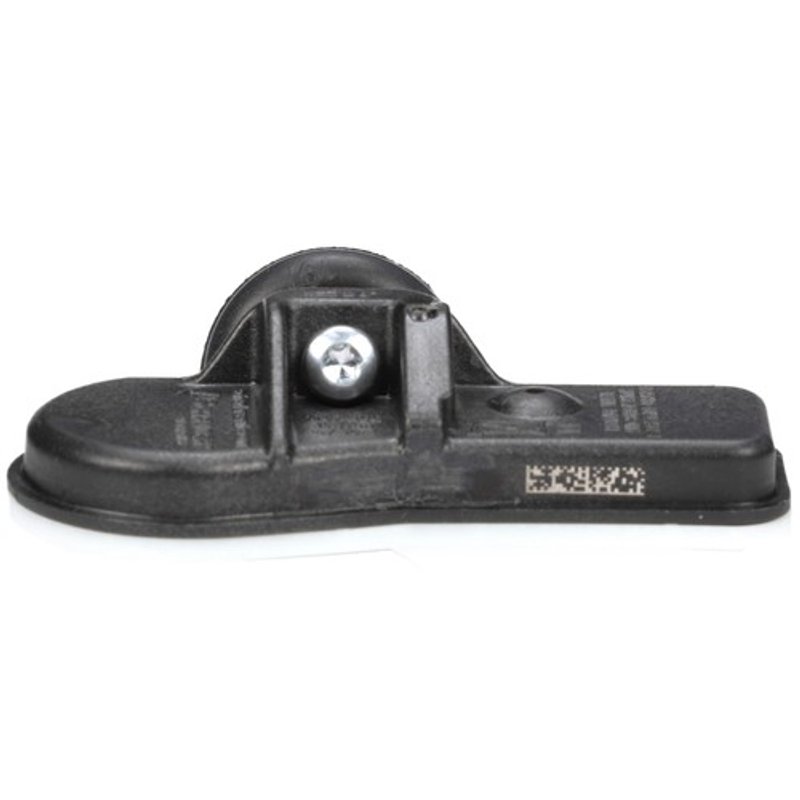

Schrader Valves 20218 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 20218 |
|---|---|
| Material | Rubber |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Snap-in |
| Mounting Hardware Included | Yes |
| Valve Color | Black |
| Frequency | 433 |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Transmitter, ni plated valve core (installed), plastic cap (insta |
| Package Quantity | 1 |
| Fits | Kia · 21 vehicles |
Direct monitoring. Tracks tire pressure in real time for timely alerts.
Snap-in design. Installs securely with included mounting hardware.
Pre-programmed sensor. Ready for setup with no programming required.
Cross-references Anchor 3210, Standard Ignition TPM222 and 52933-B2100 for the same application. See all 4.
Schrader TPMS Sensor for Kia Sedona and Soul
Restore direct tire pressure monitoring with the Schrader Valves 20218 TPMS sensor. This pre-programmed, snap-in sensor uses a battery-powered direct monitoring design to transmit real-time pressure data at 433 MHz for supported Kia applications.
- Direct TPMS sensor with real-time pressure signal transmission
- Pre-programmed, non-programmable activation type
- Snap-in mounting method with rubber valve stem
- 433 MHz frequency for listed Kia applications
- Plastic housing with black valve color
- Includes installed Ni plated valve core, installed plastic cap, and aluminum nut
- Manufacturer warranty: 1 year
Detailed Product Overview
The Schrader Valves 20218 is a direct tire pressure monitoring system sensor built for vehicles that rely on in-wheel pressure data rather than indirect wheel-speed calculations. It is a battery-powered, pre-programmed sensor with a snap-in rubber valve design and black valve stem appearance. The sensor transmits pressure information in real time at 433 MHz and is listed for Kia Sedona and Kia Soul applications that use this frequency and mounting style. This part number, 20218, is also referenced in interchange listings for related OE-style applications.
Compatible With 2014-2021 Kia Sedona, N/A; 2013-2019 Kia Soul, N/A; 2015-2019 Kia Soul EV, N/A; and 2020 Kia Soul EV, N/A. This part cross-references Standard Ignition TPM222 for the same application.
Common TPMS Issues This Sensor Addresses
- TPMS warning light stays illuminated after sensor failure
- Inaccurate or missing tire pressure readings on the dash
- Sensor battery depletion in aging factory TPMS units
- Loss of pressure signal after tire service or wheel replacement
- Need for a direct 433 MHz replacement sensor for listed Kia models
Installation Notes and Tips
Verify the vehicle uses a 433 MHz direct TPMS system before installation. For listed Kia Sedona and Kia Soul applications, follow the specified torque values in the fitment notes: screw torque = 11.5 in-lbs (1.3 Nm) and valve core torque = 3.5 in-lbs (0.4 Nm). Always confirm sensor relearn or initialization requirements for the vehicle after installation.
Quality Assurance
Schrader Valves is a recognized name in tire pressure monitoring components, and this sensor is backed by a 1-year manufacturer warranty. The 20218 part number is built for direct pressure signal transmission and OE-style fitment on the listed Kia applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2020 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2020 | Kia | Soul EV | N/A | Quantity Included: 1 |
| 2019 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2019 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2019 | Kia | Soul EV | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2018 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2018 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2018 | Kia | Soul EV | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2017 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2017 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2017 | Kia | Soul EV | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2016 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2016 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2016 | Kia | Soul EV | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2015 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2015 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2015 | Kia | Soul EV | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2014 | Kia | Sedona | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2014 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
| 2013 | Kia | Soul | N/A | 433MHz; Screw torque = 11.5in-lbs, 1.3Nm; Valve core torque = 3.5in-lbs, 0.4Nm |
